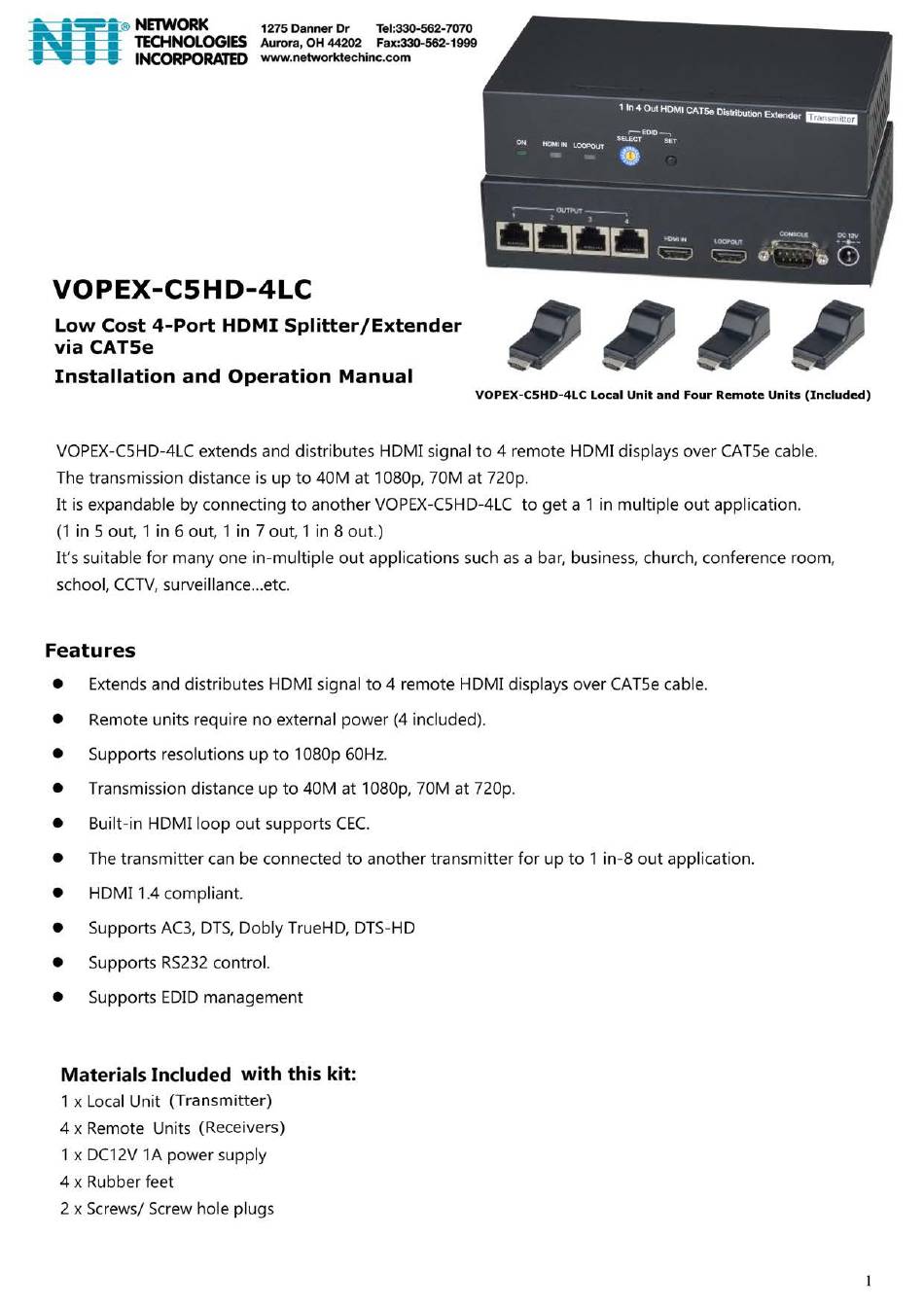

NTI VOPEX-C5HD-4LC Installation And Operation Manual

Low cost 4-port hdmi splitter/extender

Table of Contents

Need help?

Do you have a question about the VOPEX-C5HD-4LC and is the answer not in the manual?

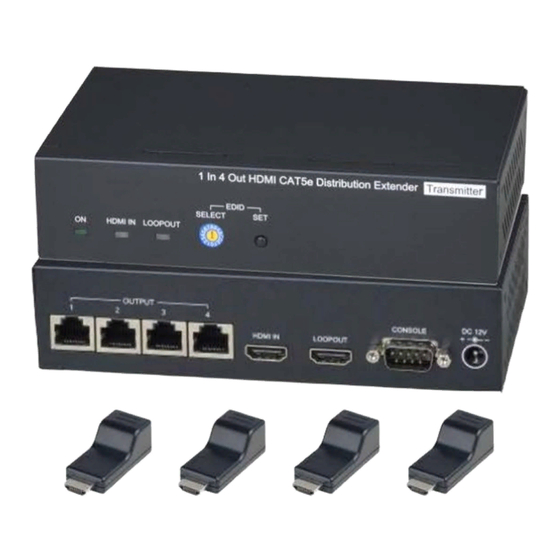

Page 3: Panel View
Panel View: Local Unit (Transmitter) Interface Description Green LED Green LED indicates “ON” status. Blue LED Blue LED indicates “HDMI IN” is connected to an HDMI source. Blue LED Blue LED indicates “LOOPOUT” is connected to an HDMI display. Rotary Switch Select EDID by rotating the switch from 0 to F.
Page 4: Rs232 Command Table
RS232 Command Table Command Description OFF 1(Enter) OUTPUT 1 OFF Note: After a reboot/power cycle, OFF 2(Enter) OUTPUT 2 OFF the VOPEX-C5HD-4LC will OFF 3(Enter) OUTPUT 3 OFF return to default settings. OFF 4(Enter) OUTPUT 4 OFF OFF 5(Enter) HDMI LOOPOUT OFF...
Page 5: Edid Table
1. The wiring must be away from any equipment with electromagnetic waves, i.e.: microwave, radio equipment, fluorescent lamps, high voltage power lines. 2. The VOPEX-C5HD-4LC is not a networking device. Do not connect it to an Ethernet device (i.e. router, hub or switch)
Page 6 MAN366 REV 1/14/20...
