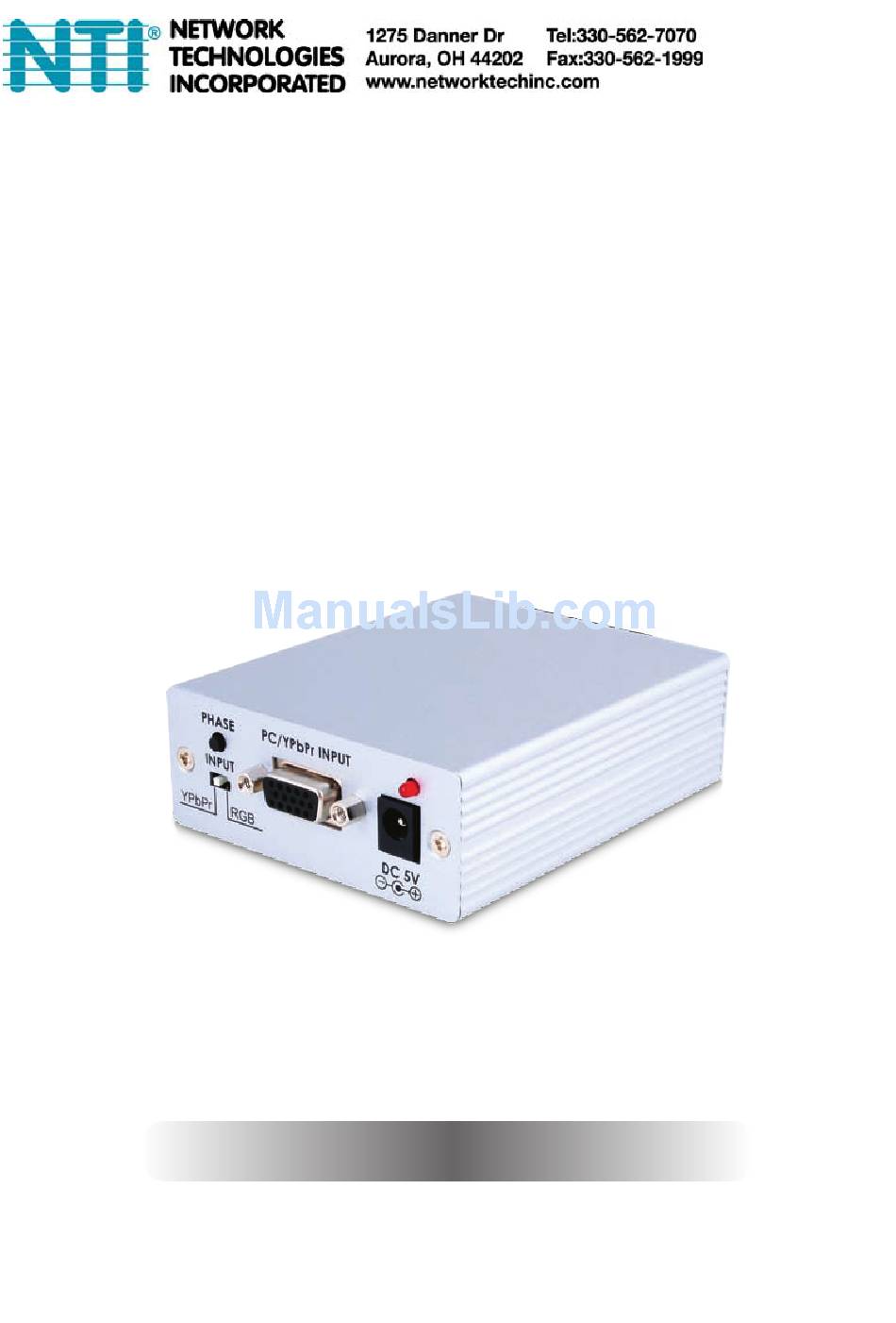

- Page 1 VGACMP-HD PC/YUV to HDMI Format Converter with Audio Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........2 6.3 Resolution Support ......3 7. -
Page 4: Introduction
1. INTRODUCTION The PC/YUV to HDMI Format Converter allows analog PC RGBHV or YUV signals to be converted to digital HDMI format with embedding of analog stereo audio at the same time. Connect your analog RGBHV/YUV output from a PC or Component Video source to the digital HDMI input of the latest HD ready plasma, LCD or DLP displays. -
Page 5: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel PHASE PC/YPbPr INPUT INPUT DC 5V YPbPr PHASE: Adjusts the output image when it appears to be blurry or shaking. YPbPr/RGB INPUT: Switches between RGBHV and YPbPr signal input formats. PC/YPbPr INPUT: Connect the 3 RCA to VGA adaptor cable (included in the package) when the source is component (YUV) or use a 15-pin D-Sub cable when the source is VGA. -
Page 6: Resolution Support
6.3 Resolution Support Input Format YPbPr Resolution 480i/p@60 576i/p@50 720p@50/60 720p@60 1080p@24/25/30 1080i@50/60 1080p@50/60 1080p@60 640×480@60/72/75/85 720×400@70 800×600@56/60/72/75/85 1024×768@60/70/75/85 1152×864@75 1280×720@60 cvt 1280×768@60/60 (RB) 1280×800@60/60 (RB)/75 1280×960@60 ... -
Page 7: Connection Diagram
7. CONNECTION DIAGRAM PC or Notebook DVD Player (with VGA D-Sub (with YPbPr to D-Sub 15-pin Cable) 15-pin Cable) VGA/Component Input Power Supply Front PHASE PC/YPbPr INPUT INPUT YPbPr DC 5V HDMI OUTPUT AUDIO INPUT Rear Analog HDMI Stereo Output Input TV or Monitor... -
Page 8: Specifications
8. SPECIFICATIONS Video Frequency 165 MHz Input Port 1×D-Sub 15-pin, 1×L/R RCA jack Output Port 1×HDMI Input Signal RGB: 0.7, Vp-p 75 ohm, H+V:3~5Vp-p or Y: 1Vp-p 75 ohm, Pv/Pr: 0.7 Vp-p, 75 ohm Audio Input Analog audio L/R ESD Protection Human body model: ±8kV (air-gap discharge) ±4 kV (contact discharge) -
Page 9: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface Liquid Crystal Display Light-Emitting Diode Red Green Blue Component Video YPbPr High-Definition Component Video...
