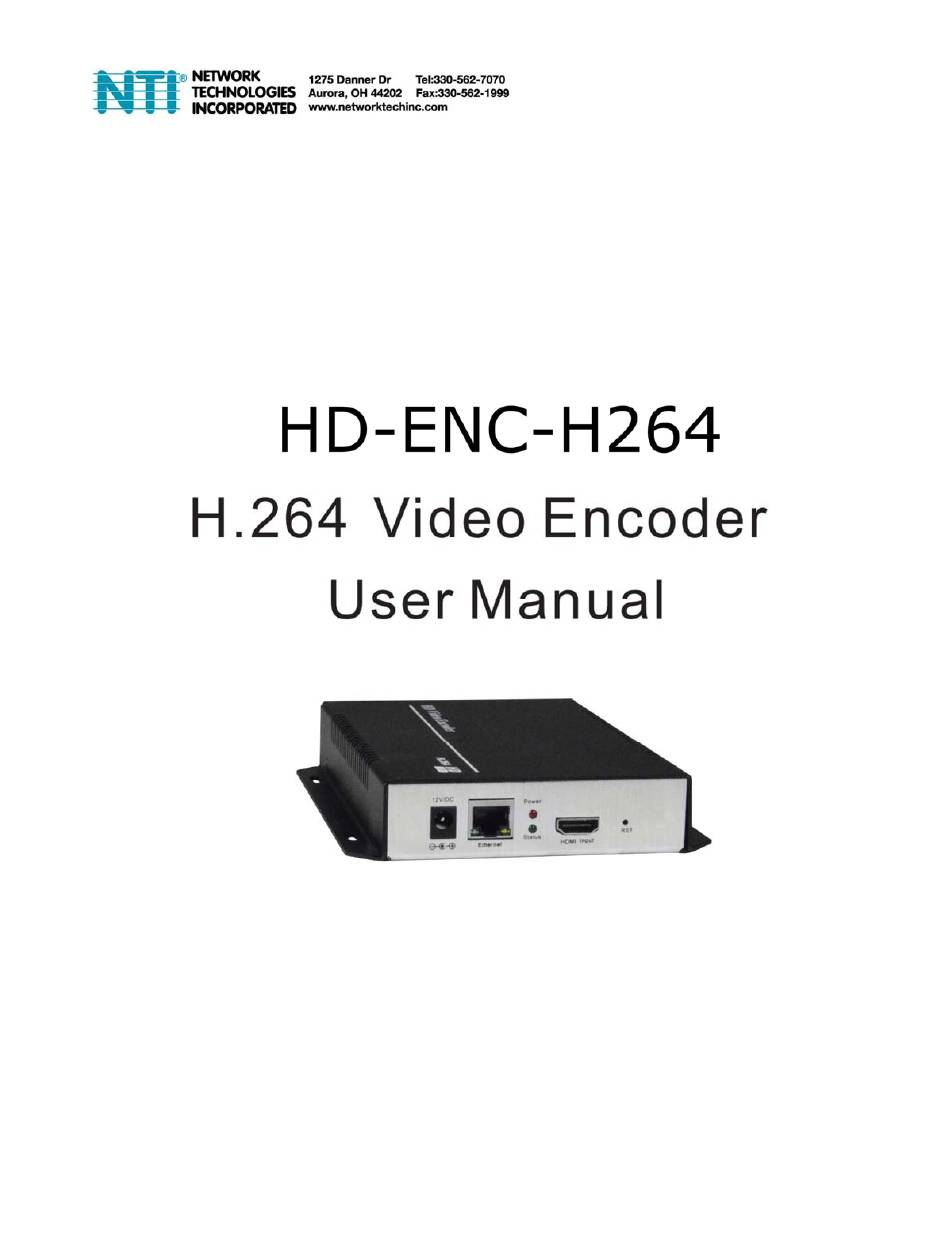

NTI HD-ENC-H264 User Manual

H.264 video encoder

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-ENC-H264 and is the answer not in the manual?

Questions and answers

Summary of Contents for NTI HD-ENC-H264

  • Page 2: Factory Default Settings

    Introduction The H.264 HDMI Video Encoder streams 1080p video from an HDMI video source to a media streaming server (Wowza, Xtreme Codes, Nginx, etc) or online live broadcast platform (YouTube Live, FaceBook Live, IBM Cloud Video (Ustream), etc) over IP in real time. It encodes video using H.264 compression and AAC/MP3 audio. Features: ...
  • Page 3 Settings: Upon Initial Login to the User Interface through your browser, you will be provided with a Status Display providing the following information: Input Status : shows the type of input signals that are attached Running Time: Indicates how long the Encoder has been connected to the Input Source CPU Usage: Typically 25% (if this value is more than 85%, there may be an excess drain on the resources of the source) Input Size: 1920x1080p@60Hz (Default configuration for the source) Collected Video Frames: 65116 (Indicates how many frames of video have been encoded from the source)
  • Page 4 To set the destination, configure the video settings for one or more Mainstream addresses: Field Description Max. is 60fps, but when input is 1080i, fps will be halved (for deinterlacing) Group of pictures (recommend using the same value as the FPS) BITRATE (kbit) Value depends on the video quality needed (suggestions: 1080p@3500kbs, 720p@2800kbs, SD@1500kbs)
  • Page 5: Rtmp Publish Url

    HLS URL /0.m3u8 Select to Enable or Disable FLV URL /0.flv Select to Enable or Disable RTSP URL Select to Enable or Disable Multicast IP 238.0.0.1 Select to Enable or Disable Multicast port Port to use for multicasting video/audio (1-65535) RTMP PUBLISH URL Address of the real time media player to broadcast encoded video to.
  • Page 6 Upgrade Firmware: If new firmware becomes available, we will provide a link to it on our website. As of this publication, no new firmware is available. If new firmware is available, browse for it, select the file, click "Upload", when you get the message "Upload Success", click "Reboot".
  • Page 9: Specifications

    SPECIFICATIONS Video  One female HDMI-A port for source connection.  Supported resolutions: 720p/1080i/1080p @50/60Hz and below including: 1920x1080 720x540 608x448 480x272 320x256 1680x1056 720x480 544x480 480x270 320x240 1280x720 720x404 480x480 400x320 320x180 1024x576 704x576 480x384 400x224 240x180 850x480 640x480 480x360 352x480 176x144...
