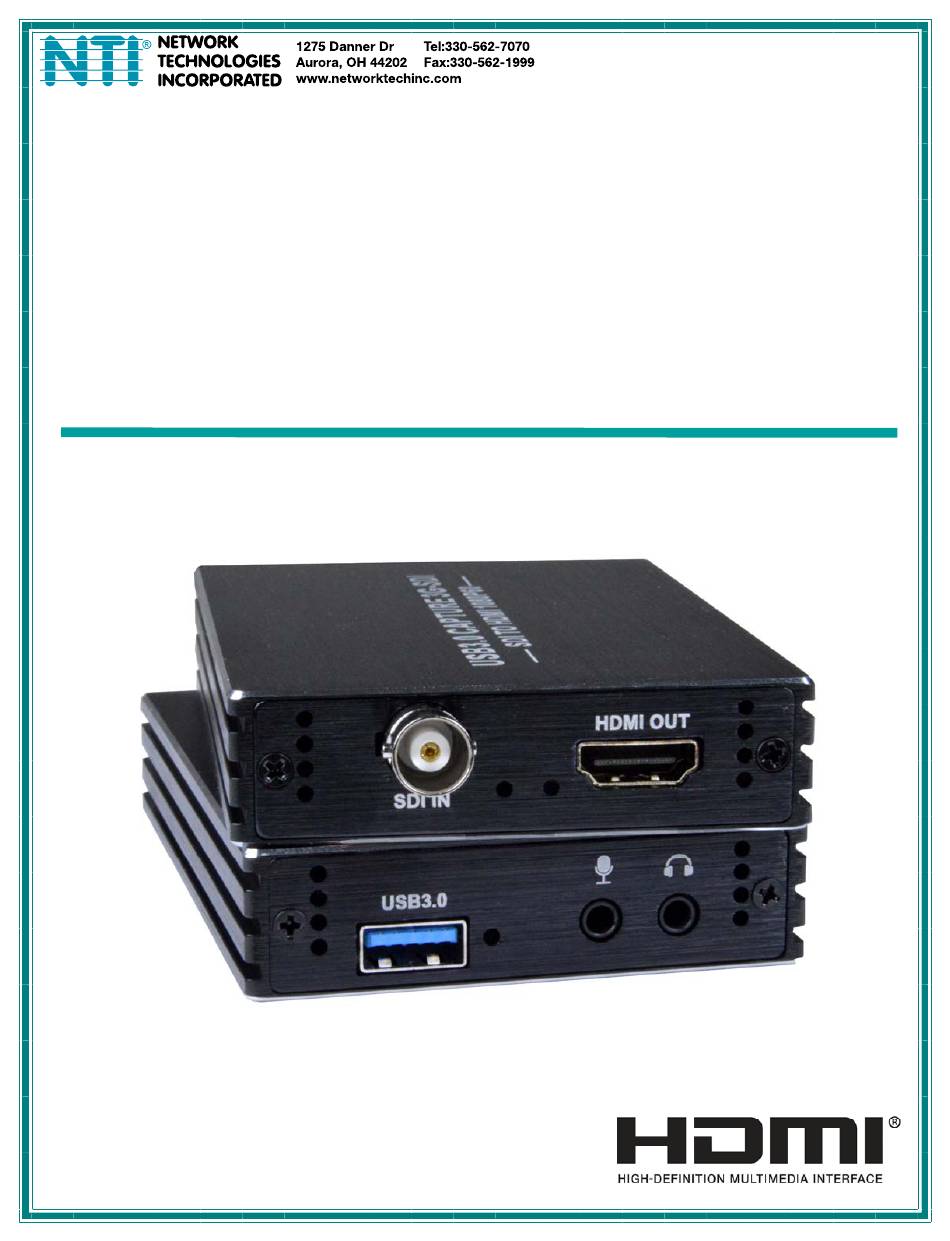

- Page 1 3GSDI-USB3-CPTR-HDO 3G-SDI to USB 3.0 Video Capture with HDMI Loopout Installation and Operation Manual (Front and Rear View of 3GSDI-USB3-CPTR-HDO) MAN0421 Rev Date 6/14/2022...
- Page 2 TRADEMARK The NTI logo is a registered trademark of Network Technologies Inc in the U.S. and other countries. All other brand names and trademarks or registered trademarks are the property of their respective owners. COPYRIGHT Copyright © 2022 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................2 Connectors ..................................3 Installation ..................................4 Operation..................................5 Technical Specifications..............................5 Warranty Information............................... 6... -
Page 4: Introduction
NTI 3G-SDI to USB 3.0 Video Capture INTRODUCTION The 3G-SDI to USB 3.0 Video Capture device is used to record or stream an SD/HD/3G-SDI signal via USB 3.0 at up to 350 MB/s. It features an HDMI loop output for local display, as well as separate 3.5mm stereo audio input/output connectors. -
Page 5: Materials
NTI 3G-SDI to USB 3.0 Video Capture MATERIALS Materials supplied with this kit NTI 3GSDI-USB3-CPTR-HDO USB 3.0 Video Capture Recorder with HDMI Output 1 x USB 3.0 Type A male to Type A male cable – 3.48 ft (1.1 m) ... -
Page 6: Connectors
NTI 3G-SDI to USB 3.0 Video Capture CONNECTORS LABEL CONNECTOR DESCRIPTION SDI IN BNC Connector for connection of incoming SDI video signal HDMI OUT HDMI female connector for connection of HDMI display device USB 3.0 USB Type A Female for connection of recording device MICROPHONE 3.5mm Jack... -
Page 7: Installation
5. Connect a computer to the USB 3.0 port using a USB 3.0 rated cable and a computer with a USB 3.0 rated connection port. Using a USB 3.0 rated cable and port is important. The 3GSDI-USB3-CPTR-HDO recorder is compatible with USB 2.0 computers, but we do not recommend to use USB 2.0, because the video quality and fluency will deteriorate. -
Page 8: Operation
NTI 3G-SDI to USB 3.0 Video Capture OPERATION The 3GSDI-USB3-CPTR-HDO Video Capture device is based on the UVC (USB video class) and UAC (USB audio class) standard. No additional drivers have to be installed. After installation in the operating system, the relevant video and audio devices will be added. -
Page 9: Warranty Information
NTI 3G-SDI to USB 3.0 Video Capture NTI HDMI Cable Maximum Length Chart: Cables Available Max. Length To support 1920x1080@60Hz: HD-xx-MM 50 ft DVI-HD-xM-MM (DVI Monitor) Audio Cable (Input / Output): Cable Available Max. Length SA-xx-MM 50 ft WARRANTY INFORMATION The warranty period on this product (parts and labor) is two (2) years from the date of purchase.
