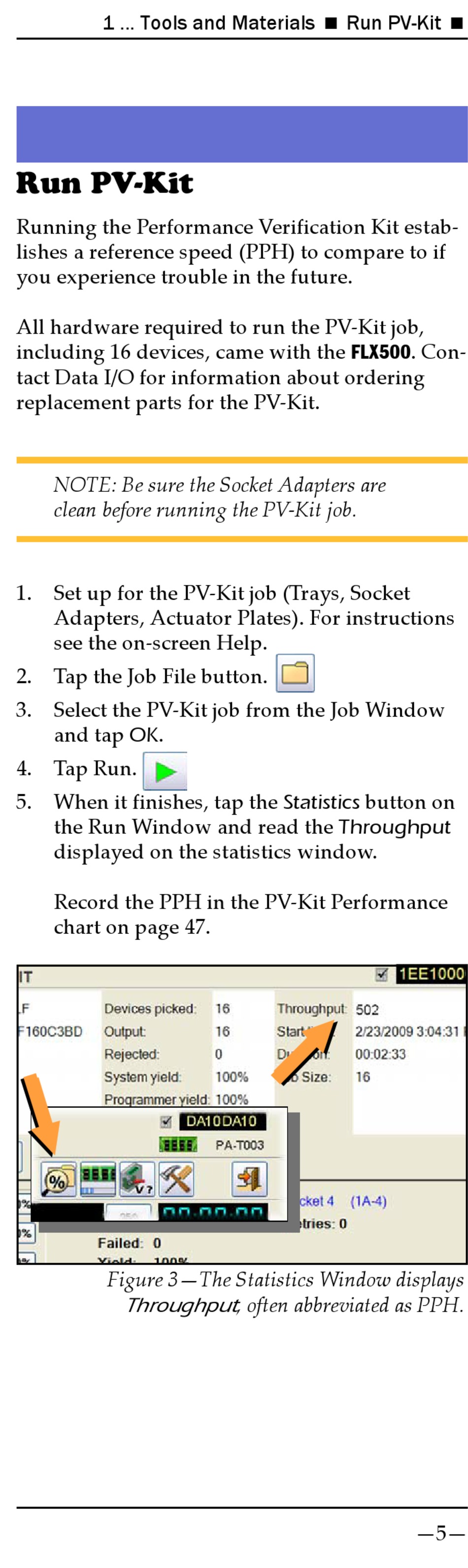

Run PV-Kit

Running the Performance Verification Kit estab-
lishes a reference speed (PPH) to compare to if
you experience trouble in the future.
All hardware required to run the PV-Kit job,
including 16 devices, came with the FLX500. Con-
tact Data I/O for information about ordering
replacement parts for the PV-Kit.
NOTE: Be sure the Socket Adapters are
clean before running the PV-Kit job.
1. Set up for the PV-Kit job (Trays, Socket
Adapters, Actuator Plates). For instructions
see the on-screen Help.
2. Tap the Job File button.
3. Select the PV-Kit job from the Job Window
and tap OK.
4. Tap Run.
When it finishes, tap the Statistics button on
5.
the Run Window and read the Throughput
displayed on the statistics window.
Record the PPH in the PV-Kit Performance
chart on page 47.
Figure 3—The Statistics Window displays
Throughput
, often abbreviated as PPH.
