Data I/O FLX500 Maintaining page 22

 Data I/O  FLX500  Chptr 2

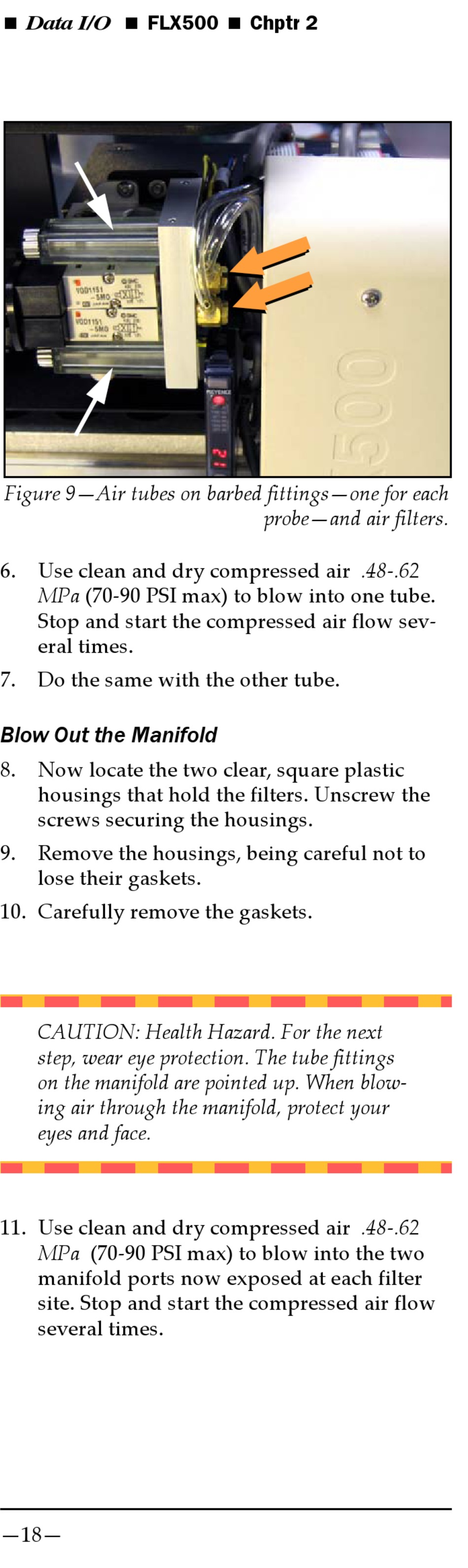

Figure 9—Air tubes on barbed fittings—one for each
6. Use clean and dry compressed air .48-.62
MPa (70-90 PSI max) to blow into one tube.
Stop and start the compressed air flow sev-
eral times.
7. Do the same with the other tube.
Blow Out the Manifold
8. Now locate the two clear, square plastic
housings that hold the filters. Unscrew the
screws securing the housings.
9. Remove the housings, being careful not to
lose their gaskets.
10. Carefully remove the gaskets.
CAUTION: Health Hazard. For the next
step, wear eye protection. The tube fittings
on the manifold are pointed up. When blow-
ing air through the manifold, protect your
eyes and face.
11. Use clean and dry compressed air .48-.62
MPa (70-90 PSI max) to blow into the two
manifold ports now exposed at each filter
site. Stop and start the compressed air flow
several times.
—18—
probe—and air filters.
