Data I/O FLX500 Chptr 3

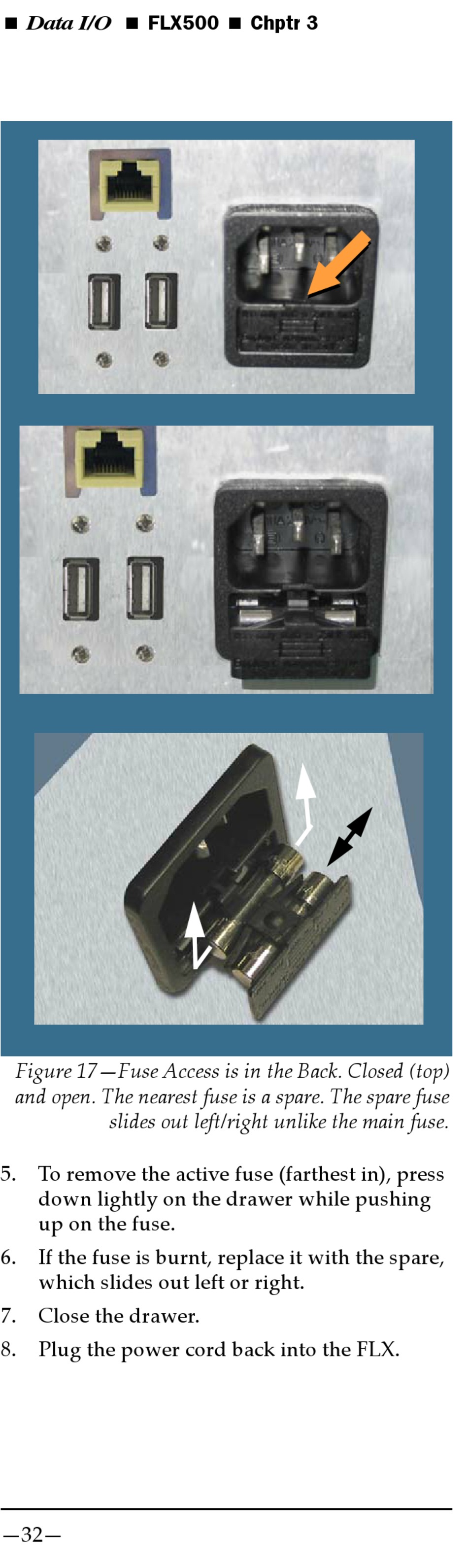

Figure 17—Fuse Access is in the Back. Closed (top)
and open. The nearest fuse is a spare. The spare fuse
5.
To remove the active fuse (farthest in), press
down lightly on the drawer while pushing
up on the fuse.
6.
If the fuse is burnt, replace it with the spare,
which slides out left or right.
7.
Close the drawer.
8.
Plug the power cord back into the FLX.
—32—
slides out left/right unlike the main fuse.
