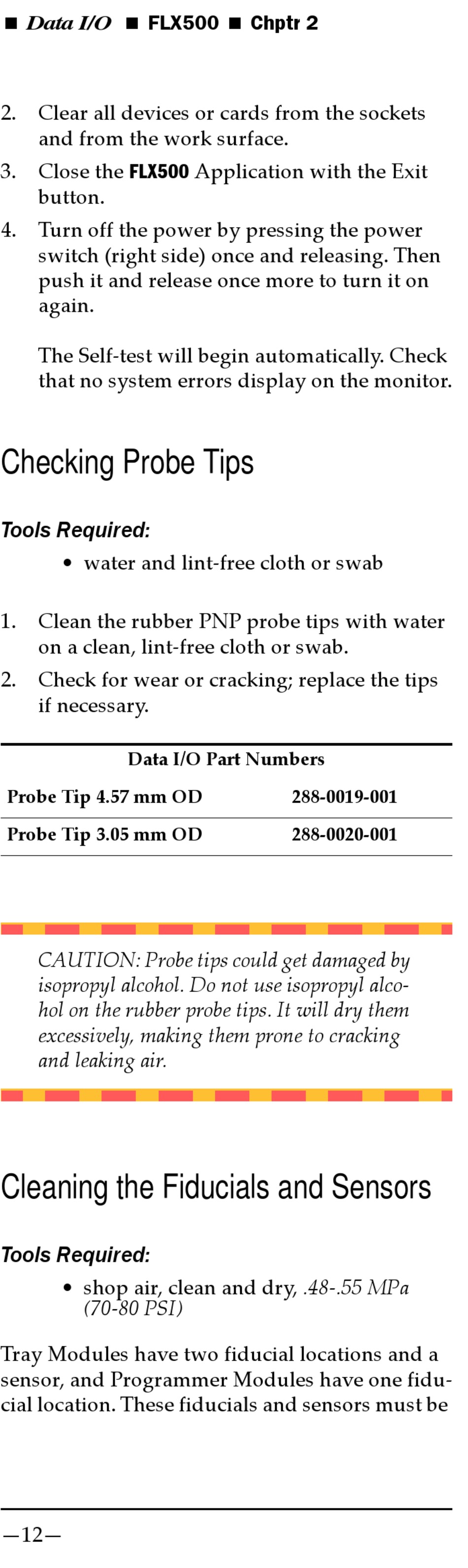

 Data I/O  FLX500  Chptr 2
2. Clear all devices or cards from the sockets
and from the work surface.
Close the FLX500 Application with the Exit
3.
button.
4. Turn off the power by pressing the power
switch (right side) once and releasing. Then
push it and release once more to turn it on
again.
The Self-test will begin automatically. Check
that no system errors display on the monitor.
Checking Probe Tips
Tools Required:
• water and lint-free cloth or swab
1. Clean the rubber PNP probe tips with water
on a clean, lint-free cloth or swab.
2. Check for wear or cracking; replace the tips
if necessary.
Probe Tip 4.57 mm OD
Probe Tip 3.05 mm OD
CAUTION: Probe tips could get damaged by
isopropyl alcohol. Do not use isopropyl alco-
hol on the rubber probe tips. It will dry them
excessively, making them prone to cracking
and leaking air.
Cleaning the Fiducials and Sensors
Tools Required:
• shop air, clean and dry, .48-.55 MPa
(70-80 PSI)
Tray Modules have two fiducial locations and a
sensor, and Programmer Modules have one fidu-
cial location. These fiducials and sensors must be
—12—
Data I/O Part Numbers
288-0019-001
288-0020-001
