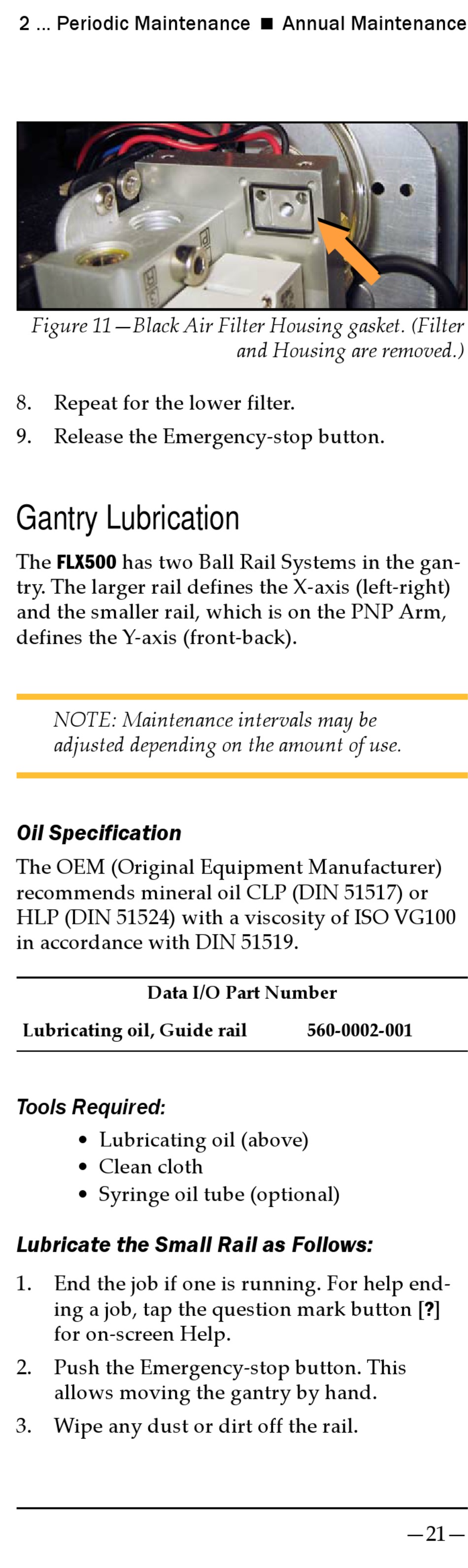

Data I/O FLX500 Maintaining page 25

2 ... Periodic Maintenance  Annual Maintenance
Figure 11—Black Air Filter Housing gasket. (Filter
8. Repeat for the lower filter.
9. Release the Emergency-stop button.
Gantry Lubrication
The FLX500 has two Ball Rail Systems in the gan-
try. The larger rail defines the X-axis (left-right)
and the smaller rail, which is on the PNP Arm,
defines the Y-axis (front-back).
NOTE: Maintenance intervals may be
adjusted depending on the amount of use.
Oil Specification
The OEM (Original Equipment Manufacturer)
recommends mineral oil CLP (DIN 51517) or
HLP (DIN 51524) with a viscosity of ISO VG100
in accordance with DIN 51519.
Lubricating oil, Guide rail
Tools Required:
• Lubricating oil (above)
• Clean cloth
• Syringe oil tube (optional)
Lubricate the Small Rail as Follows:
1. End the job if one is running. For help end-
ing a job, tap the question mark button [?]
for on-screen Help.
2. Push the Emergency-stop button. This
allows moving the gantry by hand.
3. Wipe any dust or dirt off the rail.
Data I/O Part Number
and Housing are removed.)
560-0002-001
—21—
