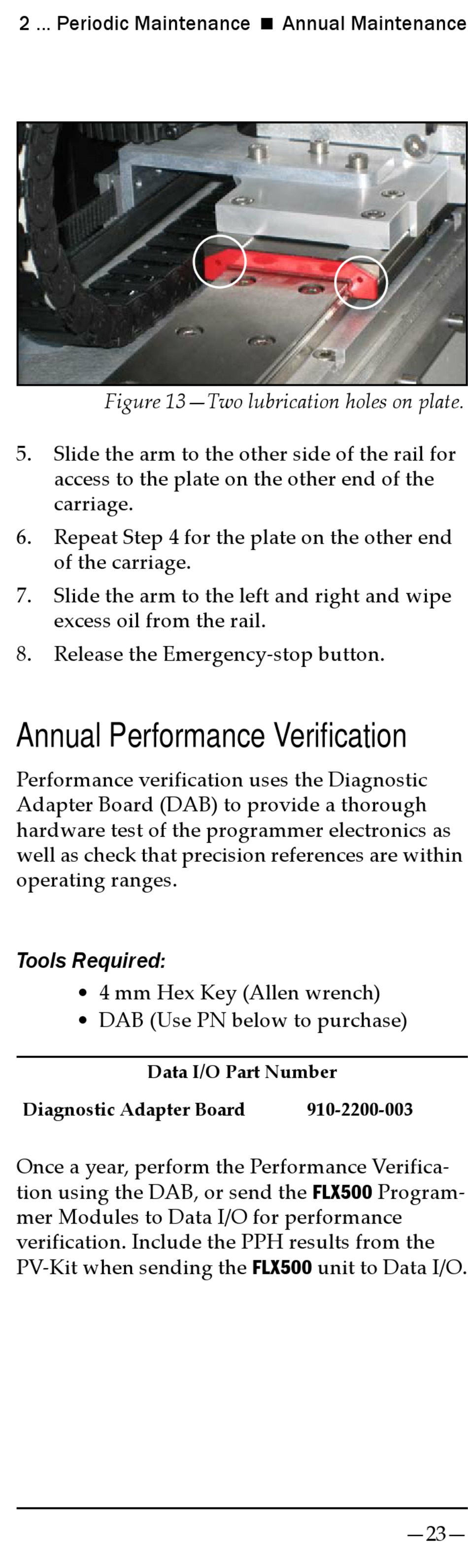

2 ... Periodic Maintenance  Annual Maintenance
5. Slide the arm to the other side of the rail for
access to the plate on the other end of the
carriage.
6. Repeat Step 4 for the plate on the other end
of the carriage.
7. Slide the arm to the left and right and wipe
excess oil from the rail.
8. Release the Emergency-stop button.
Annual Performance Verification
Performance verification uses the Diagnostic
Adapter Board (DAB) to provide a thorough
hardware test of the programmer electronics as
well as check that precision references are within
operating ranges.
Tools Required:
• 4 mm Hex Key (Allen wrench)
• DAB (Use PN below to purchase)
Diagnostic Adapter Board
Once a year, perform the Performance Verifica-
tion using the DAB, or send the FLX500 Program-
mer Modules to Data I/O for performance
verification. Include the PPH results from the
PV-Kit when sending the FLX500 unit to Data I/O.
Figure 13—Two lubrication holes on plate.
Data I/O Part Number
910-2200-003
—23—
