On early models using PS/2 ports, the system
power must be recycled after connecting a key-
board and mouse.
Connecting a keyboard and mouse depends on
your model. See the configuration in Figure 1
that matches your model.
Connecting a PS/2 Keyboard and
Mouse:
1. End a job if one is running.
Exit the FLX500 application–
2.
3. Plug in the keyboard and mouse according
to the label. See Figure 1.
4. Switch off the power by pressing the power
switch (right side) once and releasing. Then
push it and release once more to turn the
power back on again.
A.
B.

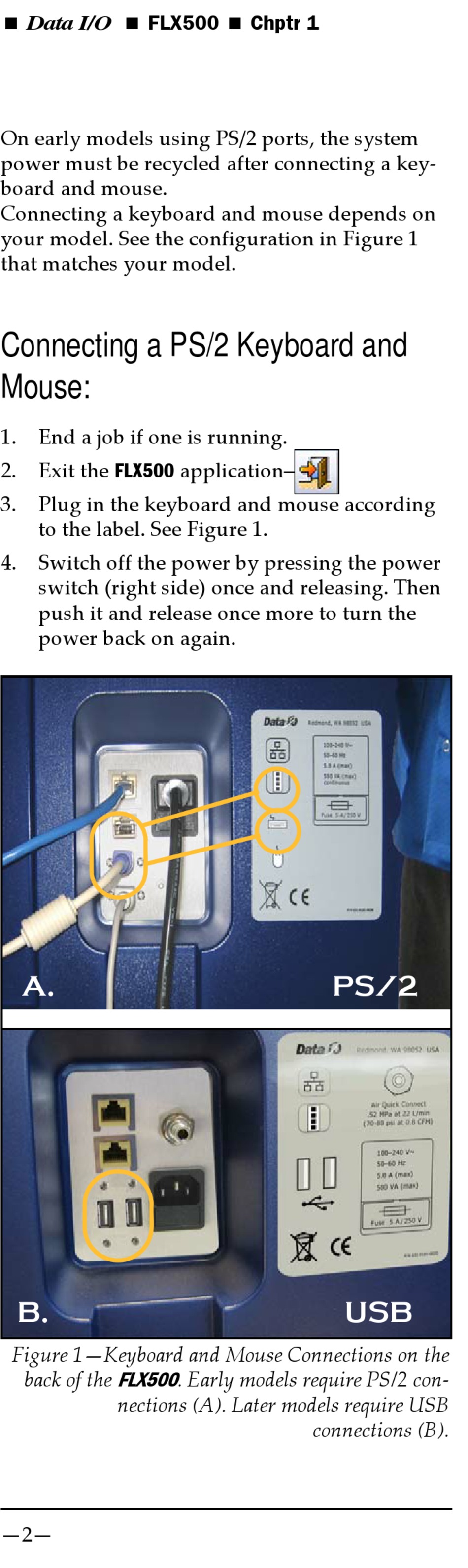

Figure 1—Keyboard and Mouse Connections on the
back of the
—2—
FLX500
. Early models require PS/2 con-
nections (A). Later models require USB
PS/2
USB
connections (B).
