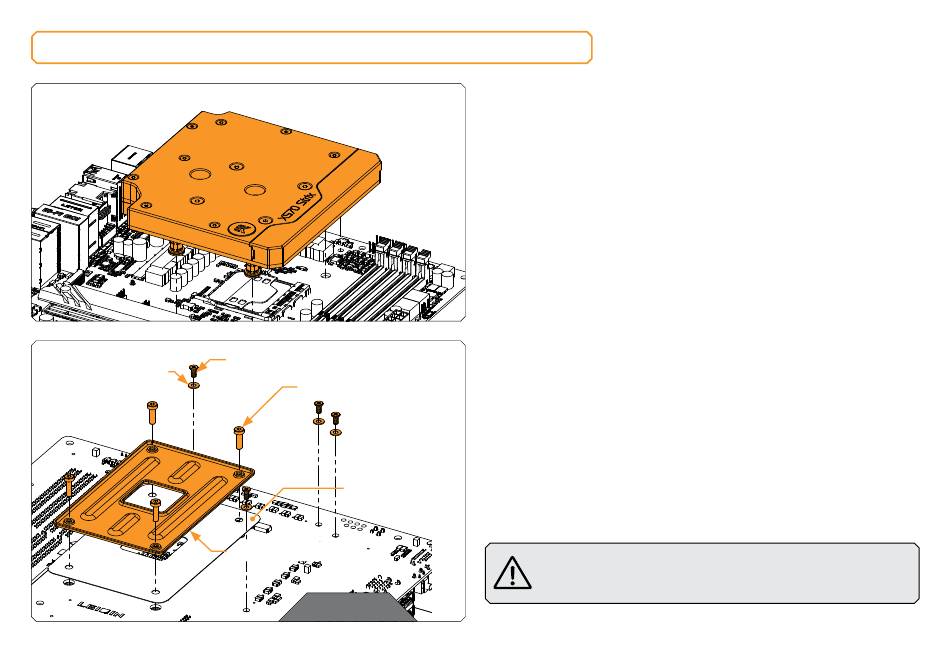

PLACING THE BLOCK ON TO MOTHERBOARD

PVC washer
M2.5x5 AX1 Screw
M3X10 DIN7984 Screw
Backplate
Insulator
AM4 Backplate
STEP 1
Place the EK-Quantum Momentum ROG Strix X570-E Monoblock
series water block to the motherboard or vice versa (as shown on the
photo). Make sure that mounting holes are aligned.

ATTACHING BLOCK ON THE MOTHERBOARD

STEP 1
Prior to fastening the screws please make sure the mounting holes
on the motherboard's circuit board are aligned with the water block.
Mosfet part: Use four(4) M2.5X5 AX1 screws with PVC washers.
Tighten the screws evenly. Do not use excessive force when
tightening the screws.
CPU part: Use four (4) M3X10 DIN 7984 with screws. Tighten the
screws using enclosed 2mm Allen Key.
Do not forget install the Backplate Insulator and AM4
Backplate (as shown on the photo).
- 7 -
