Applying Thermal Compound; Cutting Thermal Pads; Placing Thermal Pads On The Motherboard - EK-Quantum Monoblock Series User Manual

Thermal Pad F – 1.0 mm
120

APPLYING THERMAL COMPOUND

Apply thermal compound on CPU heat spreader (IHS) with enclosed
EK-TIM Ectotherm thermal grease. The quantity of about two rice
grains is just about right. There is no need to cover the whole IHS.
16
Applying too much thermal grease will have negative impact on the
cooling performance!

CUTTING THERMAL PADS

Your block comes with thermal pads which needs to be trimmed
in order to fit the voltage regulation area (MOSFET) on the
motherboard's circuit board.
Thermal Pad F 1.0mm
1. Thermal PAD F 1,0mm - (120x16mm) EAN: 3830046996732
PLACING THERMAL PADS ON THE
MOTHERBOARD

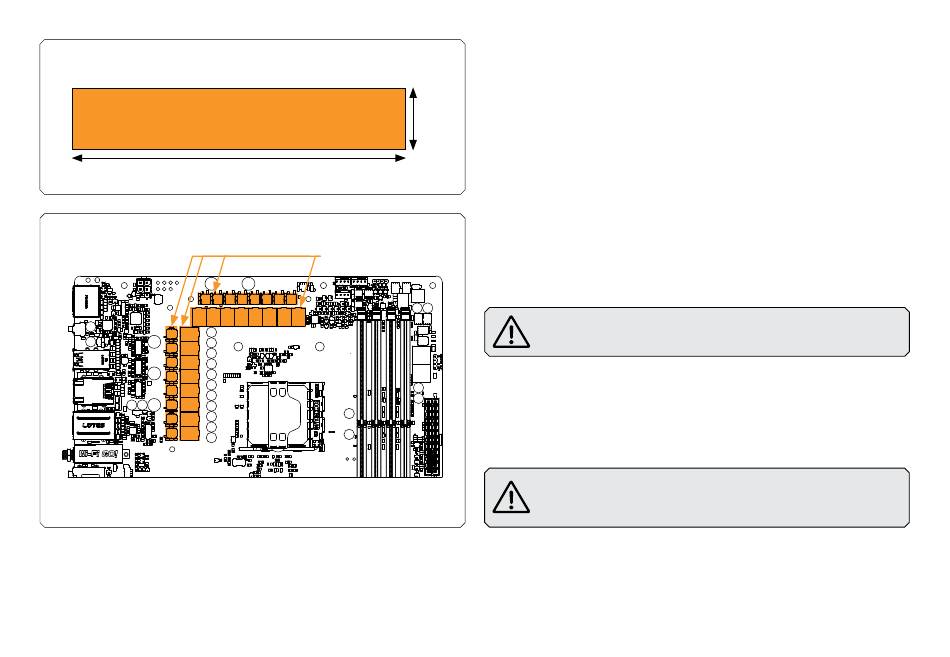

Place thermal pads on PCB as shown on the picture.
- 6 -
WARNING: Dimensions on pictures below are scaled.
Please remove the protective foil from both sides of the
thermal pads prior to installation!
