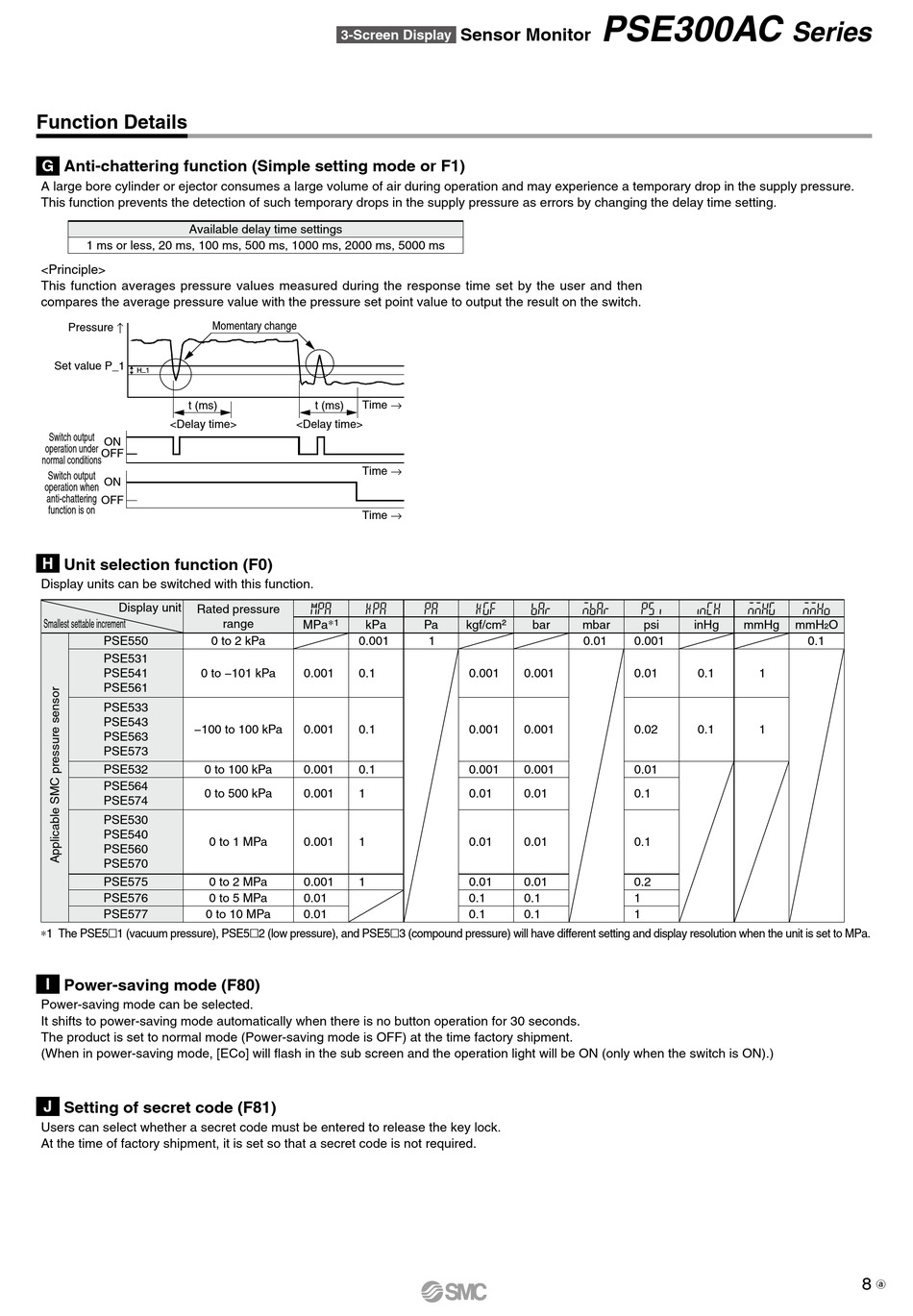

SMC Networks PSE57 Series Quick Start Manual page 9

Function Details
G Anti-chattering function (Simple setting mode or F1)
A large bore cylinder or ejector consumes a large volume of air during operation and may experience a temporary drop in the supply pressure.
This function prevents the detection of such temporary drops in the supply pressure as errors by changing the delay time setting.
Available delay time settings
1 ms or less, 20 ms, 100 ms, 500 ms, 1000 ms, 2000 ms, 5000 ms
<Principle>
This function averages pressure values measured during the response time set by the user and then
compares the average pressure value with the pressure set point value to output the result on the switch.
Pressure ↑
Set value P_1
H _ 1
t (ms)
<Delay time>
Switch output
ON
operation under
OFF
normal conditions
Switch output
ON
operation when
anti-chattering
OFF
function is on
H Unit selection function (F0)
Display units can be switched with this function.
Display unit
Rated pressure
Smallest settable increment
PSE550
PSE531
PSE541 0 to −101 kPa
PSE561
PSE533
PSE543
−100 to 100 kPa
PSE563
PSE573
PSE532 0 to 100 kPa
PSE564
0 to 500 kPa
PSE574
PSE530
PSE540
PSE560
PSE570
PSE575
PSE576
PSE577 0 to 10 MPa
*1 The PSE51 (vacuum pressure), PSE52 (low pressure), and PSE53 (compound pressure) will have different setting and display resolution when the unit is set to MPa.
I Power-saving mode (F80)
Power-saving mode can be selected.
It shifts to power-saving mode automatically when there is no button operation for 30 seconds.
The product is set to normal mode (Power-saving mode is OFF) at the time factory shipment.
(When in power-saving mode, [ECo] will flash in the sub screen and the operation light will be ON (only when the switch is ON).)
J
Setting of secret code (F81)
Users can select whether a secret code must be entered to release the key lock.
At the time of factory shipment, it is set so that a secret code is not required.
3-Screen Display
Momentary change
Time →
t (ms)
<Delay time>
Time →
Time →
MPa *
range 1
kPa
0 to 2 kPa 0.001
0.001 0.1
0.001 0.1
0.001 0.1
0.001 1
0 to 1 MPa 0.001 1
0 to 2 MPa 0.001 1
0 to 5 MPa 0.01
0.01
Sensor Monitor
2
Pa kgf/cm bar mbar
1 0.01
0.001 0.001
0.001 0.001
0.001 0.001
0.01 0.01
0.01 0.01
0.01 0.01
0.1 0.1
0.1 0.1
PSE300AC
psi inHg mmHg
0.001
0.01 0.1 1
0.02 0.1 1
0.01
0.1
0.1
0.2
1
1
Series
mmH O
2
0.1
8
a
