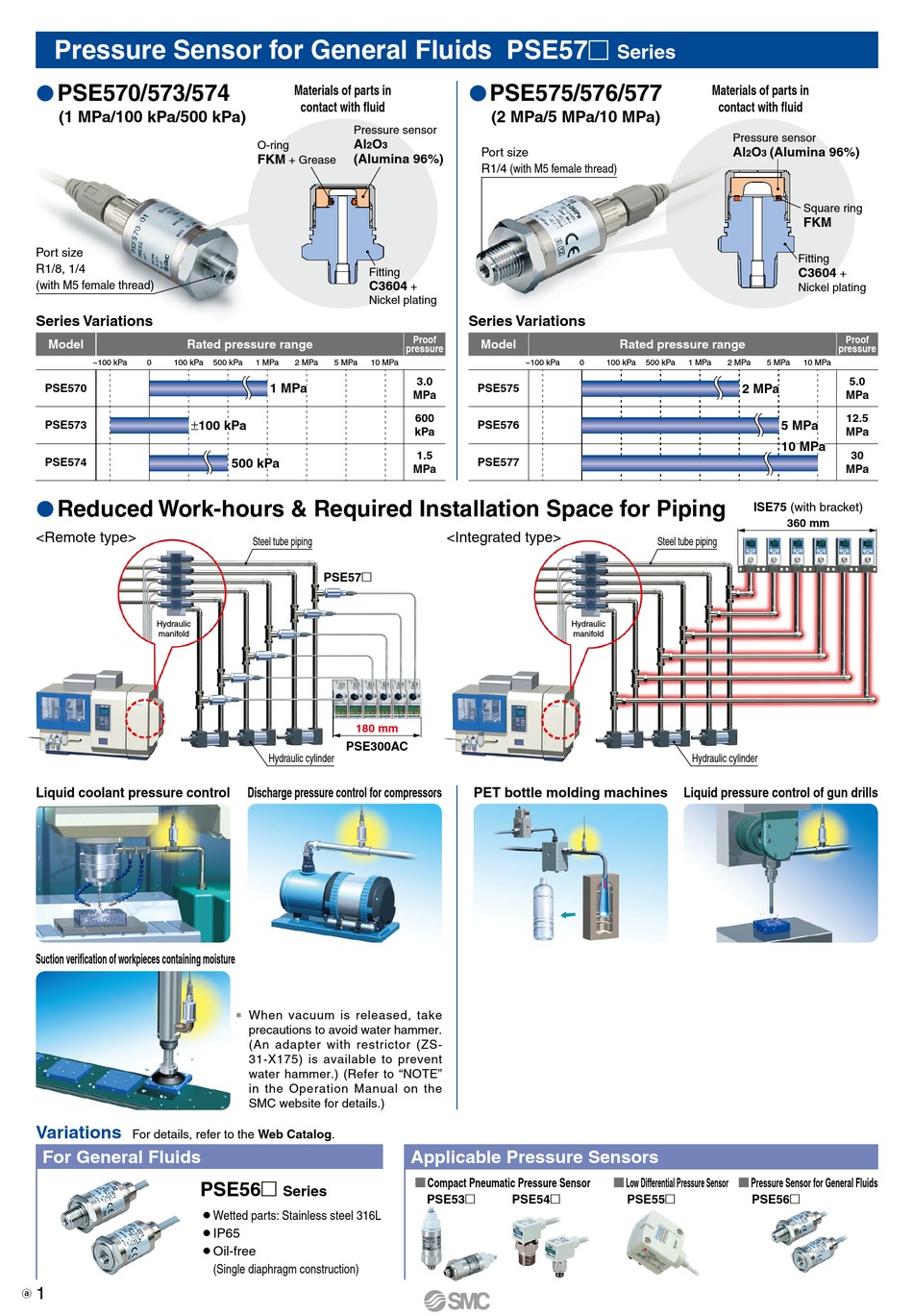

Pressure Sensor for General Fluids PSE57 
 PSE570/573/574
(1 MPa/100 kPa/500 kPa)
Port size
R1/8, 1/4
(with M5 female thread)
Series Variations
Model Rated pressure range
−100 kPa 0 100 kPa
PSE570
±100 kPa
PSE573
PSE574

Reduced Work-hours & Required Installation Space for Piping
<Remote type>
Hydraulic
manifold
Liquid coolant pressure control
Suction verification of workpieces containing moisture
Variations
For details, refer to the Web Catalog.
For General Fluids
1
a
Materials of parts in
contact with fluid
Pressure sensor
Al O
O-ring
2
(Alumina 96%)
FKM
+ Grease
Fitting
C3604
Nickel plating
500 kPa 1 MPa 2 MPa 5 MPa 10 MPa
1 MPa
500 kPa
Steel tube piping
PSE57
180 mm
PSE300AC
Hydraulic cylinder
Discharge pressure control for compressors
* When vacuum is released, take
precautions to avoid water hammer.
(An adapter with restrictor (ZS-
31-X175) is available to prevent
water hammer.) (Refer to "NOTE"
in the Operation Manual on the
SMC website for details.)
PSE56
Series
¡Wetted parts: Stainless steel 316L
¡IP65
¡Oil-free
(Single diaphragm construction)
 PSE575/576/577
(2 MPa/5 MPa/10 MPa)
3
Port size
R1/4 (with M5 female thread)
+
Series Variations
Proof
Model
pressure
−100 kPa
3.0
PSE575
MPa
600
PSE576
kPa
1.5
PSE577
MPa
<Integrated type>
PET bottle molding machines
Applicable Pressure Sensors

Compact Pneumatic Pressure Sensor
PSE53 PSE54
Series
Materials of parts in
contact with fluid
Pressure sensor
Al
Rated pressure range
0 100 kPa 500 kPa 1 MPa 2 MPa
2 MPa
Steel tube piping
Hydraulic
manifold
Hydraulic cylinder
Liquid pressure control of gun drills
 
Low Differential Pressure Sensor
PSE55
O (Alumina 96%)
2 3
Square ring
FKM
Fitting
C3604
+
Nickel plating
Proof
pressure
5 MPa 10 MPa
5.0
MPa
12.5
5 MPa
MPa
10 MPa
30
MPa
ISE75 (with bracket)
360 mm
Pressure Sensor for General Fluids
PSE56
