PLC
Lead wire and M12 connector
ZS-37-A (Straight 3 m)
PSE57 series
Lead wire and M12 connector + Assembly-type connector
Set part no.
ZS-37-A-X448
Straight 3 m
ZS-37-B-X449
Right angle 3 m
9
A

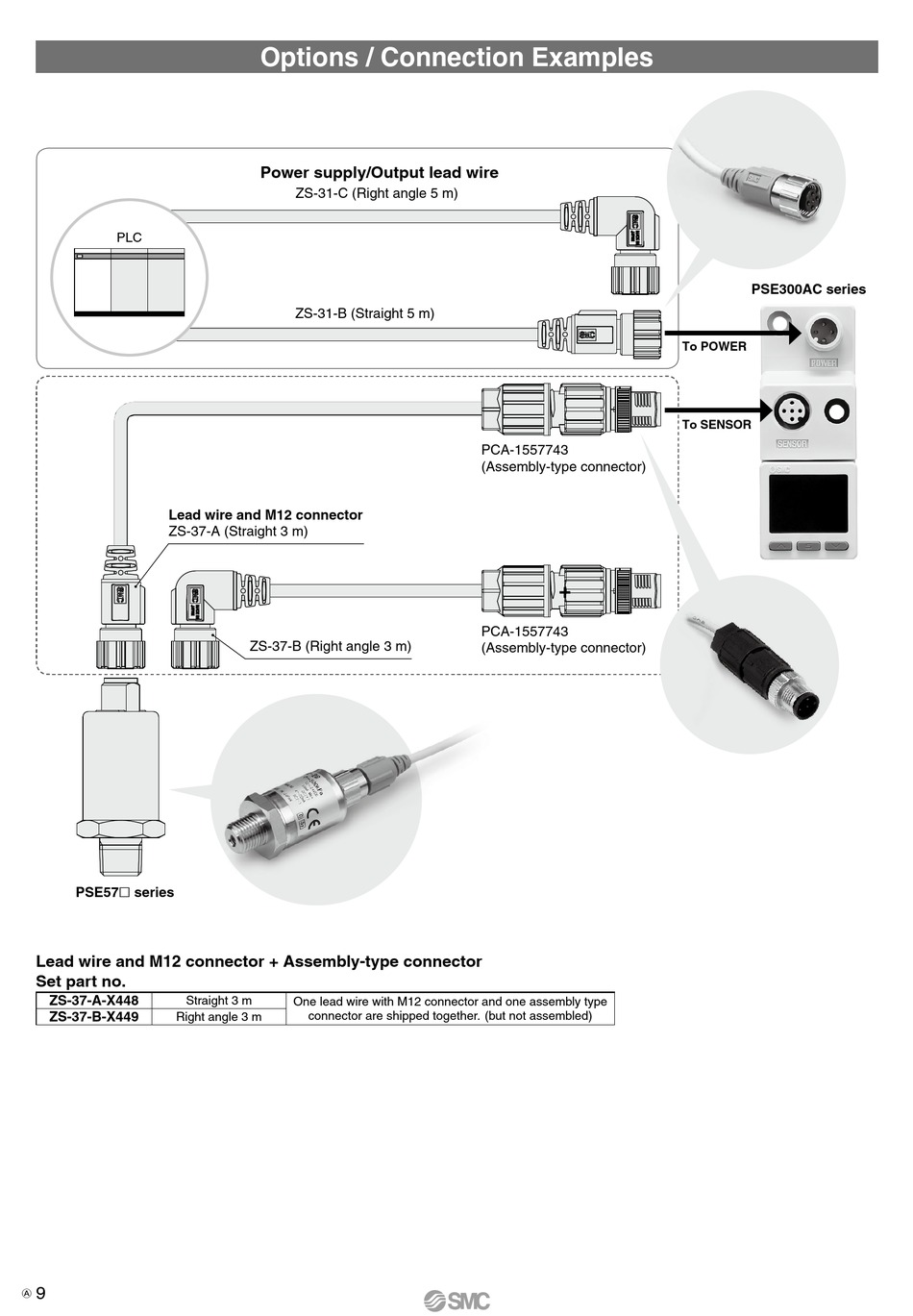

Options / Connection Examples
Power supply/Output lead wire
ZS-31-C (Right angle 5 m)
ZS-31-B (Straight 5 m)
ZS-37-B (Right angle 3 m)
One lead wire with M12 connector and one assembly type
connector are shipped together. (but not assembled)
PCA-1557743
(Assembly-type connector)
+
PCA-1557743
(Assembly-type connector)
PSE300AC series
To POWER
To SENSOR
