2. Modified Chapters

5.2.5 R-PSM pre-charge card

Starting from power size ≥ 160kW, the R-PSM card is used to control the pre-charge circuit on the power supply module.
When the pre-charge circuit is connected to the mains (terminals L1 – L2 – L3), the R-PSM regulation card generates the
internal power supplies needed for operation. Therefore, additional external power supplies are unnecessary.
If an UNDERVOLTAGE alarm is detected when the SCR bridge is enabled, the pre-charge ramp can be repeated only after
300ms, the time needed for the phase loss circuit to confirm that normal mains conditions have been restored.

5.2.5.1 Input/Output R-PSM Regulation card

The switches and jumpers on the R-PSM card are factory-set. If the module is used according to its standard power supply
characteristics:
ADV200-...-4 = 400VAC / 50Hz
ADV200-...-6 = 690VAC / 50Hz
the settings should not be changed.
In case of non-standard power supply, see the configuration tables shown further below.
Addendum to the ADV200 / ADV200WA QS Instruction books

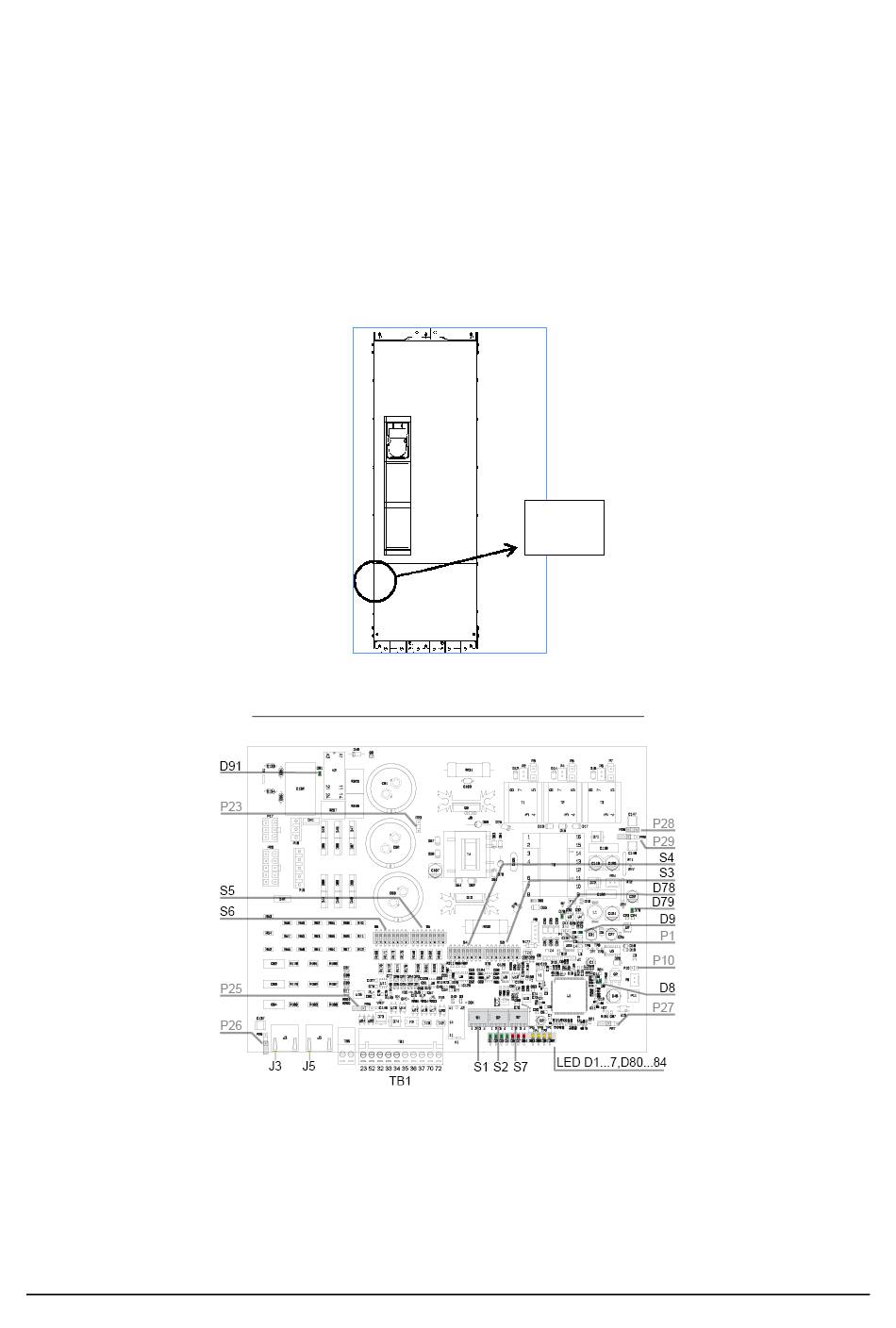

Figure 5.2.5.1: Position of Switches, LEDs and Jumpers on R-PSM card
R-PSM
card
