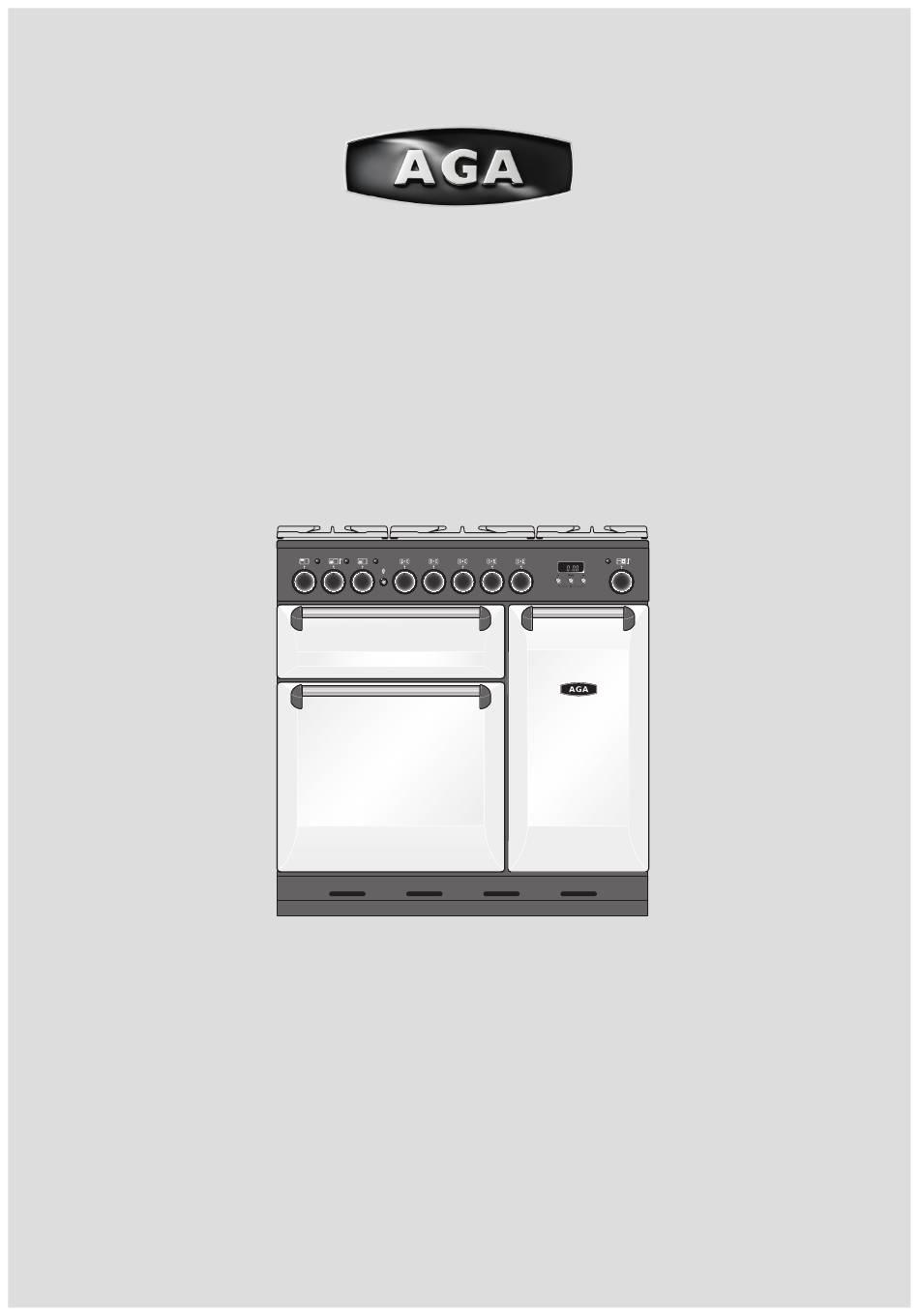

- Page 1 MASTERCHEF DELUXE 90 DUAL FUEL USER GUIDE & INSTALLATION INSTRUCTIONS U111083 - 02...
- Page 2 Developed by experts, our range of exclusive and essential cookware is designed for quality, performance and durability. AGA Cookshop has everything you need to get the most from your cooker, including stainless steel cookware, lightweight non-stick cast aluminium cookware, innovative and practical textiles, and a wide range of traditional and contemporary kettles.
-
Page 3: Table Of Contents
Contents Before You Start... Troubleshooting Personal Safety 10. Installation Electrical Connection Safety Dear Installer If You Smell Gas Safety Requirements and Regulations Peculiar Smells Provision of Ventilation Cooling Fan Location of Cooker Ventilation Conversion Maintenance Positioning the Cooker Grill/Glide-out Grill™ Care Moving the Cooker Cooker Care Fitting the Stability Bracket or Chain... -
Page 5: Before You Start
Before You Start... WARNING: Your cooker should give you many years of The appliance and its • trouble-free cooking if installed and operated accessible parts become hot during use correctly. It is important that you read this and will retain heat even after you have section before you start. - Page 6 Otherwise, all installations must be in Fig. 1.1 accordance with the relevant instructions in this booklet. WARNING: THE APPLIANCE MUST BE EARTHED. Note: The cooker must be connected to the 10 mm² max correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit incorporating a double- 6 mm²...
-
Page 7: If You Smell Gas
Make sure that the gas supply is turned Before using for the first time, make sure that • on and that the cooker is wired in and all packing materials have been removed and switched on. then, to dispel manufacturing odours, turn the ovens to 200 °C and run for at least an hour. - Page 8 NEVER operate the cooker with wet hands. especially a deep fat fryer. Wait until the • fat is cool. Filling the pan too full of fat can DO NOT use a towel or other bulky cloth • cause spill over when food is added. If you in place of a glove –...
- Page 9 The inside door face is constructed with • Fig. 1.3 toughened safety glass. Take care NOT to scratch the surface when cleaning the glass panel. Accidental damage may cause the door • glass panel to fracture. ArtNo.324-0001 Steam burst Keep oven vent ducts unobstructed. •...
-
Page 10: Grill/Glide-Out Grill™ Care
bleach, chlorine based bleach cleaners, Grill/Glide-out Grill™ Care coarse abrasives or salt. WARNING: Unattended cooking under the grill can be dangerous and may DO NOT mix different cleaning products • result in fire. – they may react together with hazardous results. -
Page 11: Cooker Overview
2. Cooker Overview Fig. 2.1 The 110 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 5 hotplate burners A control panel A glide-out grill A multi-function oven A fan oven Hotplate Burners The drawing by each of the central knobs indicates which burner that knob controls. -
Page 12: The Wok Cradle (Optional)
If, when you let go of the control knob, the burner goes out, Fig. 2.3 then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 13: The Glide-Out Grill
The Glide-out Grill DO NOT leave the grill on for more than a few moments without the grill pan underneath it, otherwise the knobs may become hot. When the trivet has been removed from the grill pan, please ensure that the grill pan and cradle are fully returned into the grill chamber. -
Page 14: The Ovens
The Ovens Function The clock must be set to the time of day before the left- Rapid response To preheat the oven faster than normal. hand oven will work. See the following section on ‘The Clock’ for instructions on setting the time of day. To thaw small items in the oven without Defrost heat... - Page 15 Fan Oven Browning Element This function operates the fan and the heating This function uses the element in the top of the oven element around it. An even heat is produced only. It is a useful function for the browning or throughout the oven, allowing you to cook large finishing of pasta dishes, vegetables in sauce, amounts quickly.
- Page 16 Operating the Ovens Fig. 2.10 Fan Oven Turn the oven knob to the desired temperature (Fig. 2.10). The oven indicator light will glow until the oven has reached the temperature selected. It will then cycle on and off during cooking. Multi-function Oven The multi-function oven has two controls: a function selector and a temperature setting knob (Fig.
-
Page 17: Accessories
Accessories Fig. 2.13 Fig. 2.14 Oven Shelves The range is supplied with the following: 2 telescopic shelves with runners (Fig. 2.13). • • 1 sets of side supports (Fig. 2.14). The oven shelves are retained when pulled forward but can be easily removed and refitted. -
Page 18: Using The Glide-Out Grill
Using the Glide-out Grill™ DocAUS.020-0004 - Overview - 110DF - Elan Fig. 3.2 Fig. 3.1 Nearest to the element Middle High Middle Low Furthest from the element Four grill height positions refer to Fig. 3.5 Fig. 3.4 Fig. 3.3 To switch on both elements To switch on the right half element Four grill height positions Fig. -
Page 19: Using The Probe
The probe is used to measure the internal temperature of meat, bread or other cooked foods. IMPORTANT: Ensure that only an AGA approved probe is used (part number : P068958). A non- approved probe will not work. Do not wash the probe in the dishwasher. -
Page 20: Button Clock
3 button clock Setting the time Reset the minute minder The clock must be set to the time of day before the oven will work Step. 1 Note: The cook Step. 1 symbol [ ] remains visible during normal operation. ArtNo.306-0001 - 3-button clock ArtNo.306-0001 - 3-button clock Step. - Page 21 To start and stop the oven automatically AUTO is showing, but you want to revert (main oven only) to manual cooking (main oven only) Step. 1 Press [M] button again until current Press either [+] or time is diplayed. [-] buttons ArtNo.306-0001 - 3-button clock ArtNo.306-0001 - 3-button clock Step.
-
Page 22: Cooking Tips
Cooking tips Tips on cooking with the timer General oven tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 23: Cooking Table
Cooking Table The oven control settings and cooking times given in the table below are intended to be used as a Top (T) guide only. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions Food is cooked at lower temperature in a fan oven than in a conventional oven. -
Page 24: Cleaning Your Cooker
Cleaning Your Cooker Isolate the electricity supply before carrying out any major Fig. 8.1 cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. ArtNo.311-0028 - Burner head off DO NOT mix different cleaning products –... -
Page 25: Glide-Out Grill
Glide-out Grill Fig. 8.3 Before you remove any of the grill parts for cleaning. make sure that they are cool, or use oven gloves. DO NOT use any abrasive substances. The grill pan and trivet should be washed in hot soapy water. Alternatively, the grill pan can be washed in a dishwasher. -
Page 26: Ovens
Ovens Fig. 8.7 ‘Cook & Clean’ Panels The ovens have panels which have been coated with a special enamel that partly cleans itself. This does not stop all marks on the lining, but helps to reduce the amount of manual cleaning needed. -
Page 27: Cleaning Table
Cleaning Table Cleaners listed are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish Recommended Cleaning Method... -
Page 28: Troubleshooting
Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? Is the clock illuminated? Cooking times may differ from your previous oven. If not, there maybe something wrong with the power supply. Check that you are using the recommended temperatures and shelf positions –... - Page 29 Oven light is not working Fig. 9.1 Fig. 9.2 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 40W - 230V halogen lamp (G9) (Fig.
-
Page 30: 10. Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. 10. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 31: Location Of Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Location of Cooker Checking the parts: The cooker may be installed in a kitchen/kitchen diner but Pan supports Grill pan and trivet NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only. -
Page 32: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker Fig. 10.1 Fig. 10.1 and Fig. 10.2 show the minimum recommended 75 mm 75 mm distance from the cooker to nearby surfaces. 800 mm The cooker should not be placed on a base. -
Page 33: Fitting The Stability Bracket Or Chain
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Lowering the Two Rear Rollers Fig. 10.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig. -
Page 34: Conversion To Another Gas
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Conversion to Another Gas Fig. 10.11 If the appliance is to be converted to another gas do the conversion at this point. See the conversion section of these instructions. -
Page 35: Gas Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Gas Connection Fig. 10.14 This must be in accordance with the relevant standards. Pipework Pipework The flexible hose (not supplied with the cooker) must be in accordance with the relevant standards. Hoses may be purchased at most builders’... -
Page 36: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection Fig. 10.16 The cooker must be installed by a qualified electrician, in accordance with all relevant British Standards/Codes of Practice (in particular BS 7671), or with the relevant national and local regulations. -
Page 37: Final Checks
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Final Checks Fig. 10.18 Hob Check Check each cooking zone in turn. Be sure to use pans of the correct size and material. Inner plinth Grill Check Turn on the grill control and check that the grill heats up. -
Page 38: 11. Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 11. Conversion to LP Gas Check the ‘Technical Data’ section at the back of the book that Fig. -
Page 39: Bypass Screw Adjustment
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Bypass Screw Adjustment Fig. 11.5 The valves in this cooker are fitted with adjustable bypass screws. -
Page 40: 12. Circuit Diagram
12. Circuit Diagram P038434 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Colour Code Description Code Description Blue Grill Front Switch Oven Fan Brown Grill Energy Regulator Clock / Timer Black Left Hand Grill Element Cooling Fan... -
Page 41: 13. Technical Data
29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model AGA Masterchef Deluxe 90 Dual Fuel Overall height minimum 905 mm maximum 930 mm Overall width 900 mm Overall depth 608 mm excluding handles, 694 mm including handles... - Page 42 Hotplate Efficiency Data Brand Model Identification Masterchef Deluxe Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Rapide / Large Burner (EE gas burner) Rapide / Large Burner (EE gas burner) Rapide / Large Burner (EE gas burner)
- Page 43 Oven Data Brand Model identification Masterchef Deluxe Type of oven Electric Mass Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Multifunction Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle 1.01 Energy consumption (electricity) - forced air convection kWh / cycle...
- Page 44 NOTE...
- Page 45 NOTE...
- Page 46 NOTE...
- Page 47 CUSTOMER SERVICE WARRANTY If you have any product enquiries, or in the event of a problem An AGA Masterchef Deluxe has a five-year parts and one-year with your appliance once it has been installed, please labour warranty. telephone 01952 643149 CUSTOMER SERVICE LINES OPEN: Monday to Friday 9am –...
- Page 48 Registered in England and Wales. Registration No. 354715 Registered Office: Meadow Lane, Long Eaton, Nottingham, NG10 2GD AGA continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this booklet should not be regarded as an infallible guide to current...
