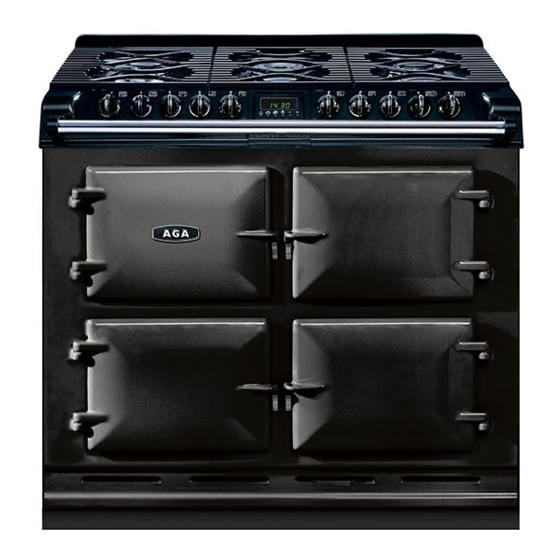

Summary of Contents for AGA SIX-FOUR DC6
Page 1
REMEMBER, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. DO NOT use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
Page 3
Nederlands Inhoud AGA Six-Four AGA Six-Four...
Nederlands AGA Six-Four WARNING SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON. Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Check the ‘Technical Data’ section, that the hob is convertible to the gas you want to use.
Page 5
Nederlands Assembly of burners Fig. 1.1 IMPORTANT: The cast iron pan supports on the appliance are much heavier than those on most gas hotplate cookers, therefore care must be taken when removing or re-fitting them to the hob. It is important that they are lifted from the appliance and not dragged across nearby enamelled parts which would result in Burner cap retaining lugs...
Nederlands Technical Data NOTE: The data plate is situated in the centre vent slot near the base of the front plate. Natural Gas G20 (Appliance Category I2H) Burner type RAPID RAPID SEMI - RAPID SEMI - RAPID ULTRA - RAPID Maximum heat input 4.5 KW 3.0 KW...
Page 7
Nederlands AGA Six-Four WAARSCHUWING – ONDERHOUD ALLEEN DOOR BEVOEGDE PERSONEN UIT TE VOEREN. Vóór onderhoud van elektriciteit en gas afsluiten. Controleer of het apparaat veilig is wanneer u klaar bent. Controleer het onderdeel “Technische Gegevens” of het fornuis omgebouwd kan worden naar het gas dat u wilt gebruiken.
Page 8
Nederlands Montage van branders Afb.1.5 BELANGRIJK: De gietijzeren pansteunen op het fornuis zijn veel zwarder dan op meeste gasfornuizen. Wees daarom voorzichtig met het verwijderen of opnieuw plaatsen ervan. Het is van belang dat ze opgelicht worden en niet over het aangrenzende email gesleept worden omdat daardoor het email beschadigt.
Nederlands Technische Gegevens Het drukproefpunt bevindt zich aan de rechterachterkant van de kookplaat. KOOKPLAAT - Aardgas G20 - (Apparaatcategorie I2H) Brandertype WOKBRANDER SNELLE SNELLE HALFSNEL HALFSNEL ULTRASNEL Maximale warmtetoevoer 4,5 KW 3,0 KW 3,0 KW 1,75 KW 1,75 KW 5,0 KW Plaatsbepaling injector Secundair 1,00 (x2)
Page 16
Neem voor overig advies of informatie contact op met uw plaatselijke AGA-specialist. Volgens AGA Rangemasters beleid van continue productverbetering behoudt het bedrijf zich het recht voor om specificaties te wijzigen en op elk gewenst moment aanpassingen aan de beschreven en geïllustreerde apparaten door te voeren.
