- Page 1 48 Dual Fuel Owner’s Guide User & Installation Instructions READ THESE INSTRUCTIONS FULLY BEFORE USE SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE U110649 - 02B...
- Page 2 WARNING! If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. WHAT TO DO IF YOU SMELL GAS DO NOT try to light any appliance.
-
Page 3: Table Of Contents
The following symbols are related to Safety and are used on the product and throughout this manual. Meaning / Description Symbol Meaning / Description Symbol HEAVY WARNING / CAUTION This product is heavy and reference An appropriate safety instruction should be made to the safety should be followed or caution to a instructions for provisions of lifting potential hazard exists. -
Page 4: Important Safety Information
1. Important Safety Information NEVER leave any items on the range cooktop. The Have your appliance properly installed and grounded by a hot air from an oven vent may ignite flammable qualified technician. The installation must conform with local codes or in the absence of local codes in accordance with the items and may increase pressure in closed containers, which may cause them to burst. - Page 5 DO NOT use the oven for storage. Important Safety Notice and This instruction is based on safety considerations. Warning Flammable materials should not be stored in an oven, the The California Safe Drinking Water and Toxic Enforcement Act range storage drawer or near the cooktop burners. This of 1986 (Proposition 65) requires the Governor of California to includes paper, plastic and cloth items, such as cookbooks, publish a list of substances known to the State of California to...
- Page 6 Cooktop Burners Ovens Use Care When Opening Door. Quality of Flames Let hot air and steam escape before removing or On Natural Gas the burners’ flames should be a blueish color replacing food. with, at most, a slight yellowish fringe. Never heat unopened food containers.
- Page 7 Take care when touching range, to minimize the Foods for frying should be as dry as possible. Frost on frozen possibility of burns, always be certain that the foods or moisture on fresh foods can cause hot fat to bubble controls are in the OFF position and that it is cool up and over the sides of the pan.
-

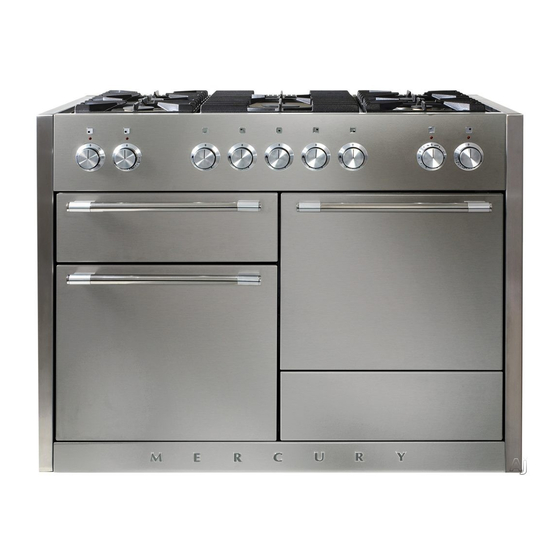

Page 8: Range Overview
Interlocking cast iron grates Convection oven Storage drawer Cooktop - Gas Burners ArtNo.110-0045 - 120DF - Mercury door clearances The icon by each of the central knobs indicates which burner that knob controls. Each burner has a Flame Supervision Device (FSD) that Fig. -
Page 9: Wok Burner
When you release the control knob, if the burner goes out, Fig. 2.4 the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. - Page 10 the cradle, make sure that it is supported properly on a burner Fig. 2.12 grate and the wok is sitting level in the cradle (Fig. 2.12). The cradle will get very hot in use – allow plenty of time for it to cool before you pick it up.
- Page 11 Ovens throughout the oven, allowing you to cook large amounts quickly. Please refer to (Fig. 2.1). Convection cooking is particularly suitable for batch baking References to ‘left-hand’ and ‘right-hand’ ovens apply as on several shelves at one time and is a good ‘all-round’ viewed from the front of the appliance.
-
Page 12: Convection Oven
Browning Function This function uses the element in the top of the oven To thaw small items in the oven Defrost only. It is a useful function for the browning or without heat. finishing of pasta dishes, vegetables in sauce, A full cooking function, even heat Convection throughout, great for baking. - Page 13 Accessories Fig. 2.21 Fig. 2.22 Oven Shelves The range is supplied with the following: • 2 standard shelves (Fig. 2.21) • 1 drop shelf (Fig. 2.22) • 2 telescopic shelves with runners (Fig. 2.23) • 2 sets of side supports (Fig. 2.24) Fig.
- Page 14 To Fit the Telescopic Shelf Runners Fig. 2.25 With the runner arm in the closed position locate the opening of the upper rear slot onto the side support (Fig. 2.25). DO NOT locate any further than the opening at this point. Lift the front of the runner arm to locate the front slot against the side support (Fig.
- Page 15 Storage The bottom drawer is for storing cooking utensils. To open, simply push the drawer in and release. Flammable materials should not be stored in an oven, the range storage drawer or near the cooktop burners. This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids.
-
Page 16: Cooking Tips
Cooking tips Cooking with a multi-function oven When the oven is on, DO NOT leave the door open for longer than necessary, otherwise the knobs may get very hot. REMEMBER: not all modes are suitable for all food types. The •... -
Page 17: Cooking Table
Cooking table DocNo.031-0004 - Cooking table - electric & fan single cavity The oven control settings and cooking times given in the table below are intended to be used as a guide only. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0019 - Albertine SC Food is cooked at lower temperature in a fan oven than in a conventional oven. -
Page 18: Troubleshooting
5. Troubleshooting All servicing and repairs must be carried out by a We DO NOT recommend corrosive or caustic qualified service engineer. cleaners as these may damage your range. Ignition or cooktop burners faulty The knobs get hot when I use the oven, can I avoid this? Is the power on? Yes, this is caused by heat rising from the oven, and heating them up. - Page 19 Have you set a cooking function? Oven temperature getting hotter as the range gets older ArtNo.320-0006b -Mercury oven door hinge adjustment If turning the knob down has not worked or only worked for a short time then you may need a new Effect of hinge adjustment –...
-
Page 20: Installation Instructions
INSTALLATION Check the appliance is electrically safe when you have finished. Installation Instructions WARNING! If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - Page 21 INSTALLATION Check the appliance is electrically safe when you have finished. WARNING! The anti-tip device supplied with this range must be installed when the appliance is installed. This will reduce risk of tipping of the appliance from abnormal usage or by excessive loading of the oven door. WARNING! ...
-
Page 22: Service And Parts
If you are still having difficulty, please contact Tech Support at 800-223-3900 or email techsupport@agamarvel.com. Please Note For warranty information or to register your AGA range, go to www.aga-ranges.com. You may also refer to the warranty document provided with the appliance or contact Customer Service at 800-223-3900. -
Page 23: Installation Safety Instructions
INSTALLATION Check the appliance is electrically safe when you have finished. 8. Installation Safety Instructions Regulations Installation Safety Instructions Installation of this range must conform with local Improper installation, adjustment, alteration, codes, or in the absence of local codes, with the service or maintenance can cause injury or property National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest damage. - Page 24 INSTALLATION Check the appliance is electrically safe when you have finished. Location of the Range Additional materials you may need: Gas line shut-off valve. The range may be installed in a kitchen/kitchen dining area but NOT in a room containing a bath or shower. Pipe joint sealant or UL-approved pipe thread tape with Teflon* that resists action of natural and LP gases.
- Page 25 ” (945 mm) max Above hotplate surround should be level with, or above, any adjacent work surface (Fig. 8.1). ArtNo.110-0040 - 110 Mercury min spacings *Any rangehood should be installed in accordance with the “ hood manufacturer’s instructions. (1208 mm) **Any splashback must be fitted in accordance with the Fig.
-
Page 26: Moving The Range
INSTALLATION Check the appliance is electrically safe when you have finished. The depth of the range is 28 ⁄ " (723 mm) overall (Fig. 8.4). Fig. 8.4 (1177 mm) If the range is near a corner of the kitchen, a clearance of 3 ½” (90 mm) is required to allow the oven doors to open (723 mm) (Fig. -
Page 27: Fitting The Flue, Flue Vent And Side Panels
INSTALLATION Check the appliance is electrically safe when you have finished. 9. Fitting the Flue, Flue Vent and Side Panels Fitting the Knobs Checking the Parts: Flue Flue Vent Gently push-fit the control knobs onto the spindles. Fitting the Flue Remove the four screws from the broiler flue opening (Fig. - Page 28 INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Cooling Fan Box Fig. 9.3 Remove the six screws where the cooling fan box will be fixed Fig. 9.3. The shape of the molex plug should match the socket. Gently connect the molex plug to the molex connector socket Fig.
- Page 29 INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Side Panel Rear Checking the Parts: Retaining Brackets Side panel rear retaining brackets Side panels A052064 - Right-hand A051761 - Right-hand Located at the bottom left and right rear corner of the A052067 - Left-hand A051759 - Left-hand range, remove the two screws (Fig.
-
Page 30: Fitting The Side Panels
INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Side Panels Fig. 9.10 Loosen the screw in the flue vent (Fig. 9.10). Inside the top of the side panel top are two tabs. Attach the self adhesive gaskets to each tab and connect these tabs into the cut-outs in the top edge of the range (Fig. - Page 31 INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Front Mounting Fig. 9.13 Brackets Open the right-hand oven door and pull the drawer out to its furthest point. Push the ends of the plastic clips (Fig. 9.13 and Fig. 9.14) to release the catches holding the drawer to the side runners.
- Page 32 INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Bottom Panel Fig. 9.17 Side panel Tilt the bottom of the panel slightly to locate the lower Bottom panel slots onto the washers (Fig. 9.17). Now rotate the panel to fit over the pins (Fig.
- Page 33 INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Drawer Fig. 9.21 To fit the drawer, pull the side rails fully out (Fig. 9.21). Carefully move the drawer back between the rails and rest it on the side rails. At each side, hold the front of the drawer and pull the side rail forward so that the clips click into position, holding the drawer to the side rails (Fig.
-
Page 34: Completing The Move
INSTALLATION Check the appliance is electrically safe when you have finished. Fitting the Restraint Chain and Fig. 9.23 Anti-Tip Device Restraint chain A range using a flexible gas connector must be secured with a suitable restraint chain and anti-tip device. When fitting the restraint chain it should be kept as short as is practicable and fixed firmly to the rigid pipe at the top, right-hand, rear of the range, when viewed... -
Page 35: Removing The Side Panels
INSTALLATION Check the appliance is electrically safe when you have finished. 10. Removing the Side Panels Disconnect the electrical supply. Fig. 10.1 You will need the following equipment to remove the side panels: • Cross-head screwdriver • Flat head screwdriver •... - Page 36 INSTALLATION Check the appliance is electrically safe when you have finished. Removing the Side Panels Fig. 10.5 Loosen one screw in the vent (Fig. 10.5). Push forward the side panel so that it moves away from the flue vent and the retaining washer (Fig. 10.6). Inside the top of the side panel top are two tabs.
-
Page 37: Essential Information
11. Cleaning Your Range Essential Information Before thorough cleaning, turn off the circuit breaker. Allow the range to cool. After cleaning remember to switch on the circuit breaker before using the range. NEVER use paint solvents, caustic cleaners, ... - Page 38 Stainless Steel Main Top Fig. 11.1 Lift away pots or pans from main top. Remove grates from spillage area and carefully place in a sink of warm soapy water. Wipe loose debris from main top. Avoid using any abrasive cleaners including cream cleaners on brushed stainless steel surfaces.
- Page 39 Glide-out Broiler™ Fig. 11.5 Before you remove any of the broiler parts for cleaning, make sure that they are cool, or use oven gloves. Wash the broiler pan, trivet and broiler tray in hot soapy water. Alternatively, wash the broiler pan in a dishwasher. After broilling meats or any foods that soil, leave to soak for a few minutes in the sink immediately after use.
-
Page 40: Cleaning Table
Hot soapy water, soft cloth. Any stubborn stains remove gently with a Cooktop surface Enamel or stainless steel nylon scourer and AGA Enamel and AGA Chrome & Steel Cleaner respectively. Mildly abrasive cleaner such as AGA Burner grates & top of burner heads Porcelain enamel Enamel Cleaner. -
Page 41: Gas Connection
INSTALLATION Check the appliance is electrically safe when you have finished. 12. Gas Connection Installation of this range must conform with local codes or, in Fig. 12.1 the absence of local codes, with the National Fuel Gas Code, 11 ¼” ANSI Z223.1-latest edition. - Page 42 INSTALLATION Check the appliance is electrically safe when you have finished. Connect the Range to the Gas Supply When using test pressures greater than ½ psi (3.5 kPa) to pressure test the gas supply system of the residence, Shut off the main gas supply valve before disconnecting the disconnect the range and individual shut-off valve from the old range and leave it off until the new hookup has been gas supply piping.
-
Page 43: Conversion To Lp Gas
INSTALLATION Check the appliance is electrically safe when you have finished. 13. Conversion to LP Gas Important Fig. 13.1 • Observe all governing codes and ordinances. Cabeza de la hornalla Burner ring • The range must be properly grounded. Tubo Venturi •... -
Page 44: Removing The Control Panel
INSTALLATION Check the appliance is electrically safe when you have finished. To Install the new orifices; see Table 13.1 for orifice details. Fig. 13.4 Insert the new orifice into the open end of the rubber tube which is attached to the socket wrench. Screw into the orifice carrier as far as possible and lift the socket wrench away (Fig. - Page 45 INSTALLATION Check the appliance is electrically safe when you have finished. Reassemble Fig. 13.8 If you have lifted the maintop, carefully lower it onto the range. The burners are protected against the burner flames going out by Flame Supervision Devices (FSD’s). Take care when lowering the maintop to locate the FSD sensor probes (Fig.
-
Page 46: Pressure Testing
INSTALLATION Check the appliance is electrically safe when you have finished. Stick on Labels Fig. 13.12 Complete the conversion label (kit number A060048) and K085791 This appliance was converted on stick it next to the ratings label inside the drawer cavity to month -day -year... -
Page 47: Electrical Connection
INSTALLATION Check the appliance is electrically safe when you have finished. 14. Electrical Connection Have your appliance properly installed and grounded by a Provide Proper Electrical Supply qualified technician. The installation must conform with local This range must be supplied with 240 V 60 Hz, and connected to codes or in the absence of local codes in accordance with the an individual, properly grounded branch circuit protected by a National Fuel Gas Code, ANSI Z223.1/NFPA 54 or, in Canada,... -
Page 48: Final Fitting
INSTALLATION Check the appliance is electrically safe when you have finished. 15. Final Fitting Fitting the Interlocking Grates Fig. 15.1 Please note that the Continuous Grates supports are handed, and may prevent the centre pan supports from fitting correctly. There is a small indent in the rear of each of the outer supports. -
Page 49: Circuit Diagram
16. Circuit Diagram P026819 P026819 P029549 P033458 P028728 P033458 Code Description Code Description Code Color Blue Broiler Thermostat Right-hand oven thermostat Brown Broiler Controller Right-hand oven switch block Black Broiler Elements Right-hand oven element Orange Left-hand oven thermostat Right-hand oven fan motor Left-hand oven switch block Ignition switches Violet... -
Page 50: Technical Data
17. Technical Data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Inside base drawer of cavity. Remove the drawer (see Overview > Storage for details). COUNTRY OF DESTINATION: USA, Canada, Mexico. Connections ArtNo280-0090 Drawer Cavity & Badges Electric Supply 240 V 60 Hz Electric Rating... -
Page 51: Consumer Warranty
AGA warrants the oven heating elements against defects in material or workmanship for an additional two years. These parts will be repaired or replaced at the option of AGA without charge, but you pay for labor and transportation subject to the terms and conditions set out below. - Page 52 Manufactured in the UK for: AGA Marvel 1260 E. VanDeinse St. Greenville, MI 48838 Business (616) 754-5601 Fax (616) 754-9690 Toll Free Telephone 800-223-3900 www.aga-ranges.com...
