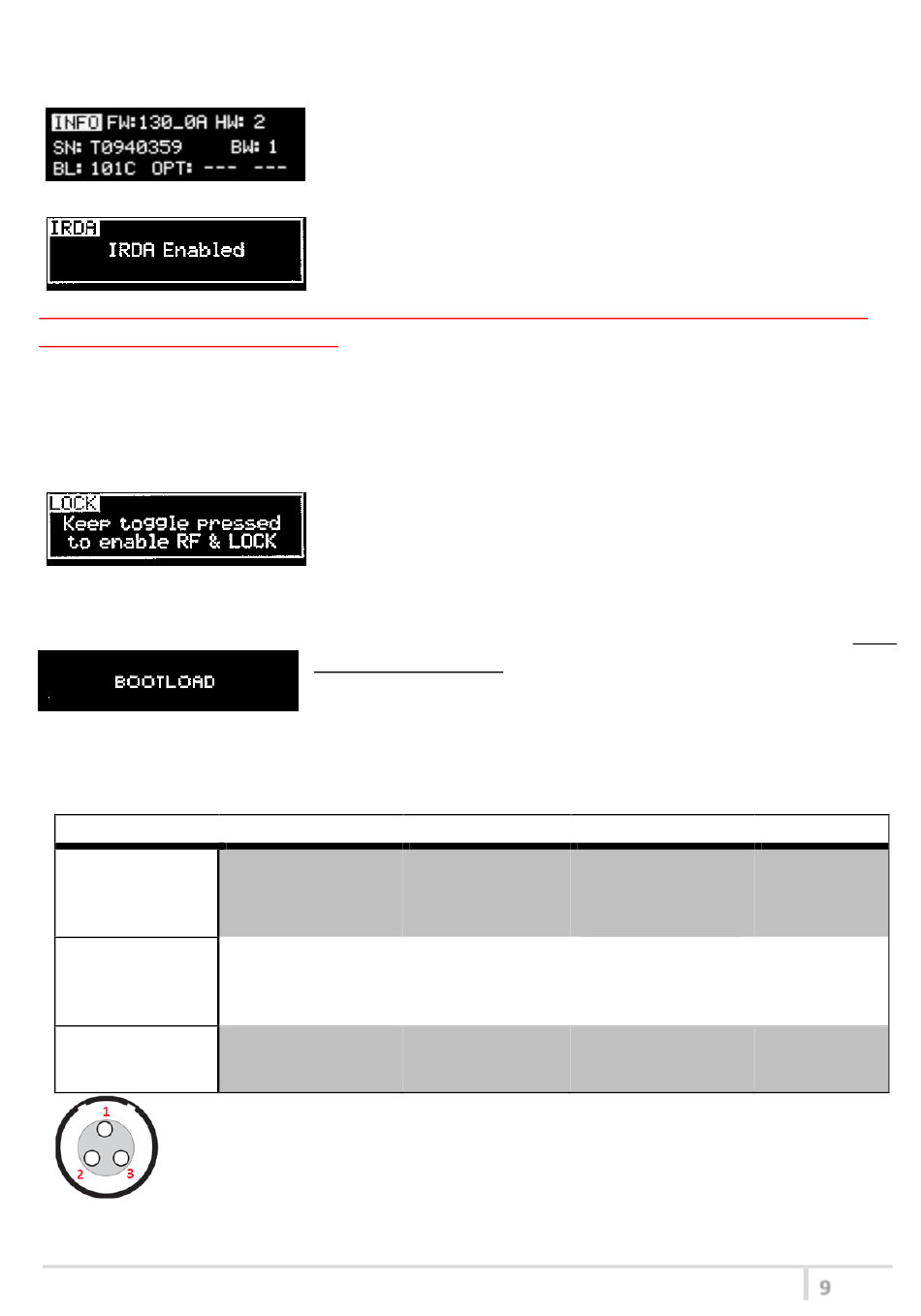

<INFO> menu
Note: if the IRDA interface is enabled and there's no communication for around 10 seconds, the IRDA
interface is automatically turned off.
During power on the device, the IRDA interface is enabled for 14 seconds. Thanks to this feature it
is possible to connect the transmitter to the Manager for upgrade/configuration or do a SYNC with
Wisycom receiver without enter manually on the menu.
<LOCK>
<BOOTLOAD>
This menu can be entered by turning on the transmitter while pushing at the same time both quick
MIC Mode setting:
MIC Mode:
'2 wires':
'2 wires + bias':
'3 wires':
3 PIN LEMO CONNECTOR
(use FVB.00.003.NLN on Mic)
This menu can be entered by scrolling selector.
In this menu it's possible to see FW version/HW version/Serial
Number/Bandwidth/Bootloader version/Option
<IRDA>
While there is this menu, the device can be connected to IRDA for
setup or firmware upgrades.
Long pressing (2 sec.) selector button (click) it locks MTP51-JP in
transmission mode.
To unlock, long pressing (2 sec.) selector button again.
channel setup buttons (<ch> & <gain>) or connecting the device via
IRDA using the IR Programmer for FW update
Device is forced in bootloader mode to allow FIRMWARE UPDATE.
Pin out
1=GND
3=AF
1=GND
3=AF+5.5V
1=GND
2=5.5V
3=AF
Gain PTT
Disable
Normal
-60/40 dB
Muting
No data
Disable
Normal
-60/40 dB
Muting
No data
Disable
-60/40 dB
No data
MTP51-JP User Manual
Led Mode
None
Mod. Peak
PTT
None
Mod. peak
PTT
None
Mod. peak
