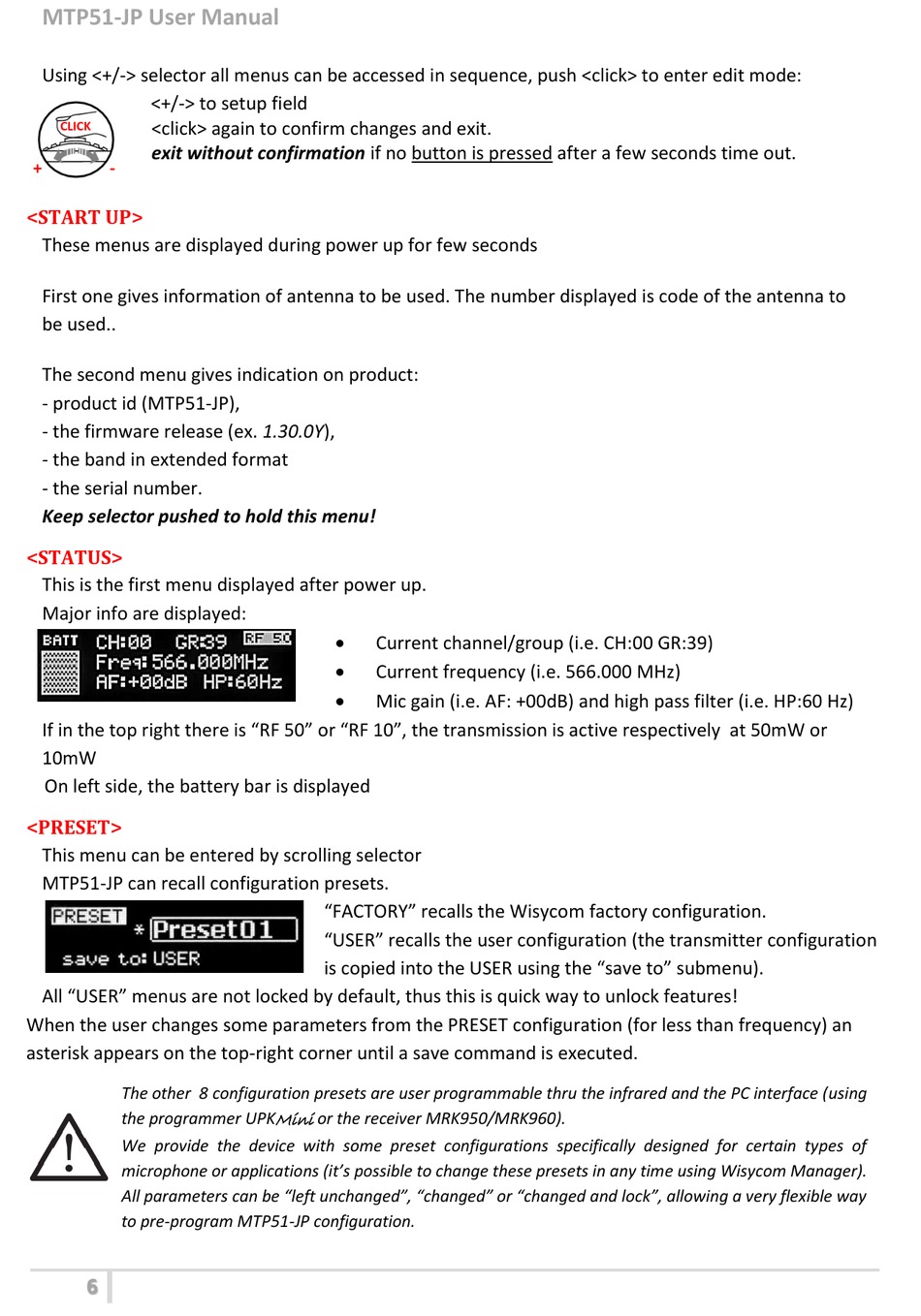

MTP51-JP User Manual
Using <+/-> selector all menus can be accessed in sequence, push <click> to enter edit mode:
<+/-> to setup field
<click> again to confirm changes and exit.
CLICK
exit without confirmation if no button is pressed after a few seconds time out.
+ -
<START UP>
These menus are displayed during power up for few seconds
First one gives information of antenna to be used. The number displayed is code of the antenna to
be used..
The second menu gives indication on product:
- product id (MTP51-JP),
- the firmware release (ex. 1.30.0Y),
- the band in extended format
- the serial number.
Keep selector pushed to hold this menu!
<STATUS>
This is the first menu displayed after power up.
Major info are displayed:
If in the top right there is "RF 50" or "RF 10", the transmission is active respectively at 50mW or
10mW
On left side, the battery bar is displayed
<PRESET>
This menu can be entered by scrolling selector
MTP51-JP can recall configuration presets.
All "USER" menus are not locked by default, thus this is quick way to unlock features!
When the user changes some parameters from the PRESET configuration (for less than frequency) an
asterisk appears on the top-right corner until a save command is executed.
The other 8 configuration presets are user programmable thru the infrared and the PC interface (using
the programmer UPK
We provide the device with some preset configurations specifically designed for certain types of
microphone or applications (it's possible to change these presets in any time using Wisycom Manager).
All parameters can be "left unchanged", "changed" or "changed and lock", allowing a very flexible way
to pre-program MTP51-JP configuration.
6

Current channel/group (i.e. CH:00 GR:39)

Current frequency (i.e. 566.000 MHz)

Mic gain (i.e. AF: +00dB) and high pass filter (i.e. HP:60 Hz)
"FACTORY" recalls the Wisycom factory configuration.
"USER" recalls the user configuration (the transmitter configuration
is copied into the USER using the "save to" submenu).
Mini
or the receiver MRK950/MRK960).
