Outdoor Round Flat Fire Pit Discs
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MODELS
Natural Gas
INSTALLATION PRECAUTION:
Warning:
For Outdoor
Use Only
MH#60069
Description

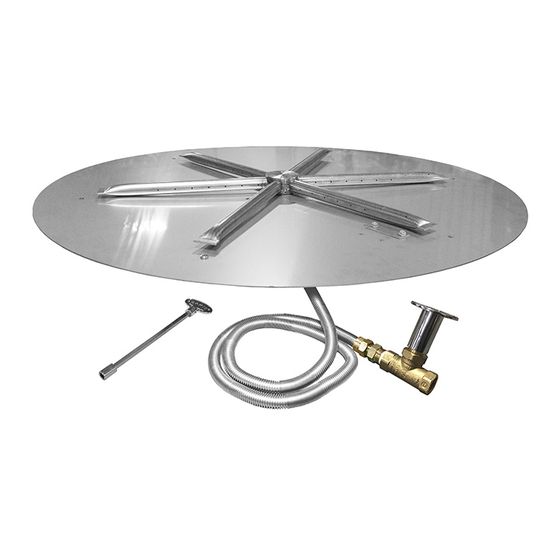

26" Round Flat Disc (MT system)
26" Round Flat Disc (TMSI system)
34" Round Flat Disc (MT system)
34" Round Flat Disc (TMSI system)
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Firegear FPB-26DBSMT-N-SAN
Summary of Contents for Firegear FPB-26DBSMT-N-SAN
- Page 1 MH#60069 MODELS Natural Gas Description FPB-26DBSMT-N-SAN 26” Round Flat Disc (MT system) FPB26DBSTMSIN-SAN 26” Round Flat Disc (TMSI system) FPB-34DBSMT-N-SAN 34” Round Flat Disc (MT system) FPB34DBSTMSIN-SAN 34” Round Flat Disc (TMSI system) Outdoor Round Flat Fire Pit Discs Installation and Operating Instructions...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
SPECIFICATIONS Model: Natural Gas (NG) Disc Min.Install Ground Side Combustible Combustible Depth Diameter Opening Level Wall Ceiling Floor FPB-26DBSMT-N-SAN 1/16” 26” ” 12” 19” 69” 12” 1/16” FPB26DBSTMSIN-SAN 26” ” 12” 19” 69” 12” 1/16” FPB-34DBSMT-N-SAN 34” ” ” 19”... -
Page 5: Gas Pipe Sizing Chart
GAS PIPE SIZING CHART REFERENCE GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 6: Preparation For Non-Combustible Structure
Use the specifications listed on page 4 for proper clearance to combustibles. NOTICE Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. -
Page 7: Installation Into An Approved Enclosure
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual.. 2. -
Page 8: Section A Match Light (Mt) Installation
Section A Match Light (MT) Installation Round Flat Disc REV. 1-7-19 Page 8... - Page 9 Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations. Fig’s 4, 5, and 6 show the use of the flex frame system which provides the ability to easily remove the disc if necessary. Fig.4 Show disc secured under stone caps.
- Page 10 Spur Burner Non-Combustible Enclousure Flat Disc Key Valve Supply E-Stop PUSH TO STOP TURN TO START HOURS Key valve and flexible gas line are supplied; E-stop shut-off is not supplied, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound.
-
Page 11: Operation & Lighting
OPERATION - SECTION A CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Mt Troubleshooting/Maintenance
MT FIRE PIT MAINTENANCE - SECTION A 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. -
Page 13: Expanded Mt Model View
Expanded View of Match Throw (MT) Fire Pits Fire Pit Pan Spur Burner / ” Washer Brass Nut OASNG# (Burner Ori ce) U3-8D-S (Fitting) Note: Use joint compound or Te on tape resistant to all T200-9898-46 gasses on all male NPT (Flex Connector) threads;... -
Page 14: Section B Thermocouple Manual Safety (Tmsi) Installation
Section B Thermocouple Manual Safety (TMSI) Installation Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations. Figs. 14, and 15 show the use of the flex frame system which provides the ability to reasily emove the disc if necessary. Fig. - Page 15 INSTALLING GAS VALVE Piezo Ground Tab The gas valve is secured into the mounting plate with a nut. Fig. 17 shows an example of a typical installation. PIEZO48WH Illustration shows side view of valve and Piezo ignitor. Ignitor Module Bottom of Burner Pan PIEZO23WH Illustration above shows ground tab connection underneath the burner pan.
- Page 16 IGNITOR ALIGNMENT 1/8” Gap at Ignitor Probes It is important check that the ignitor probes be properly aligned overtop of the burner port holes and did not move during shipping. Use the Fig.19 as a guide. Before lighting remove the screen cover of the ignition hood to burner and ensure the thermocouple is directly ⅛”...
-
Page 17: Operation & Lighting
OPERATION - SECTION B CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 18: Tmsi Troubleshooting/Maintenance
FIRE PIT MAINTENANCE - SECTION B 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. -
Page 19: Expanded Tmsi Model View
Expanded View of Thermocouple Manual Safety (TMSI) Fire Pit Ignition Hood Spur Burner 7/8” Washer Ground Brass Nut OASNG# Note: Use joint compound or (Burner Ori ce) Te on tape resistant to all gasses on all male NPT U3-8D-S (Fitting) threads;... -
Page 20: Replacement Parts
ROUND FLAT DISC REPLACEMENT PARTS Drawings are not to scale Outlet Inlet PIEZO25WH PIEZO48WH Round Flat Disc REV. 1-7-19 Page 20... -
Page 21: Replacement Parts List
ROUND FLAT DISC REPLACEMENT PARTS LIST Qty. Item Part Number Description TMSI 26-inch Round Flat Stainles Disc PAN-SS26D 34-inch Round Flat Stainless Disc PAN-SS34D 22-inch Burning Spur (used with 34-inch disc) B-SPUR-22 16-inch Burning Spur (used with 26-inch disc) B-SPUR-16 ½”... -
Page 22: Optional Accessories
326-930 Twigs 6pc (20lbs) * Not for use with TFS fire pit systems NOTE: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors and other glass media. FOR TECHNICAL SERVICE, CALL: (855) 498-8324 Firegear Outdoors 9230 Conservation Way... - Page 23 Lava Rock and Lava Stones are not covered by warranty For Commercial applications, the liability of Firegear Outdoors End User must provide a bill of sale, canceled check, or payment is limited to the express terms of this warranty. We expressly...
- Page 24 The TMS valve bracket can be oriented in different positions to accommodate different installations. Once the bracket and knob are installed, the knob may not be oriented in a convenient position to easily read. If this is the case, we have provided a label that can be placed over top of the existing knob for the user to easily know which way to turn the control knob to light a fire pit.
- Page 25 Optional Cutout Template for TMSI Face Plate This fire pit instruction provides an option to mount the TMSI face plate to concrete board. Use the template above to complete the installation. The TMSI face plate can be mounted vertically or horizontally. Our suggestion is to attach the face plate in a horizontal position with the gas valve on the left side.
- Page 26 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 855.498.8324 for Technical Support between the hours of 8:00AM to 5:00PM EST. Text photos to 260.255.5750 or e-mail photos to support@skytechpg.com. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____...
