Thank you for purchasing the Kontron ECX-APL0 Series embedded board. This document provides
information to allow you to quickly install this product.
Packing Checklist
1.
Take the ECX-APL0 Series embedded board out of the packing box and check if the unit is properly secure in the
plastic bag.
2.
Check the contents of the carton box: ( * : optional )
ECX-APL0 Series embedded board
Quick Installation Guide
Driver/ Manual CD

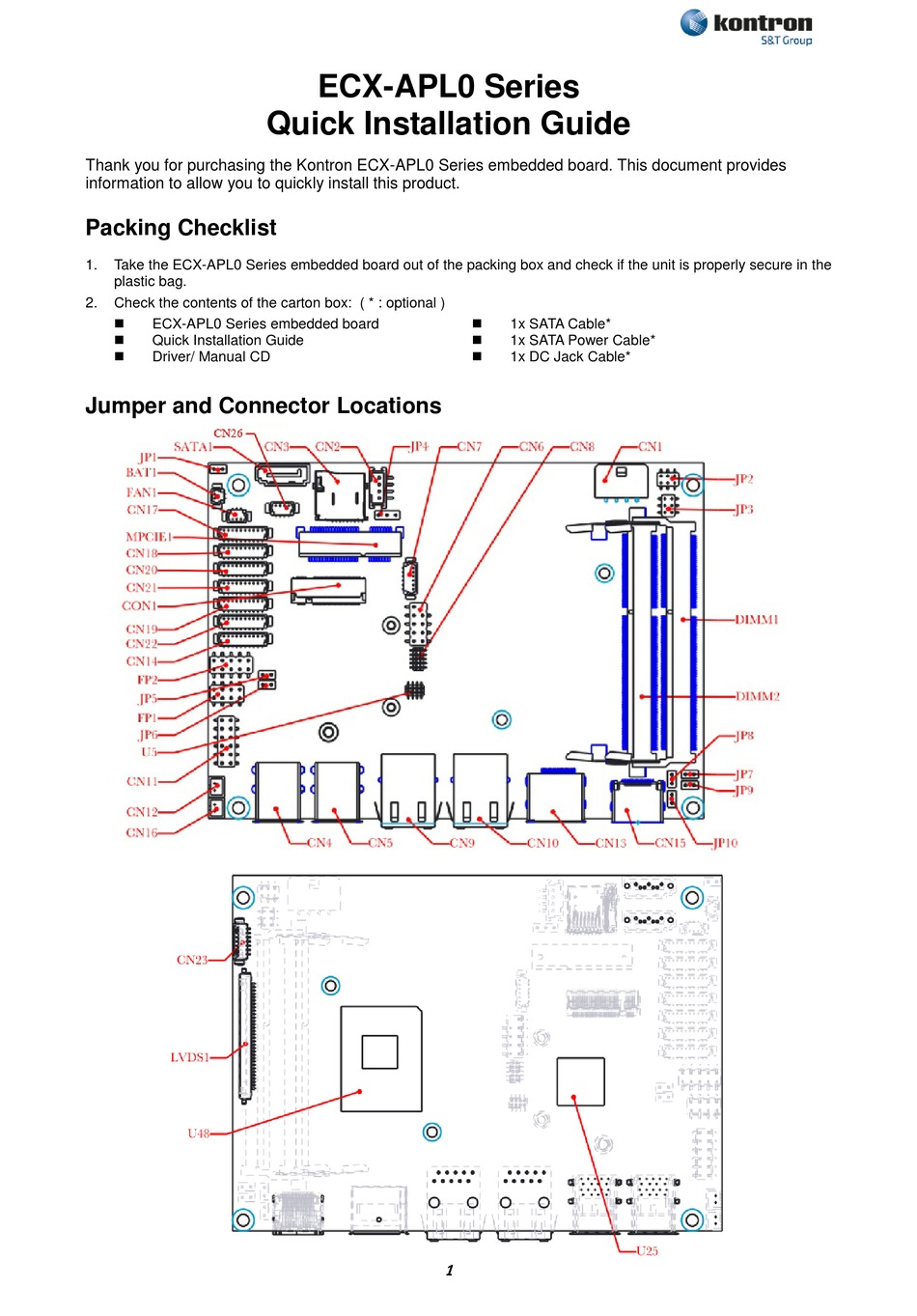

Jumper and Connector Locations
ECX-APL0 Series
Quick Installation Guide
1x SATA Cable*
1x SATA Power Cable*
1x DC Jack Cable*
1
Advertisement
Table of Contents
Related Manuals for Kontron ECX-APL0 Series
Summary of Contents for Kontron ECX-APL0 Series
- Page 1 Packing Checklist Take the ECX-APL0 Series embedded board out of the packing box and check if the unit is properly secure in the plastic bag. Check the contents of the carton box: ( * : optional ) ...
- Page 2 Jumper Settings Before applying the power to ECX-APL0 Series embedded board, please make sure all jumper settings are defaulted as the following table: Jumper List Label Function SIM CARD SELECTION Backlight Enable Selection Panel & Backlight Power Selection AT / ATX Power Mode Selection...
- Page 3 JP6 MPCIE Activity LED Pin Header Descriptiom LED+ LED- DIP 2P 1R MALE Pitch:2.54mm [Pinrex 210-91-02GB01] JP8 RTC Reset Selection Jumper Status 1-2 Open Normal Operation. 1-2 Short Clear CMOS DIP 2P 1R MALE Pitch:2.54mm [Pinrex 210-91-02GB01] JP9 USB Power Selection Jumper Status 1-2 Open...
- Page 4 USB3.0 Port 3,4 Type-A Connector CN13 DP Connector CN15 HDMI Connector Customer Service Kontron Asia Technology Inc. 5F, No. 415, Ti-Ding Blvd. Sec. 2 NeiHu District, Taipei 114, Taiwan Tel：+886-2-2799-2789 Fax：+886-2-2799-7399 ECX-APL0 Quick Installation Guide V2 (for KATW version) - P/N : 0D20ECXAPL020000...
