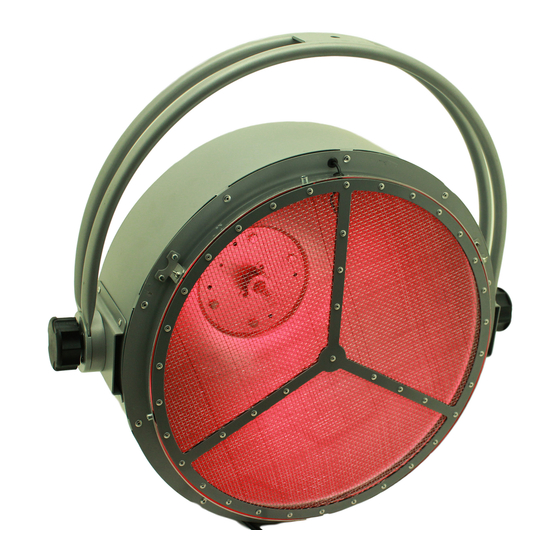

- Page 2 SQUARELED VINTAGE PAR SENIOR - LED VERSION Manual...
- Page 3 DMX512 control The wires must not come into contact with each other, otherwise the devices will not work at all, or will not work properly. Please note, the starting address depends upon which controller is being used. Only use a DMX-cable and 3-pin or 5-pin XLR plugs and connectors in order to connect the controller with the device or one device with another.
-
Page 4: Operation
OPERATION After connecting the device to the mains it is ready for operation. The display indicates the last operating mode. The operating modes can be selected by means of the display and the control buttons. All settings remain stored even if the device is disconnected from the mains. The device can be operated in stand-alone mode via the control board or in DMX-controlled mode via any commercial DMX controller. - Page 5 Manual dimmer intensity Press the MENU button to select the manual dimmer intensity (Manual). You can select the dimmer intensity of the halogen lamp (Manual Halog) as well as of the LEDs (Manual Red/Green/Blue). You can select the desired brightness values 000 -255 via the UP or DOWN button. Please press the MENU button to exit the Mode.
- Page 6 2-Channel-Mode Channel Value Function DIMMER, Halogen 000 – 255 Brightness 0-100% lamp 000 – 004 No function 005 – 011 Color 1 012 – 018 Color 2 019 – 025 Color 3 026 – 032 Color 4 033 – 039 Color 5 040 –...
- Page 7 4-Channel-Mode Channel Value Function DIMMER, Halogen 000 – 255 Brightness 0-100% lamp 2 DIMMER, RED LEDs 000 – 255 Brightness 0-100% 3 DIMMER, Green LEDs 000 – 255 Brightness 0-100% 4 DIMMER, Blue LEDs 000 – 255 Brightness 0-100% 7-Channel-Mode Channel Value Function...
-
Page 8: Technical Specifications
159 – 165 Color 23 7 COLOR 166 – 172 Color 24 PRESETS LEDs 173 – 179 Color 25 180 – 186 Color 26 187 – 193 Color 27 194 – 200 Color 28 201 – 207 Color 29 208 – 214 Color 30 215 –... - Page 9 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
