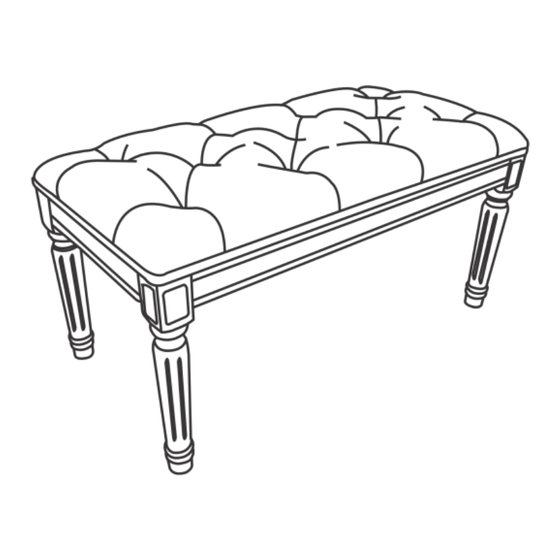

Bench Seat
O'Rings M8
STEP 1
Put the Bench Seat (A) upside-down and
detach the cover from the Velcro on the
frame, and remove the package with the legs and the
screws.
(Seat cover)
STEP 3
Re-attach the seat cover to the Velcro on
the frame as shown.
ASSEMBLY INSTRUCTIONS
Legs
Bolts M8x60mm
(Velcro)
A
B
(Package with legs B)
(Seat cover)
SEE REVERSE FOR CARE, MAINTENANCE AND WARNINGS
PARTS LIST
ASSEMBLY
STEP 2
Assemble the corner legs (B) to the seat
frame (A) using washers (C), O'Rings (D)
and bolts (E), as shown.
2 Sets of
hardware
per leg
If the legs feel uneven, unscrew loose all the bolts just
a little bit, seat on the bench and then re-tighten the
bolts.
Washers
M8x22x2mm
Allen Key M8
B
B
B
B
Advertisement
Table of Contents
Related Manuals for Techni Mobili Bench RTA-OTB04
Summary of Contents for Techni Mobili Bench RTA-OTB04
- Page 1 ASSEMBLY INSTRUCTIONS PARTS LIST Bench Seat Legs Washers M8x22x2mm O’Rings M8 Bolts M8x60mm Allen Key M8 ASSEMBLY STEP 1 STEP 2 Put the Bench Seat (A) upside-down and Assemble the corner legs (B) to the seat detach the cover from the Velcro on the frame (A) using washers (C), O’Rings (D) frame, and remove the package with the legs and the and bolts (E), as shown.
- Page 2 CARE, MAINTENANCE AND WARNINGS: THE WEIGH LIMIT ON THIS PRODUCT IS 330 Lbs. (150 Kgs) • Do not exceed the indicated weight limits. • Do not stand up on the bench or use it as ladder. • Do not allow small children to play under the bench or jump on the seat cushion. •...
