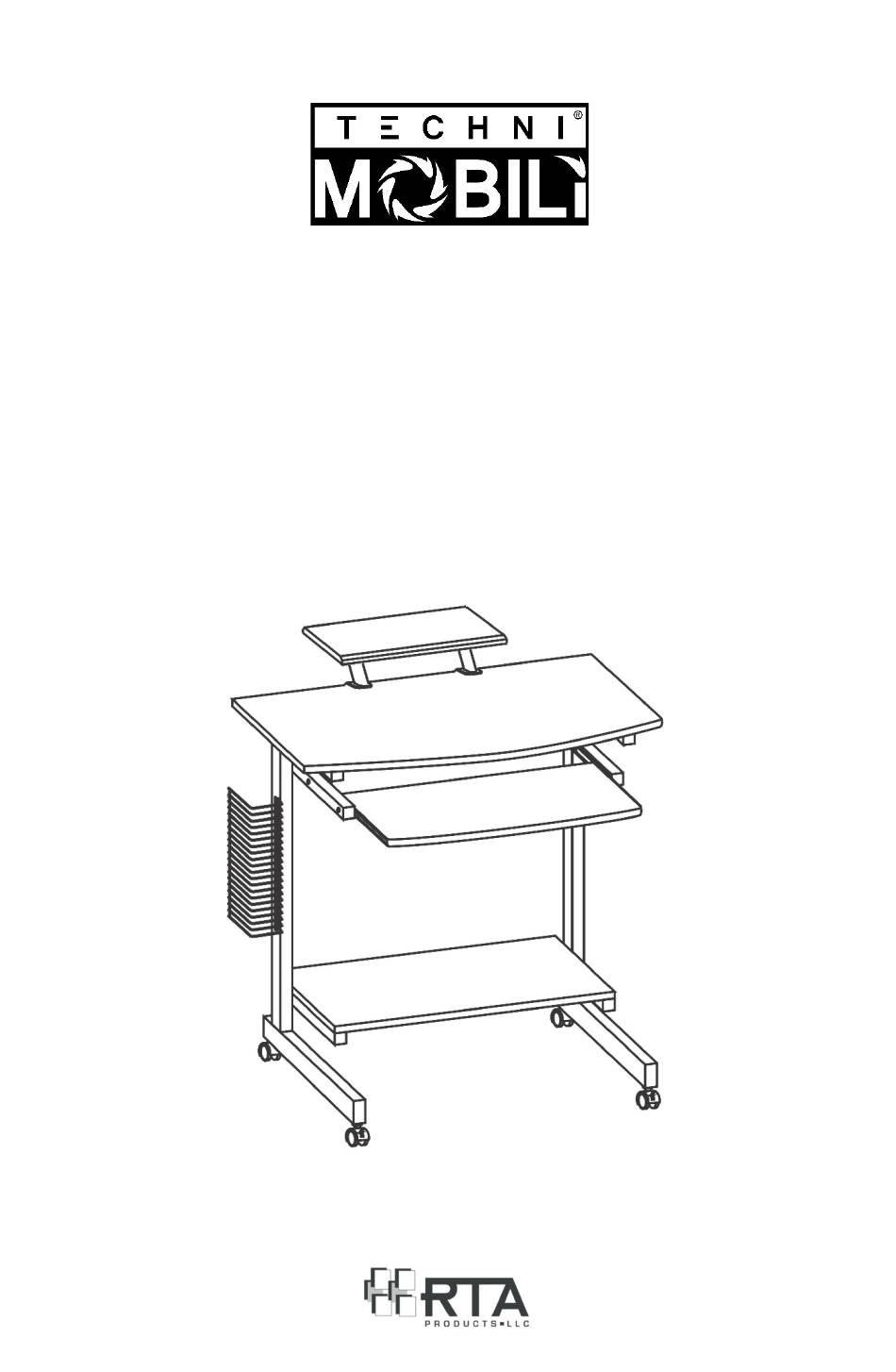

- Page 1 MODEL RTA-2018 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.032021-2...
- Page 2 RTA-2018 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
-
Page 3: Main Parts List
RTA-2018 MAIN PARTS LIST Left structure Right structure Locking caster Non-locking caster Back panel Lower panel Main panel Keyboard slider Keyboard panel Printer/Monitor CD holder (SET) panel Screw knob Support tube Protection clip... - Page 4 RTA-2018 LIST OF SCREWS AND TOOLS PART ITEM M6x45 M6x30 M6x12 ST4x12 M4x12 Hex wrench (Spanner) Allen wrench MAIN PARTS LAYOUT (FOR REFERENCE):...
- Page 5 RTA-2018 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 6: Assembly Steps
RTA-2018 ASSEMBLY STEPS STEP 1 Use the wrench to install the casters 2 to the structures 1L and 1R in the following order: Screws/Tools: ☛ The locking casters 2L go on the front bottom holes, ☛ The non-locking casters 2N go on the back bottom holes. - Page 7 RTA-2018 STEP 4 STEP 3 Assemble the main panel Assemble the lower panel 5 to the top bars of the 4 to the lower bars on the Screws/Tools: Screws/Tools: structures 1L and 1R structures 1L, 1R with with screws from...
- Page 8 RTA-2018 STEP 6 Assemble the keyboard panel 7 to the sliders 6 with screws D from underneath as shown. Screws/Tools: ST4x12 STEP 7 Assemble the CD rack 9 to either structure 1L or 1R with screws C according to your preference.
- Page 9 RTA-2018 STEP 9 Assemble the support tubes 10A to the main panel 5 in the position of your preference making sure that the protection clips 10B are positioned in between, then use the screw knobs 10C to secure the tubes as shown.
- Page 10 RTA-2018 AFTER THE ASSEMBLY IS DONE, PLEASE READ CAREFULLY THE FOLLOWING CARE AND MAINTENANCE WARNINGS: WEIGHT LIMITS 30 Lbs. (13.60 Kg) 100 Lbs. (45.36 Kg) 22 Lbs. (9.97 Kg) 30 Lbs. (13.60 Kg) • Do not exceed the indicated weight limits.
- Page 11 P.10 RTA-2018 P.10 TECHNI MOBILI WARRANTY DESKS/LAPTOP CARTS/FILE CABINETS: LIMITED 5-YEAR WARRANTY TV Stand/Entertainment Center: 2 YEAR WARRANTY RTA Products, LLC warrants to the Original Purchaser who acquired a new product from RTA Products or its authorized resellers that this product will be free from defects in its workmanship and materials, under normal use and service conditions, as described herein.
