STYLE NO:

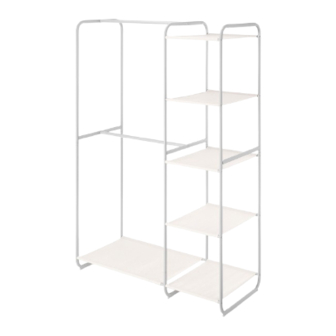

5575-11843-SIOC Double Rod Closet
A
B
1 ea
Left Bottom Frame
Left Top Frame
- no hole in rung
- holes in top and bottom rungs
F
10 ea
Small Shelf Poles
I
1 ea
Large Shelf Panel
©2020 Whitmor, Inc.
C
1 ea
Bottom Frames
- holes in sides
- no hole in rung
G
2 ea
Large Shelf Poles
J
5 ea
Small Shelf Panels
D
2 ea
1 ea
Middle Top Frame
- holes in sides
- holes in top and bottom rungs
H
2 ea
Hanging Bars
K
L
24 ea
2 ea
Large Screws
Small Screws
Part
Reference
A
B
C
D
E
F
G
H
I
J
K
L
M
N
No additional tools required.
E
1 ea
Right Top Frame
- holes in sides
- no hole in top or bottom rungs
M
N
2 ea
1 ea
Dual Threaded
Hex Wrench
Screws
F11234
F11235
F11236
F11237
F11238
F11239
F11240
F11241
F11242
F11243
F11244
F11245
F11039
F11040
Page 1
