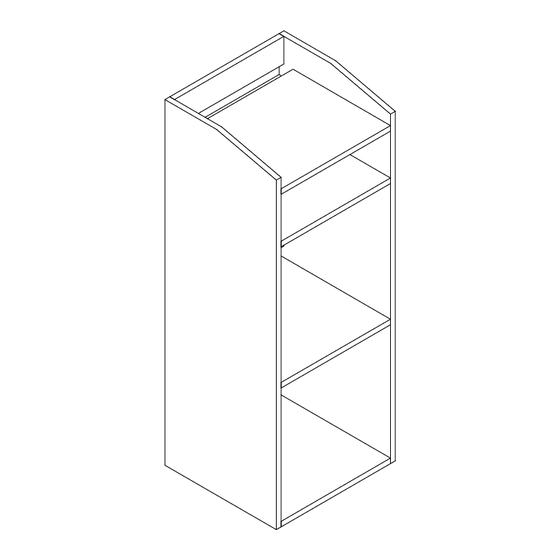

6422-12122-ALY Multi-Section Organizer - Alloy Gray
PLEASE CALL BEFORE RETURNING TO STORE!
Call Whitmor's Consumer Care Team for
replacement parts and/or assembly questions!
Toll Free in the USA: 1-888-944-8667
between 8 a.m. and 4:30 p.m. (CST), Monday - Friday
or email from anywhere: help@whitmor.com
Please include contact name, phone number, product style, description of issue and best time to contact.
8680 Swinnea Road • Suite 103 • Southaven, Mississippi 38671
Visit our web site to find more great home organizing items! www.whitmor.com
PARTS:
1
4 ea
Back Panels
2
1 ea
Top Short Shelf
3
3 ea
Lower Shelves
HARDWARE:
A
C
16 ea
16 ea
Screws
Screw Covers
B
32 ea
Dowels
2021 Whitmor, Inc.
©
4
1 ea
Left Side
5
1 ea
Right Side
Part
Reference
1
F11431
2
F11433
3
F11434
4
F11435
5
F11436
A
F11437
B
F11438
C
F11439
Tools Needed:
Phillips screwdriver
Page 1
Advertisement
Related Manuals for Whitmor 6422-12122-ALY
Summary of Contents for Whitmor 6422-12122-ALY
- Page 1 Please include contact name, phone number, product style, description of issue and best time to contact. Phillips screwdriver 32 ea Dowels 8680 Swinnea Road • Suite 103 • Southaven, Mississippi 38671 Visit our web site to find more great home organizing items! www.whitmor.com Page 1...
- Page 2 6422-12122-ALY Multi-Section Organizer - Alloy Gray 2021 Whitmor, Inc. © SAFETY PRECAUTIONS: STEP 1: Follow the drawing below to insert 2 dowels (B) into each top short shelf (2), three lower shelves (3) and four back panels (1). Note: dowel holes are slightly larger.
- Page 3 6422-12122-ALY Multi-Section Organizer - Alloy Gray 2021 Whitmor, Inc. © STEP 4: Turn the unit on the side. Follow the drawing below to insert 16 dowels (B) into the shelves and back panels. Note: dowel holes are slightly larger. STEP 5: Place the right side (6) onto the 16 dowels (B).
- Page 4 8680 Swinnea Road • Suite 103 • Southaven, MS • 38671 NEED HELP? For help with assembly, or if you are missing a part, please call Whitmor’s Consumer Care Team, 1-888-944-8667 between 8 a.m. and 4:30 p.m. (Central Standard Time) Monday through Friday.
