3 COMMISIONNING
3.1 Receipt of equipment
When receiving the material, check that the packaging has not been damaged and that the
equipment is in perfect condition.
3.2 Stopper

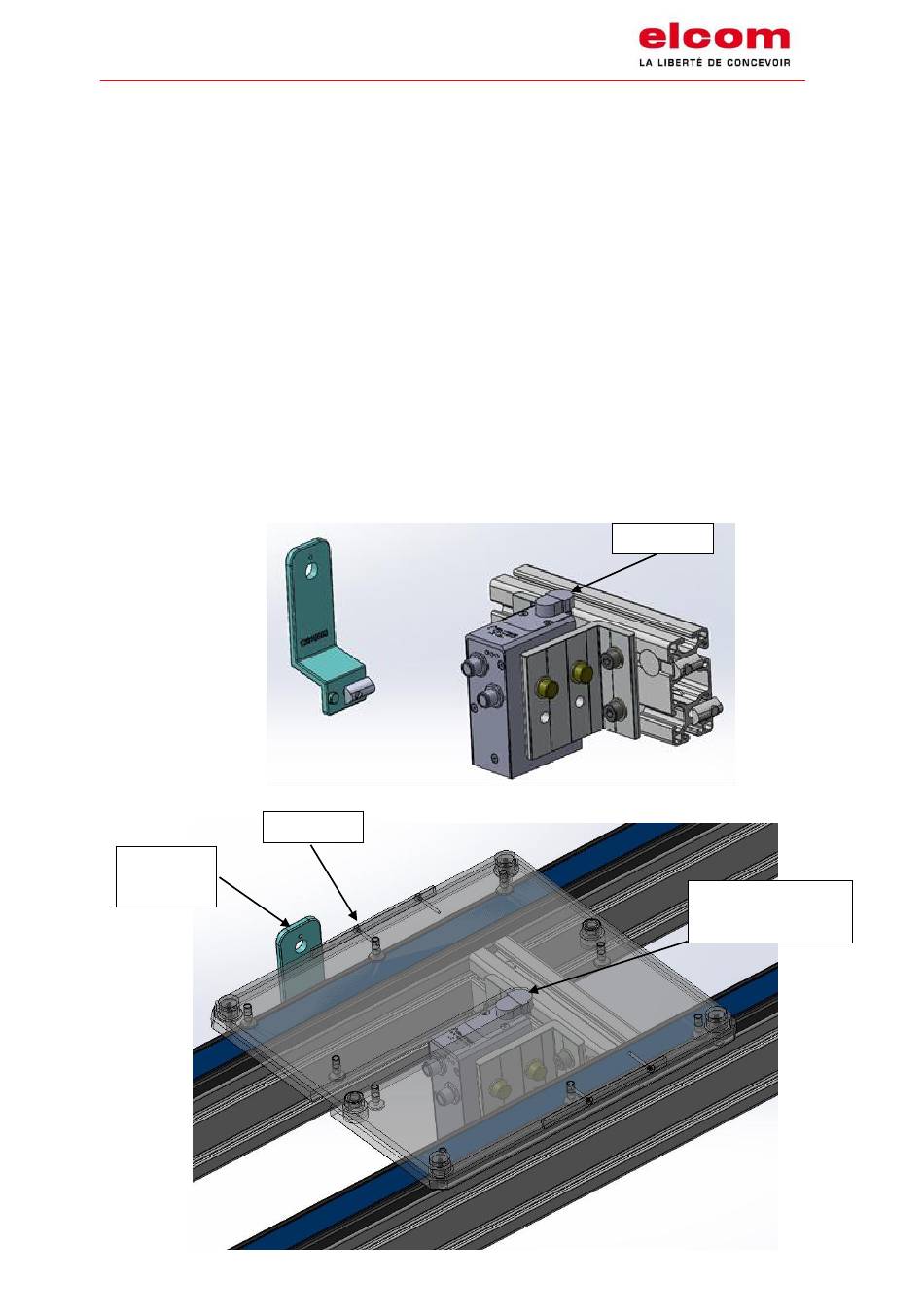

1.
lace the stopper right in the middle of the two profiles of the system.
2.
Put the workpiece carrier in contact of the stopper.
3.
Adjust the presence detection range :
-
Move the sensor support to align the sensor with the cam of the workpiece carrier (the
sensor must pass 1)
-
When the sensor returns to 0, the stop back into the groove of the workpiece carrier.
Sensor
support
I02-244 User & maintenance manual
of
TLM2000 ITS 24 V
Cam
Stopper
Work piece carrier
against the stopper
Version 03
(translation of the original manual)
Page 4 of 32
