9 WIRING OF THE DRIVE MOTOR OF INDEX
UNIT 24V

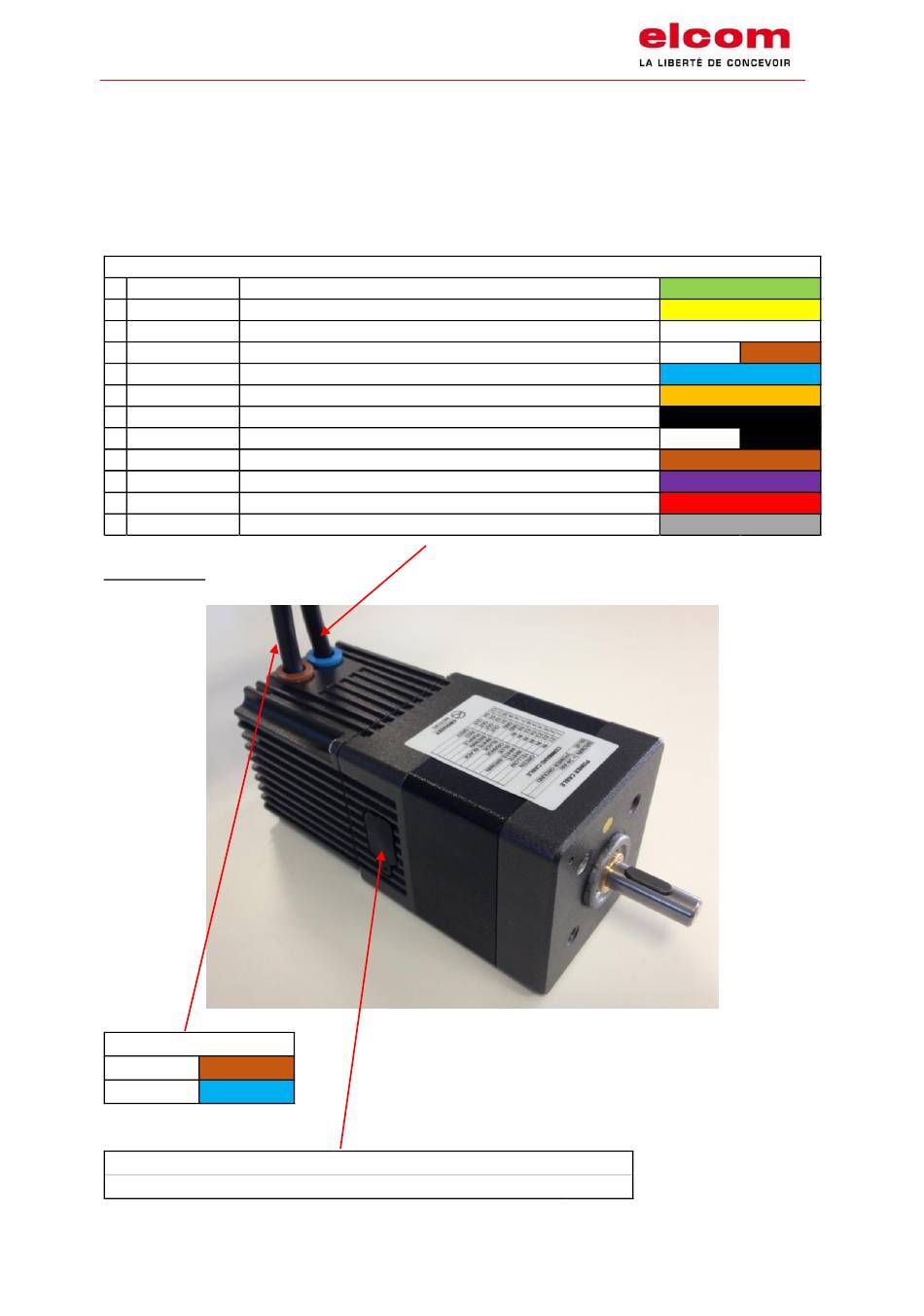

CONTROL WIRES :
1 INPUT IN-E1 24V DC for POSITION 1 : Realising carrier
2 INPUT IN-E2 24V DC for POSITION 2 : Stopping carrier
3 INPUT IN-E3 Not used
4 INPUT IN-E4 24V DC for POSITION 3 : Fastening carrier
5 INPUT IN-E5 24V DC for homing (after a start or in case of emergency stop)
6 INPUT IN-E6 24V DC for power supply and ok for control (Permanent)
7 GND
8 GND
9 OUTPUT OUT-S1 Position OK
10 OUTPUT OUT-S2 Motor not connected (failure)
11 OUTPUT OUT-S3 Rotation OK for the motor
12 OUTPUT OUT-S4 Motor failure
Information : Each time you turn on the power, wait 5 seconds before using the motor.
POWER SUPPLY WIRES :
+ 24 Vdc BROWN
0 V BLUE
CONNECTOR Micro USB for software with DCmind program @CROUZET:
To adjust: speed position torque limitations - DONE BY elcom
I02-244 User & maintenance manual
of
TLM2000 ITS 24 V
GREEN
YELLOW
WHITE
WHITE / BROWN
ORANGE
BLACK
WHITE
BROWN
PURPLE
Version 03
(translation of the original manual)
BLUE
/ BLACK
RED
GREY
Page 20 of 32
