4.7 Positioning unit
Every 1,000 hours:
Clean and lubricate guiding shafts :
•

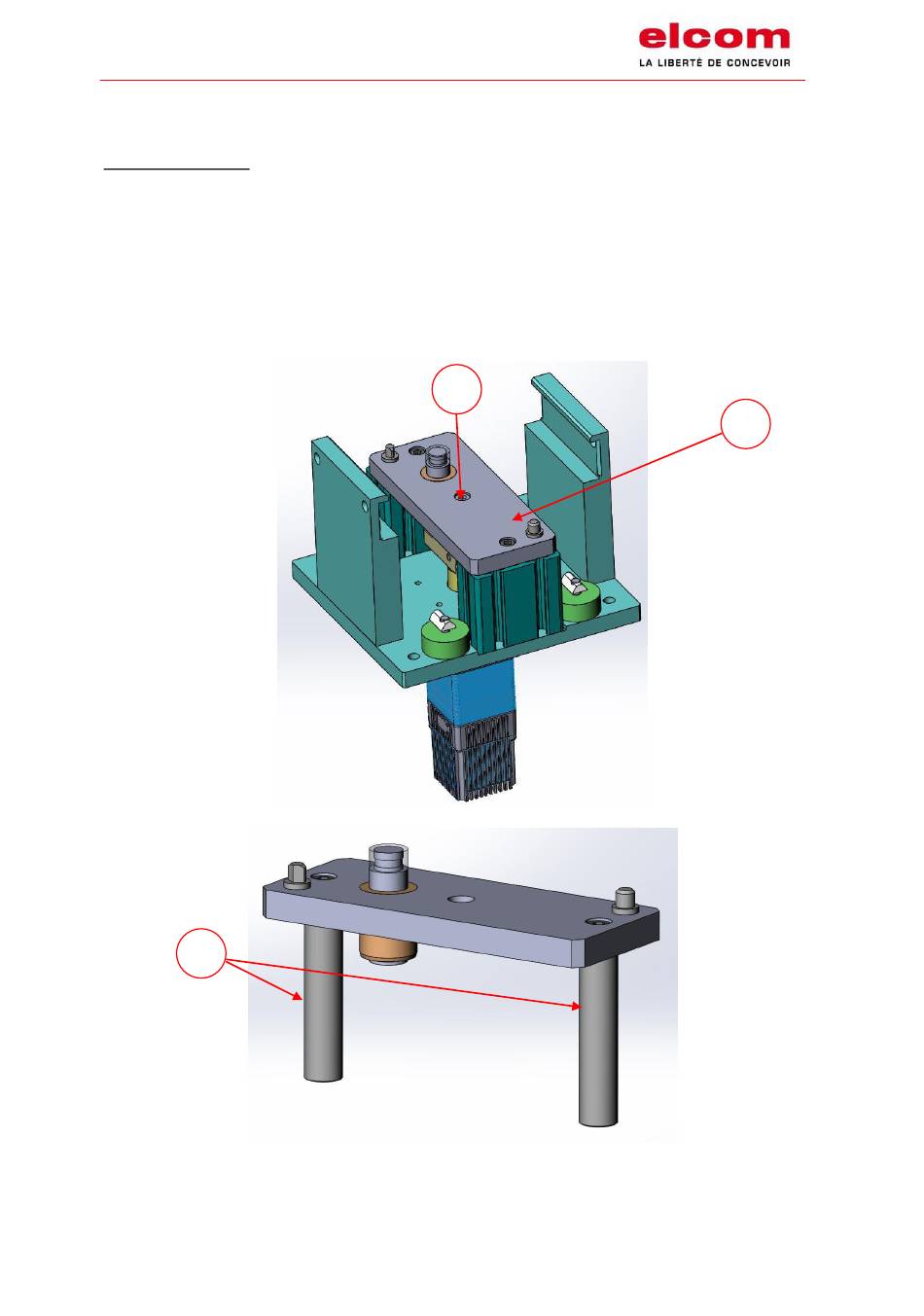

Take off the index plate Rep 1 by unscrewing the CHC M4 Rep 2.
•
Clean and lubricate the guiding shafts Rep 5 (grease reference : 800 00 002)
Tool needed, Hex keys
5
•
To reassemble, please follow the instructions in reverse order.
