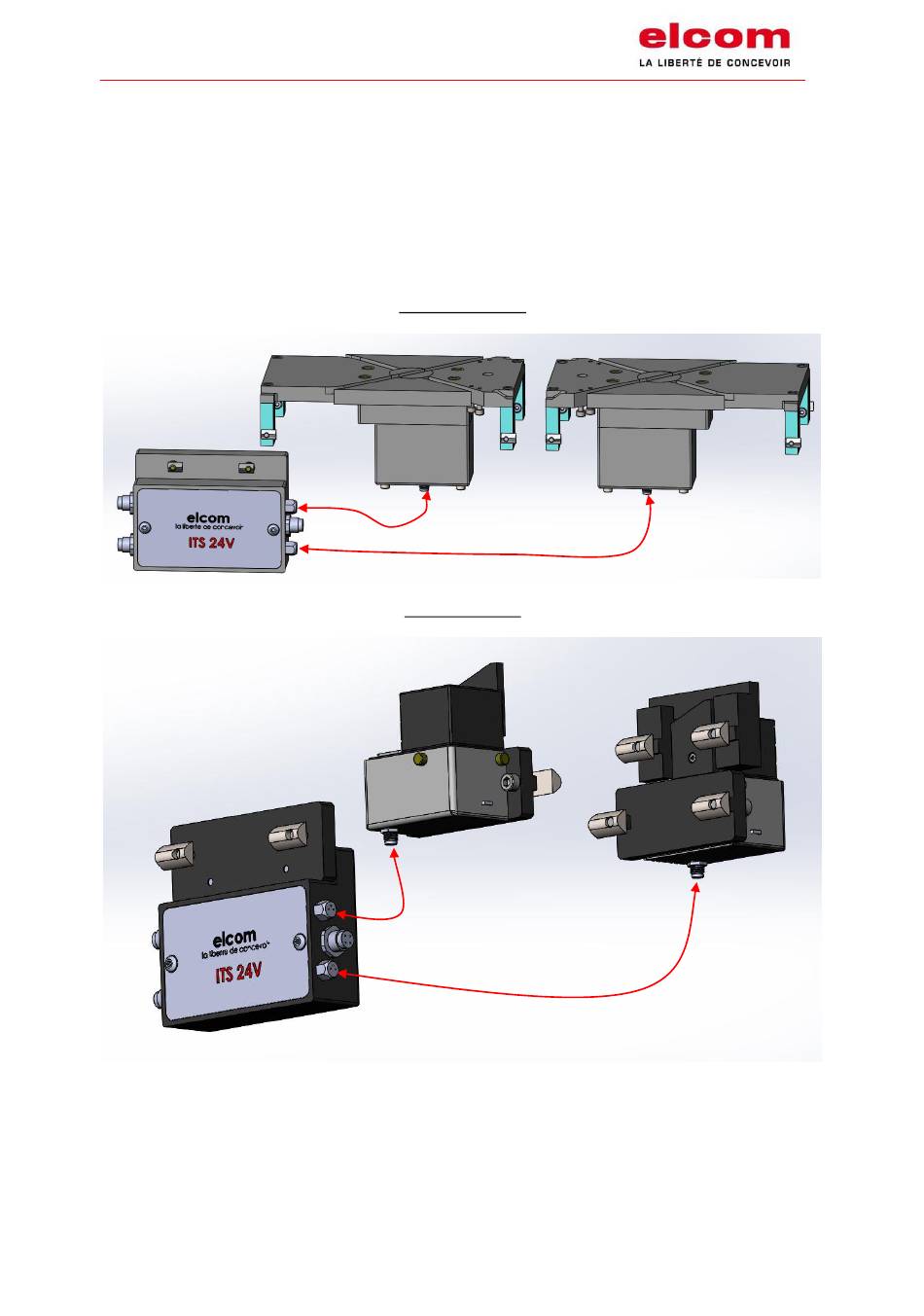

10.3 Connectic required to wire the doubles cams and derivations
To wire the double cam 24V or a derivation 24V , you'll need :
•
Two extender M8, pins with a connector male and a connector female (straight or elbow).
It makes the connection between the double cam or derivation and the controlling box.
Double cam log in
Derivation log in
I02-244 User & maintenance manual
Version 03
(translation of the original manual)
of
TLM2000 ITS 24 V
Page 26 of 32
