4 MAINTENANCE

General visual check
Approximately every 500 hours, check the following points to ensure the proper functioning of the
transfer system.

4.1 Belts wear

Regularly verify visually the state of the belt and especially the welding area

4.2 Passageways of workpiece carriers

The friction of the pins while operating can make some marks appear. Those marks may over the
long term require the part replacement.

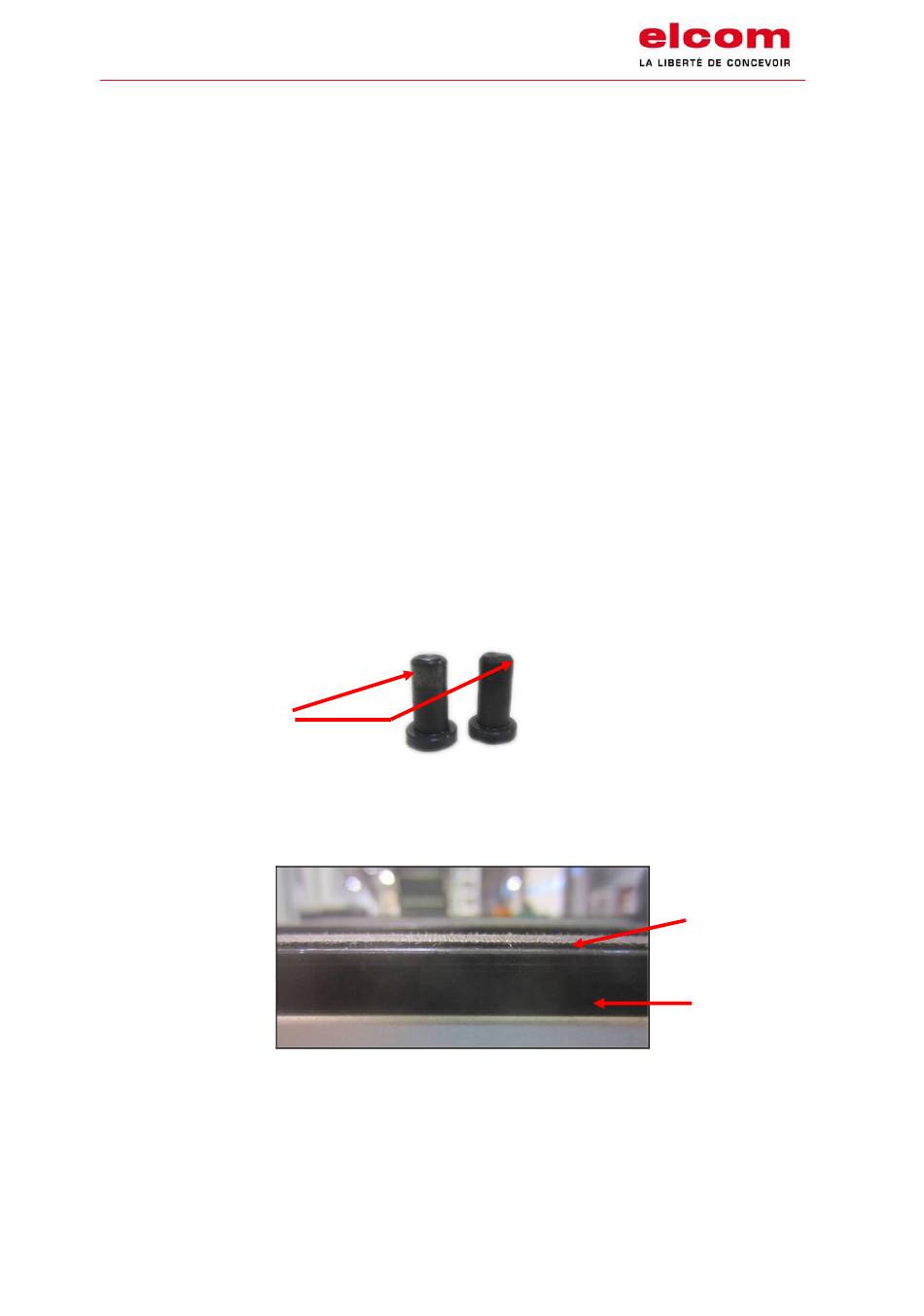

4.3 Pins

Pins are sensitive to wear, especially if the load is heavy. Wear can be noticed as soon as a loss of
efficiency in the guiding of the workpiece carrier.
Wear area of the pins

4.4 Wear of the belt guide

Belt guide must be replaced as soon as wear marks or friction on the belt start to appear.
I02-244 User & maintenance manual
of
TLM2000 ITS 24 V
Belt
Belt guide
Version 03
(translation of the original manual)
Page 9 of 32
