6 CHANGEOUT OF THE DRIVE MOTOR OF
INDEX UNIT 24V
Shut down the machine that integrate the transfer system.
❑
Switch off the machine.
❑
Disconnect the wires of the drive to replace.
❑

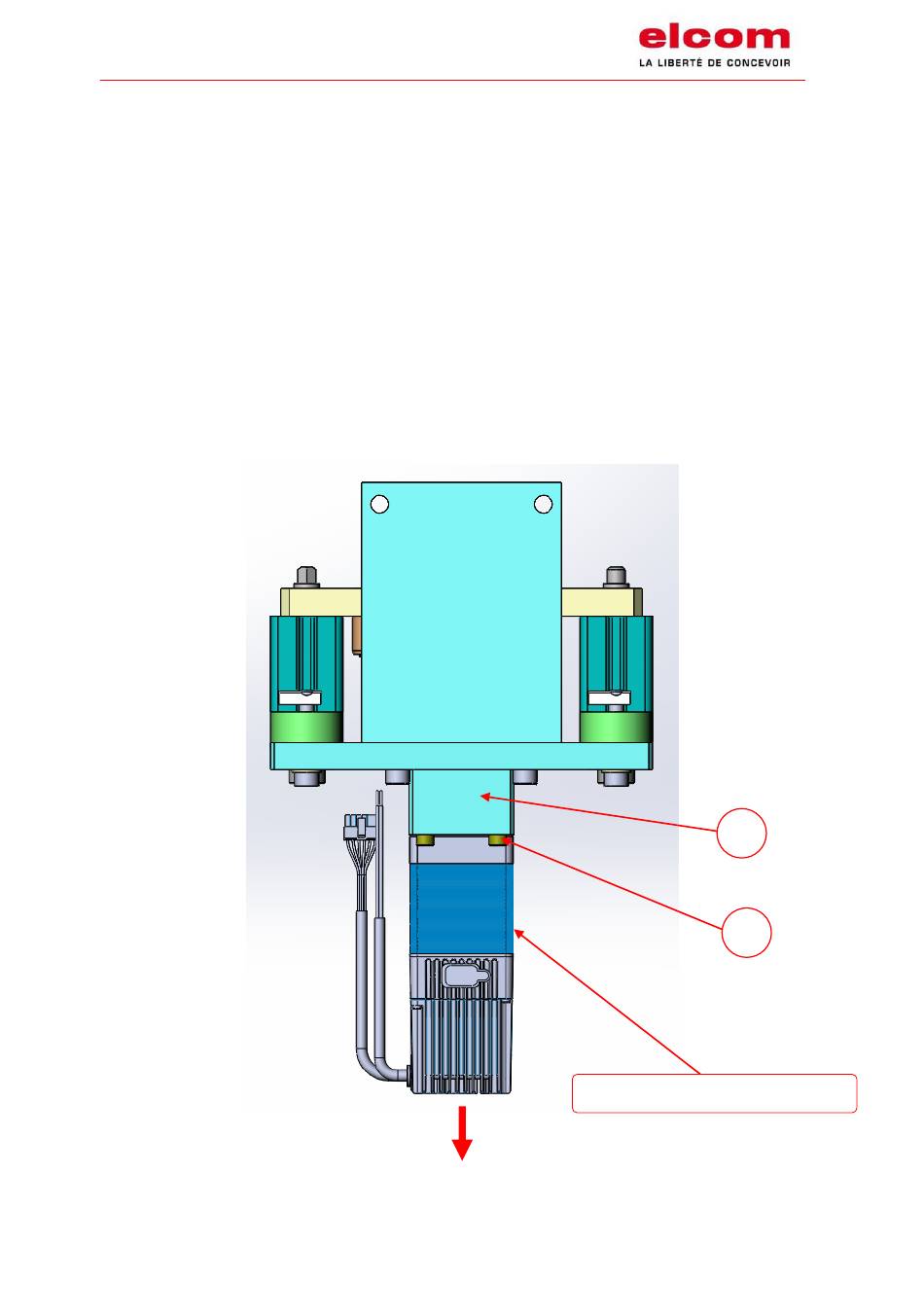

Take off the drive motor support Rep 21, fixed by 4 screws CHC M6 Rep 22 (see picture
❑
below)
Tool needed, Hex keys
Release the drive motor and its support downwards.
❑
I02-244 User & maintenance manual
of
TLM2000 ITS 24 V
Drive motor reference : 120 64 255
Version 03
(translation of the original manual)
21
22
Page 16 of 32
