5 CHANGEOUT OF THE 24V DRIVE MOTOR

Shut down the machine that integrate the transfer system.
❑
Switch off the machine.
❑
Disconnect the wires of the drive to replace.
❑

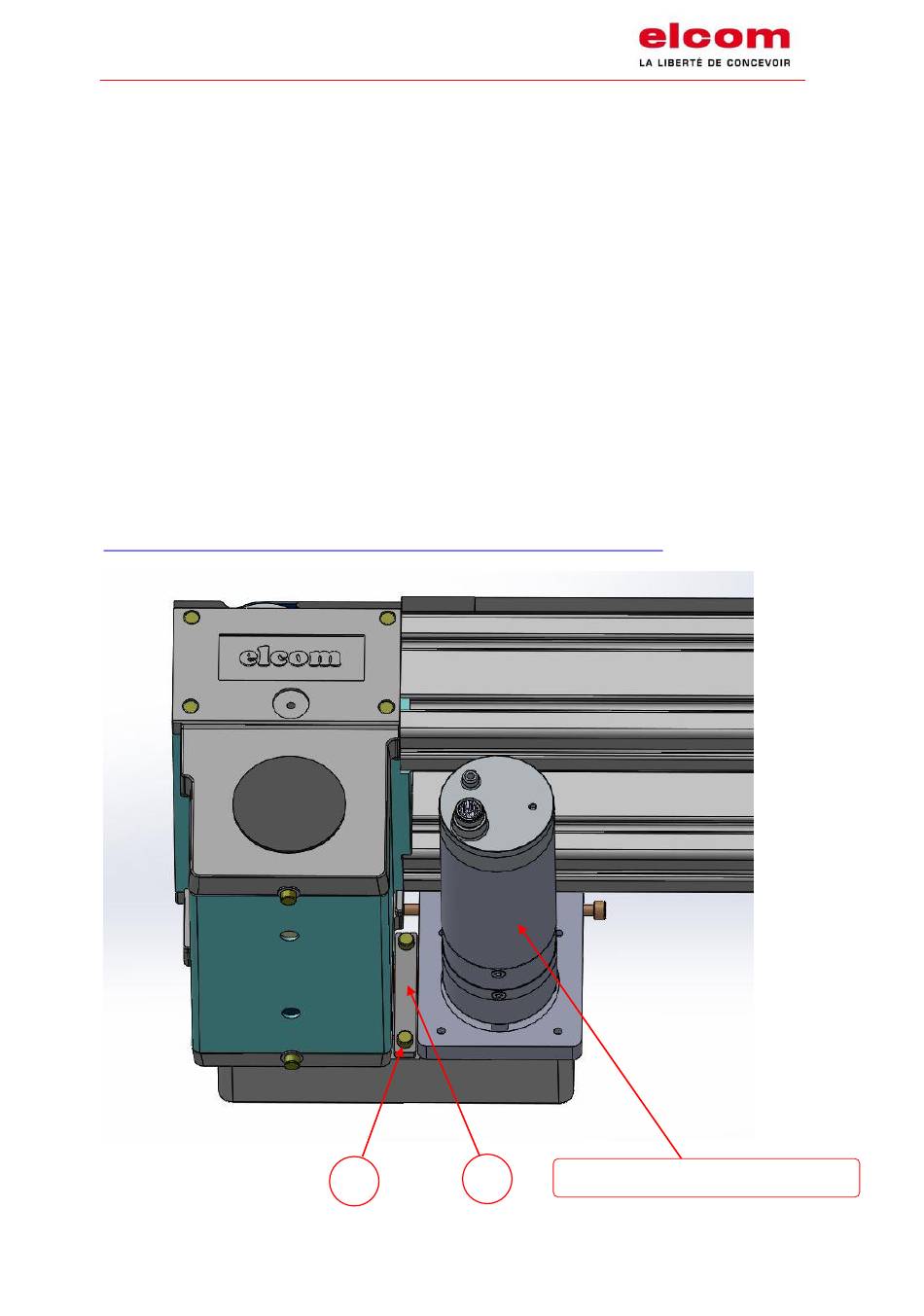

Take off the mechanical part Rep 13 between the transmission bloc and the drive motor
❑
support, fixed by 2 srews CHC M5 Rep 14 (see picture below)
Tool needed, Hex keys
Drive motor documentation :
http://img.ebmpapst.com/products/datasheets/VDC34915K4B00-1454904.pdf
I02-244 User & maintenance manual
of
TLM2000 ITS 24 V
13
14
Drive motor reference : 150 50 251
Version 03
(translation of the original manual)
Page 13 of 32
