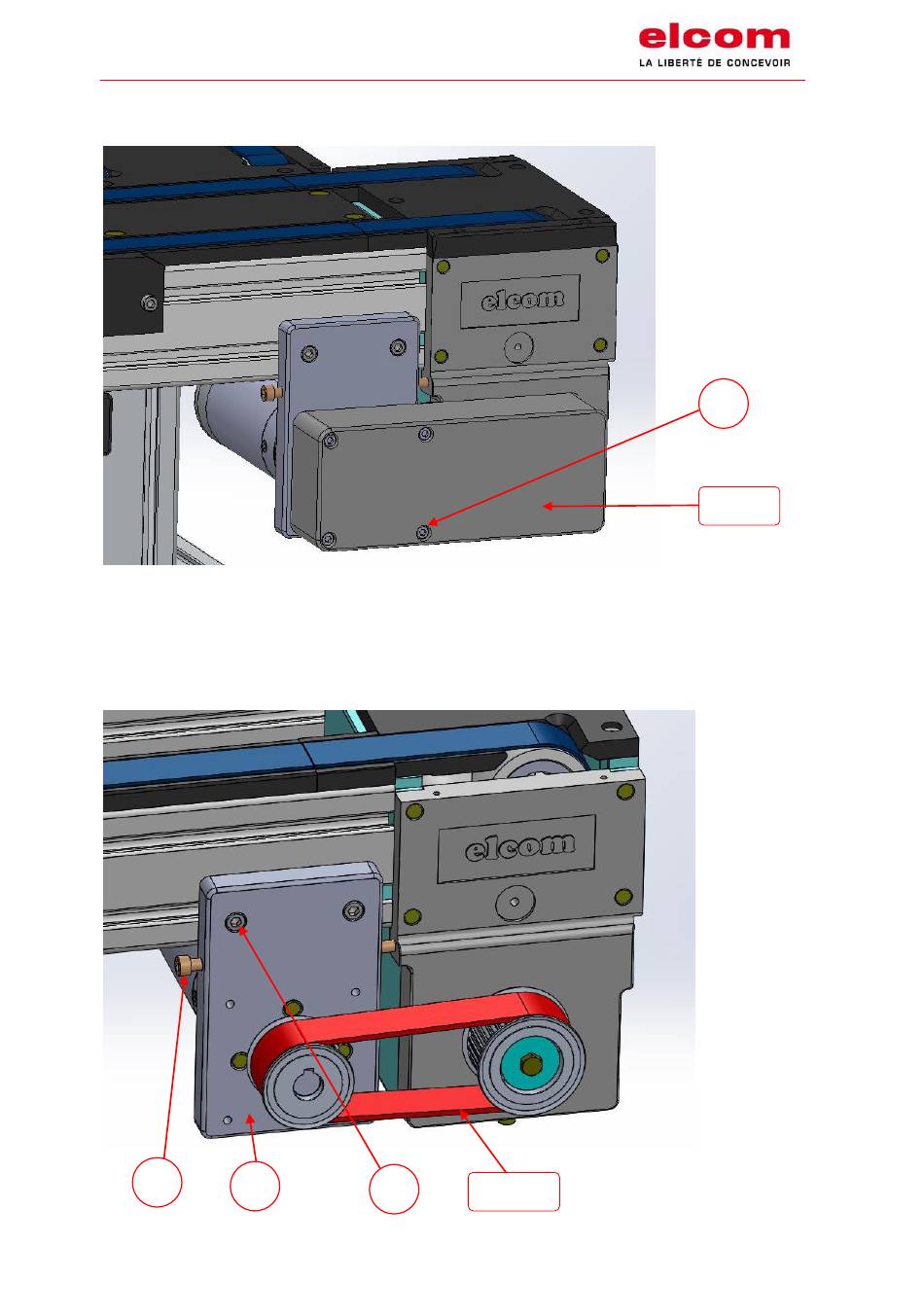

Take off the carter fixed by 4 screws CHC M5 Rep 9.
❑
Loosen the screw CHC M6 Rep 8, to ensures the tension of the belt.
❑
Loosen the 2 screws CHC M6 Rep 10, fastener the drive motor support Rep 7.
❑
Take off the belt.
❑
8
7
I02-244 User & maintenance manual
of
TLM2000 ITS 24 V
10
Belt
Version 03
9
Carter
(translation of the original manual)
Page 14 of 32
