Eros Bedside Table
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
18 x
18 x
20 x
bolt
locking nut
dowel
long screw
F
G
10 x
4 x
Long screw
L+R
Slde rail

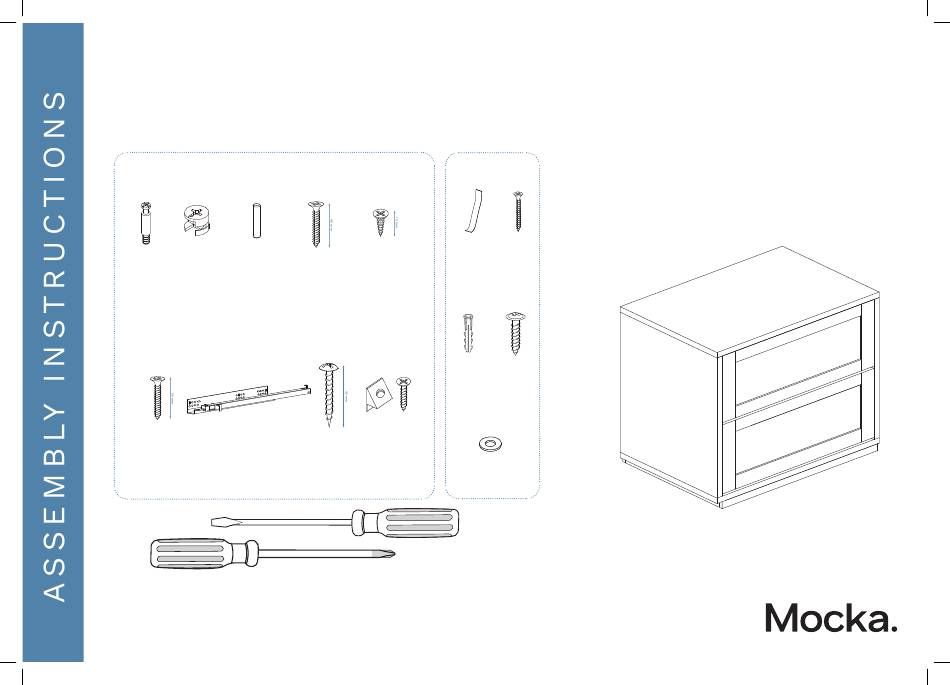

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
D
E
W
1 x
safety
strap
4 x
8 x
small screw
X
I
H
1 x
wall
anchor
Z
6 x
4 x
wedge
long screw
1 x
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
1 x
long
screw
Y
1 x
screw
Advertisement
Related Manuals for Mocka Eros Bedside Table
Summary of Contents for Mocka Eros Bedside Table
- Page 1 Eros Bedside Table Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Eros Bedside Table Attach 2 x left slide rails (G) to panel [3] and secure with 4 x small screws (E). Attach Insert 4 x bolts (A) into panel [1]. Attach 1 x wall strap (W) to panel [1] using 1 x 2 x right slide rails (G) to panel [4] and secure with 4 x small screws (E).
- Page 3 Eros Bedside Table Slide panel [13] between the grooves on panels [3] and [4] to form the back of the unit as shown. Insert 4 x dowel (C) into panels [3] and [4]. Attach panel [2] to panels [3] and Insert 4 x dowels (C) into panels [3] and [4].
- Page 4 Eros Bedside Table Panel piece x 2 Insert 8 x dowels (C) to panels [6] and attach panels [5]. Insert 4 x Attach 4 x bolts (A) into panels [5]. Tighten with a screwdriver. locking nuts (B) into panels [6]. Tighten with a screwdriver.
- Page 5 Eros Bedside Table Drawer x 2 Insert 10 x bolts (A) into panel [7]. Attach panels [8], [9] and [11] to panels Insert 4 x dowels (C) into panels [5] and [6]. Attach panels [5] and [6] to [7] and secure with 8 x locking nuts (B). Tighten with a screwdriver.
- Page 6 Eros Bedside Table Drawer x 2 Drawer x 2 Slide panels [10] between the grooves on panels [8] and [9] to form thebase of the drawer as shown. Attach panels [11] to Attach panels [12] to panels [8], [9] and [11] secure with 10 x medium screws (F).
- Page 7 Eros Bedside Table Ⅰ Ⅲ Ⅱ Ⅳ Now both drawers are made up, slide them into rails in the bedside table. Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
- Page 8 Eros Bedside Table Strap Washer Wall anchor Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
