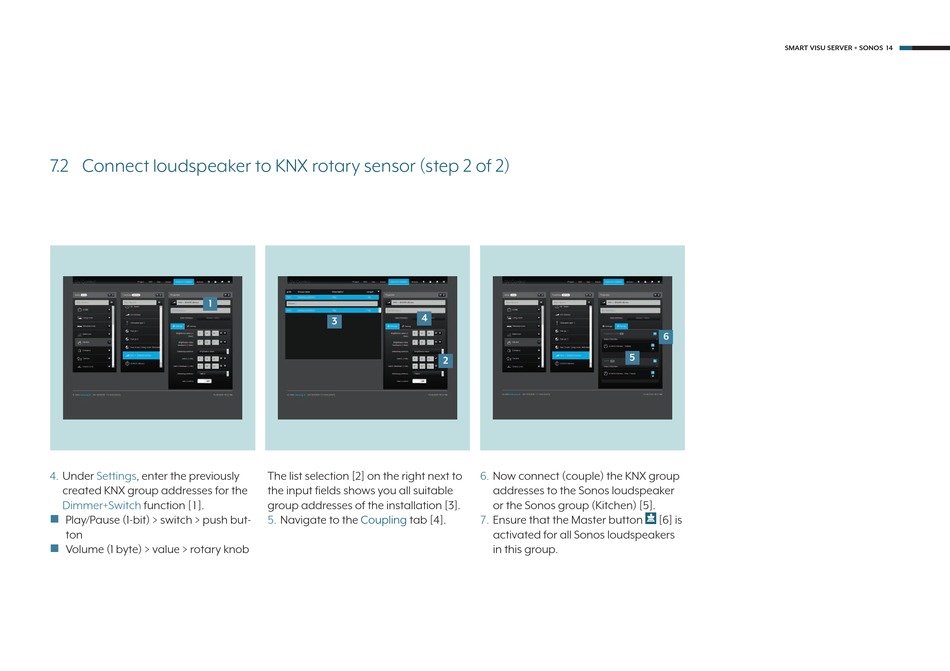

7.2 Connect loudspeaker to KNX rotary sensor (step 2 of 2)
1
4.
Under Settings, enter the previously
created KNX group addresses for the
Dimmer+Switch
function [1].
Play/Pause (1-bit) > switch > push but-
ton
Volume (1 byte) > value > rotary knob
4
3
2
The list selection [2] on the right next to
the input fi elds shows you all suitable
group addresses of the installation [3].
5.
Navigate to the
Coupling
tab [4].
5
6.
Now connect (couple) the KNX group
addresses to the Sonos loudspeaker
or the Sonos group (Kitchen) [5].
7.
Ensure that the Master button
[6] is
activated for all Sonos loudspeakers
in this group.
SMART VISU SERVER + SONOS 14
6
