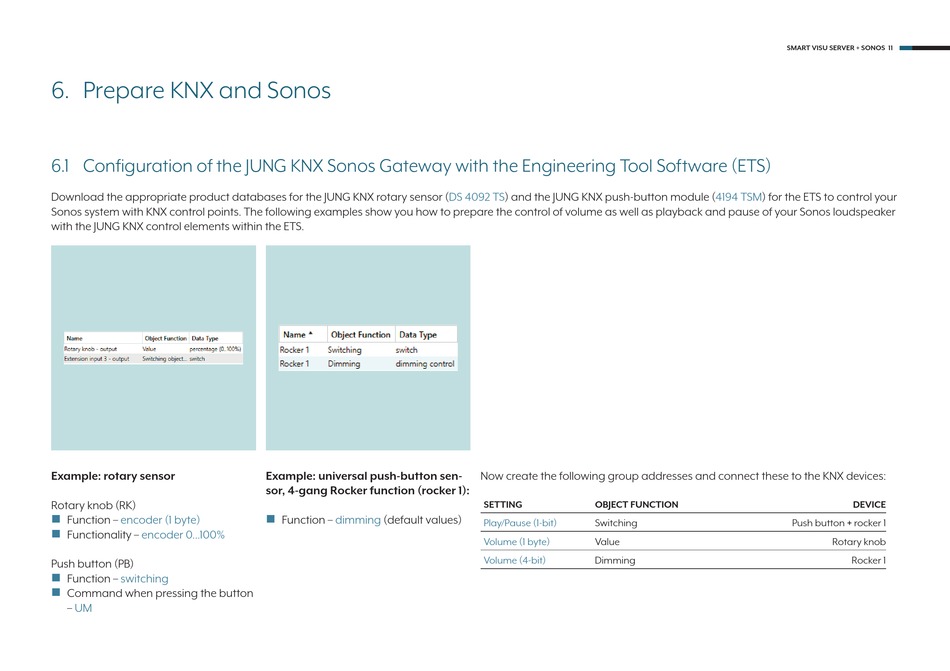

6. Prepare KNX and Sonos
6.1 Confi guration of the JUNG KNX Sonos Gateway with the Engineering Tool Software (ETS)
Download the appropriate product databases for the JUNG KNX rotary sensor
Sonos system with KNX control points. The following examples show you how to prepare the control of volume as well as playback and pause of your Sonos loudspeaker
with the JUNG KNX control elements within the ETS.
Example: rotary sensor
Rotary knob (RK)
Function –
encoder (1 byte)
Functionality –
encoder 0...100%
Push button (PB)
Function –
switching
Command when pressing the button
UM
Example: universal push-button sen-
sor, 4-gang Rocker function (rocker 1):
Function –
dimming
(default values)
(DS 4092
TS) and the JUNG KNX push-button module
Now create the following group addresses and connect these to the KNX devices:
SETTING
OBJECT FUNCTION
Play/Pause (1-bit)
Switching
Volume (1 byte)
Value
Volume (4-bit)
Dimming
SMART VISU SERVER + SONOS 11
(4194
TSM) for the ETS to control your
DEVICE
Push button + rocker 1
Rotary knob
Rocker 1
