Mocka Maya Entertainment Unit Assembly Instructions Manual page 10

Maya Entertainment Unit
Jolt Wardrobe
Assembly Instructions
17

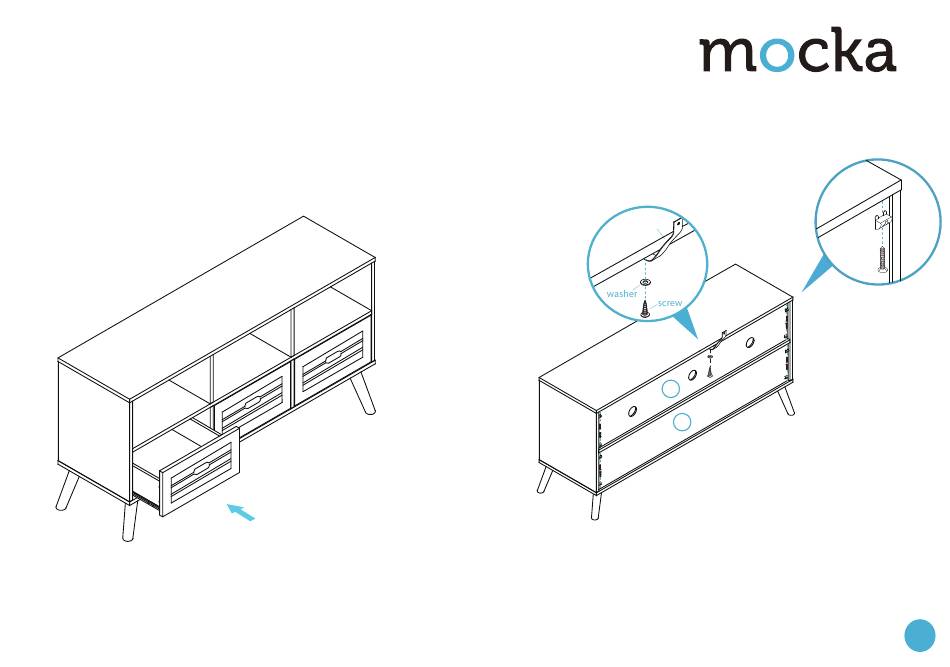

Insert the completed drawer into the main unit as shown, ensuring
they slide easily along the rails.
mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
18
strap
8
G
H
G
H
Attach 8x wedges (G) to the corners of the panels [8] and [9] as
shown, and secure with 8x small screws (H).
(V) to the top panel [1] of the back side of the unit as shown using 1x
washer (Z) and 1x screw (W). Tighten with a screwdriver.
G
V
H
G
Z
H
W
9
Attach 1x safety strap
G
H
10
