3.7.3 Supervise for short
When supervised for short, the active state in the Configurator is Open. A single
47 kΩ resistor is required for short supervision as shown below.
Note:
3.7.4 Supervised for open and short
When supervised for both open and short, the active state cannot be open,
therefore the active state in the Configurator is Close.
Two 22 kΩ resistors are required for supervision.
Note:
TX3 Nano Installation Manual
Copyright 2018
Active when open

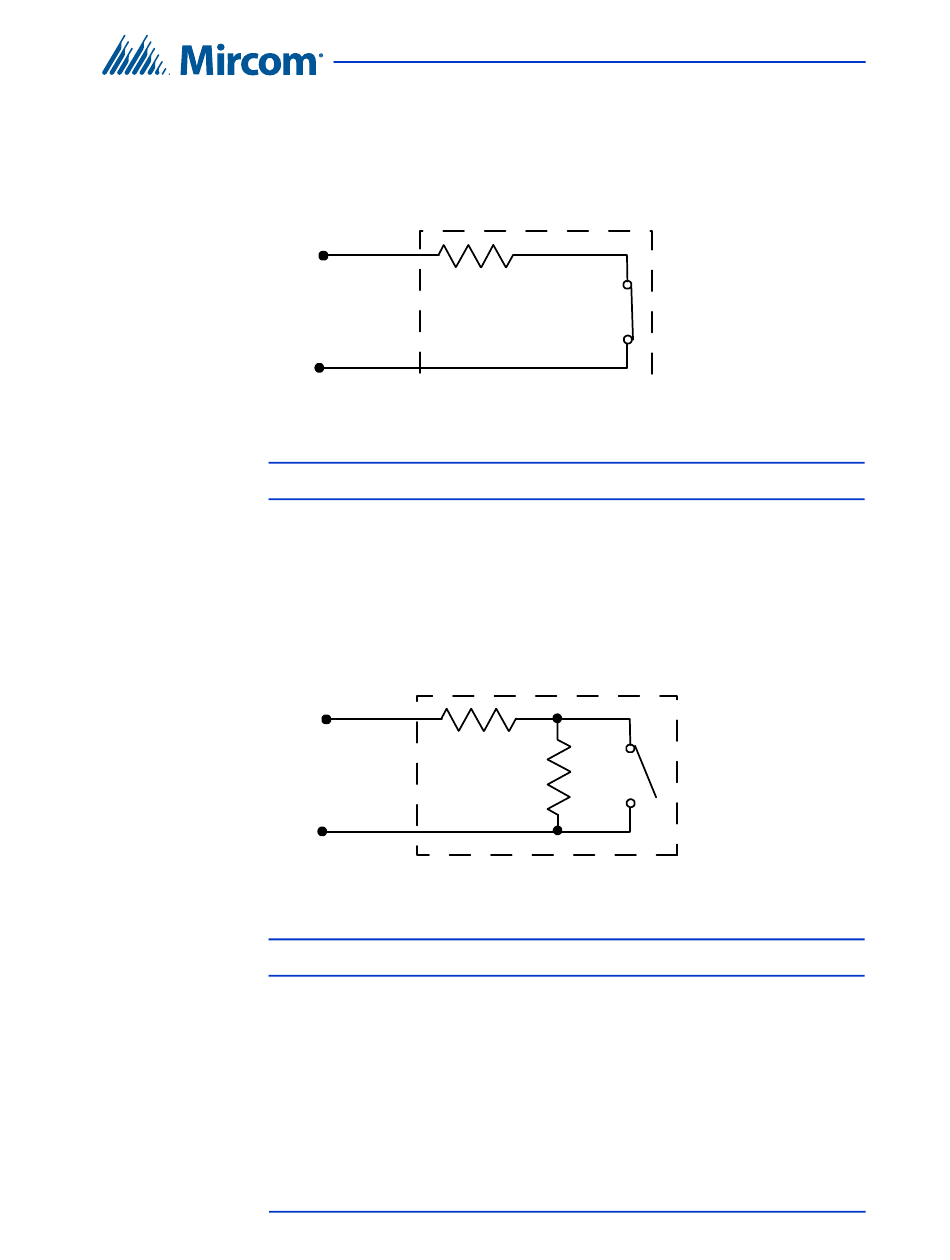

Figure 17. Input - Supervised for Short

The switch's active state cannot be a short state.
Active when short
22 K ohms
22 K ohms

Figure 18. Input - Supervised for Open and Short

The switch's active state cannot be an open state.
Wiring
21
