Install the Mounting Plate
Warning: Do not mount the TX3 Nano in direct sunlight.
•
Note:
You can mount the TX3 Nano in two ways:
1.
2.
TX3 Nano Installation Manual
Copyright 2018
Mount the mounting plate the right way up. The 2 hooks are on top and the
screw hole is on the bottom as shown in Figure 3.
The mounting plate comes with a rubber seal around the edge
(Figure 4). Do not remove, cut, or damage this rubber seal in any
way.
Bottom

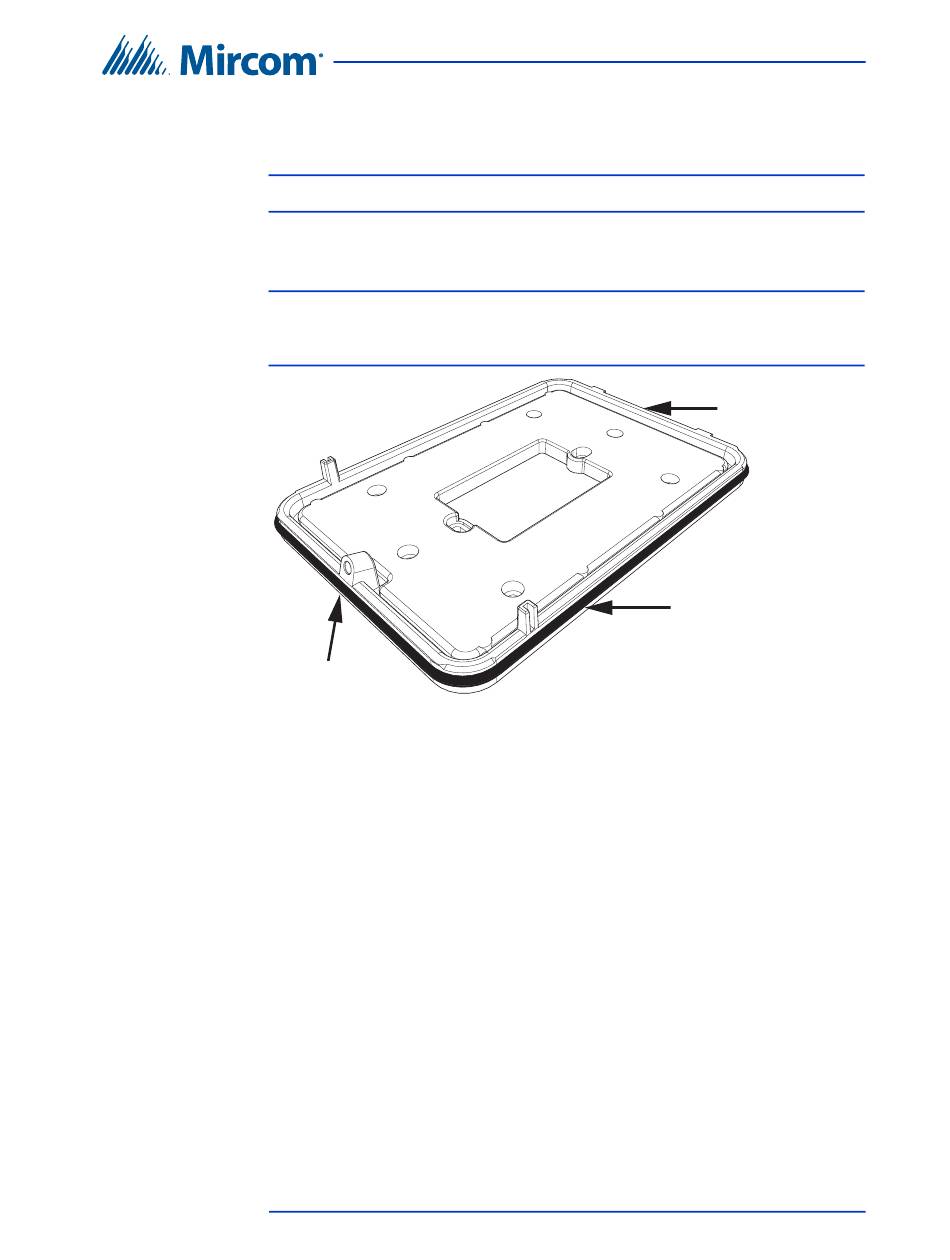

Figure 4. Do not damage the rubber seal
To the optional TX3-NANO-BB surface mounting box (section 2.4.1)
To the wall (section 2.4.2)
Mounting
Top
Rubber seal
