Insert a SIM Card
1.
2.
Warning: Make sure that the SIM card does not fall into the TX3 Nano.
3.
3.5

Screw for Adjusting Camera Tilt

Tighten this screw to tilt the camera down, and loosen the screw to tilt the camera
up.
The camera tilt can be adjusted up to 10° vertically.
3.6

Inputs

For details on programming the inputs, see LT-1194 "TX3 Nano Configuration
Manual".
3.6.1 Input 1: Door contact
By default, Input 1 is configured as a door contact. Connect Input 1 to the door
sense switch. When the door is open the input is active and when the door is
closed the input is inactive.
TX3 Nano Installation Manual
Copyright 2018
Slide the metal holder down and pull out.
Carefully insert the SIM card in the slot with the label facing out and the
notch on the upper left.
Close the metal holder and slide it up.

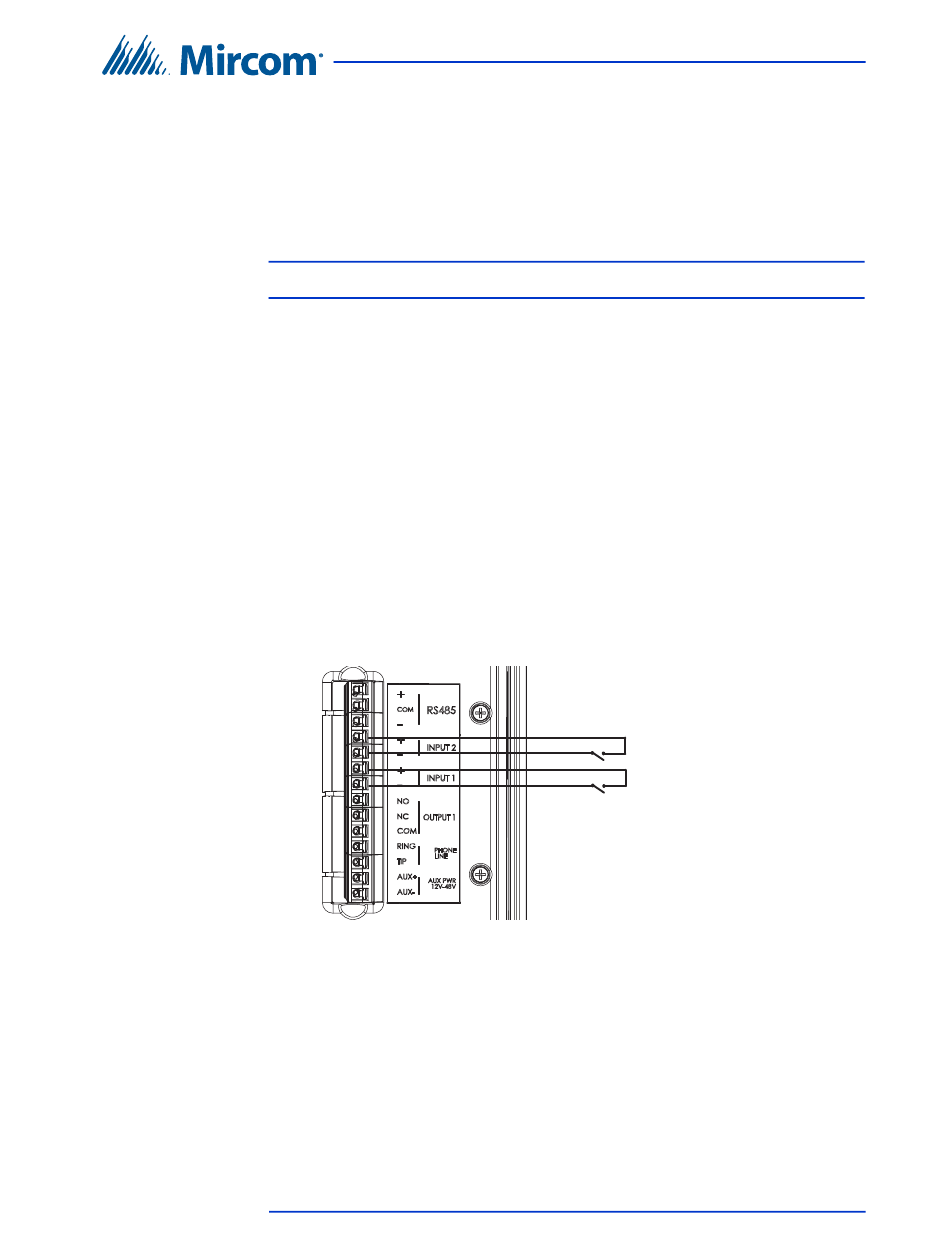

Figure 15. Input terminal sample connections

General purpose
Door contact
Wiring
