Fasten the TX3 Nano onto the Mounting Plate
Note:
1.
TX3 Nano Installation Manual
14
Copyright 2018
If you are using an electrical gang box, use 2 screws to fasten the mounting
plate to the gang box, as shown in Figure 8.

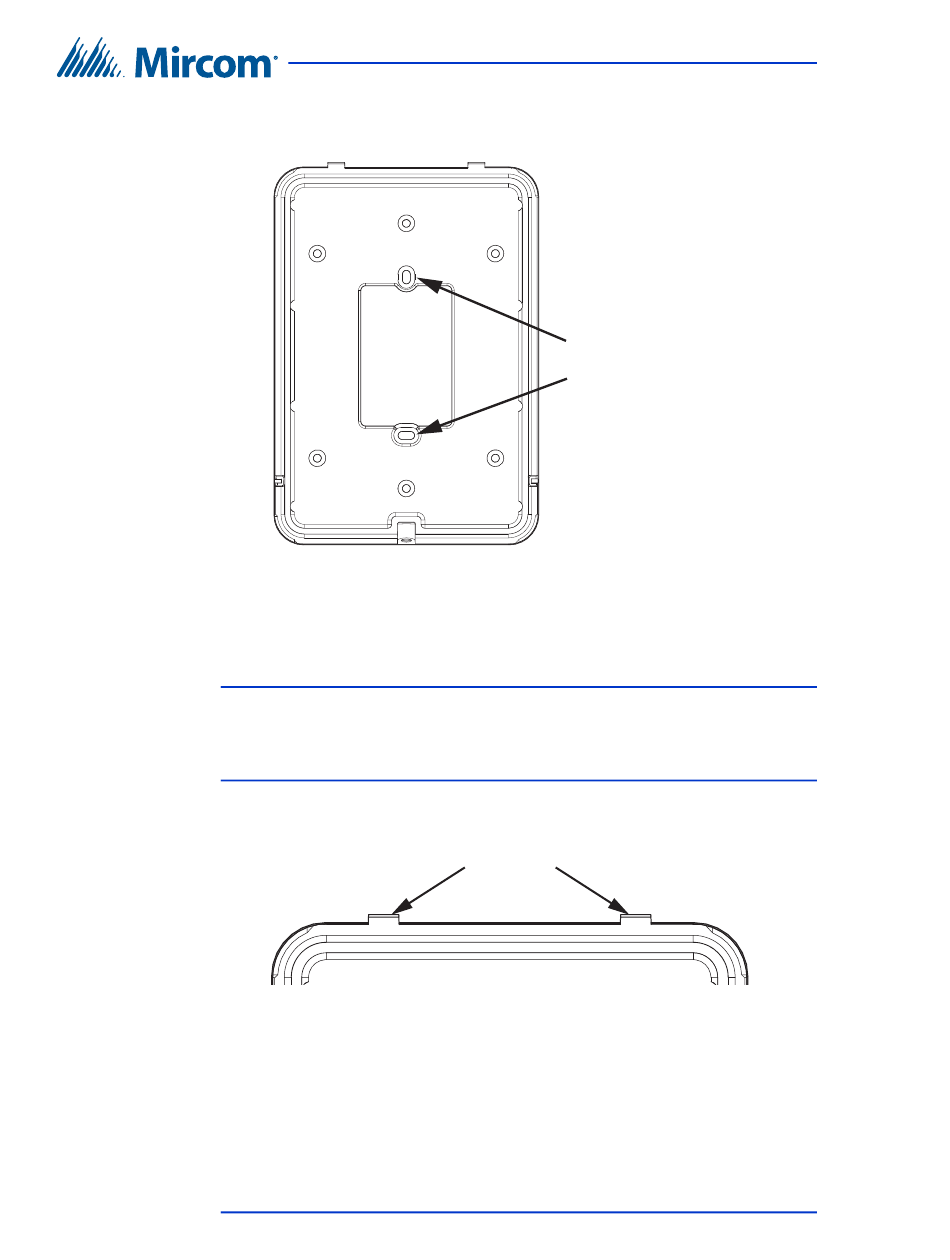

Figure 8. Holes for gang box
The TX3 Nano has a tamper feature. If it is powered on and not
mounted on the mounting plate, a tone sounds. The tone stops
sounding when it is mounted. The TX3 Nano does not operate until
the tamper alarm is restored.
Fit the top of the TX3 Nano onto the two hooks on the mounting plate.
Figure 9. Hooks at the top of the mounting plate
Holes for single
gang box
Hooks
Mounting
