Dimensions

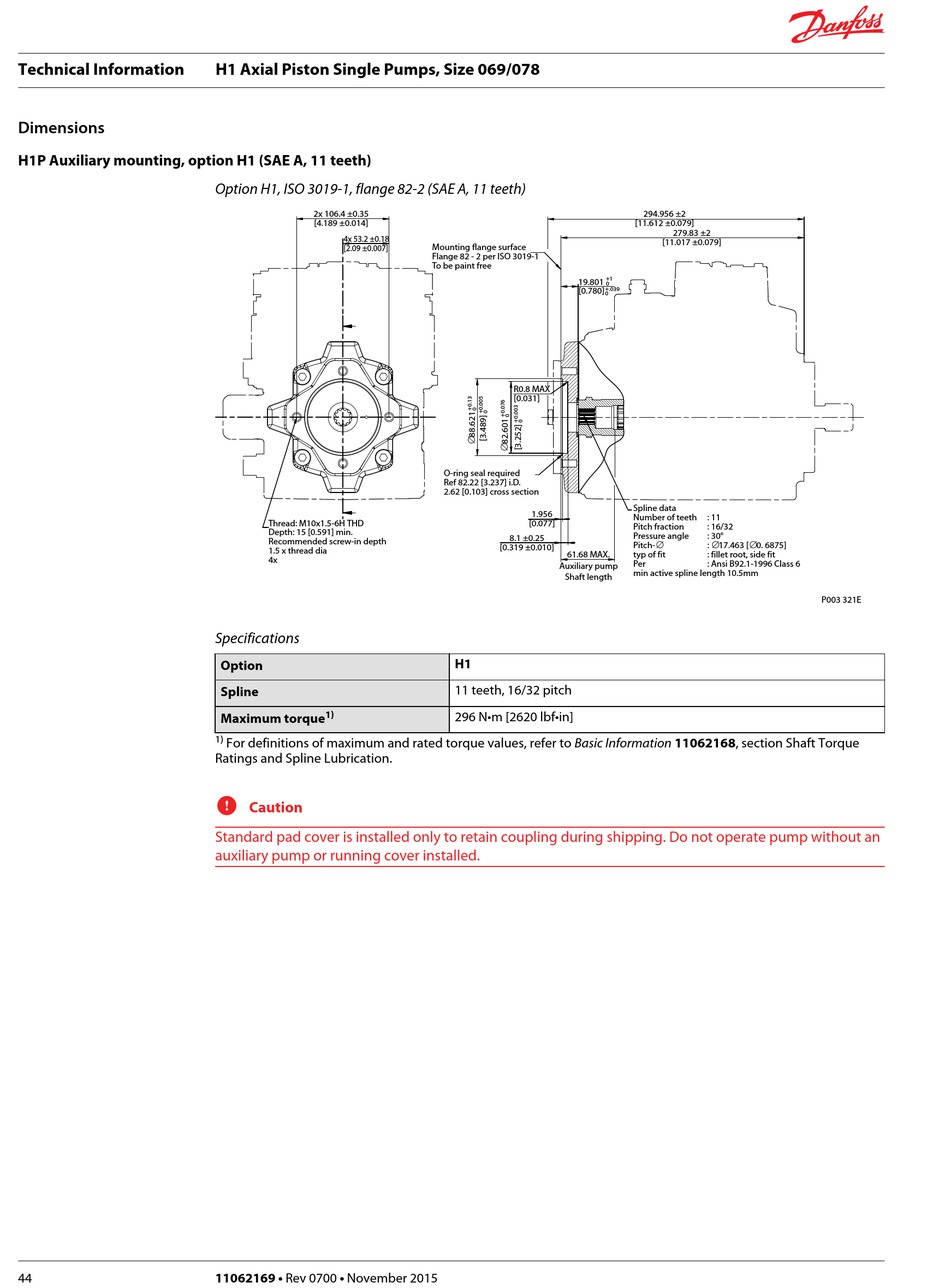

H1P Auxiliary mounting, option H1 (SAE A, 11 teeth)

44
H1 Axial Piston Single Pumps, Size 069/078
Option H1, ISO 3019-1, flange 82-2 (SAE A, 11 teeth)
2x 106.4 ±0.35
[4.189 ±0.014]
4x 53.2 ±0.18
[2.09 ±0.007]
Thread: M10x1.5-6H THD
Depth: 15 [0.591] min.
Recommended screw-in depth
1.5 x thread dia
4x
Specifications
Option
Spline
1)
Maximum torque
1)
For definitions of maximum and rated torque values, refer to Basic Information 11062168, section Shaft Torque
Ratings and Spline Lubrication.
C
Caution
Standard pad cover is installed only to retain coupling during shipping. Do not operate pump without an
auxiliary pump or running cover installed.
11062169 • Rev 0700 • November 2015
Mounting flange surface
Flange 82 - 2 per ISO 3019-1
To be paint free
+1
19.801
0
[0.780] +.039
0
R0.8 MAX
[0.031]
O-ring seal required
Ref 82.22 [3.237] i.D.
2.62 [0.103] cross section
1.956
[0.077]
8.1 ±0.25
[0.319 ±0.010]
61.68 MAX.
Auxiliary pump
Shaft length
H1
11 teeth, 16/32 pitch
296 N•m [2620 lbf•in]
294.956 ±2
[11.612 ±0.079]
279.83 ±2
[11.017 ±0.079]
Spline data
Number of teeth : 11
Pitch fraction : 16/32
Pressure angle : 30°
: ∅17.463 [∅0. 6875]
Pitch-∅
typ of fit : fillet root, side fit
Per : Ansi B92.1-1996 Class 6
min active spline length 10.5mm
P003 321E
