Series II Installation Manual Addendum
DIP Switch Functionality

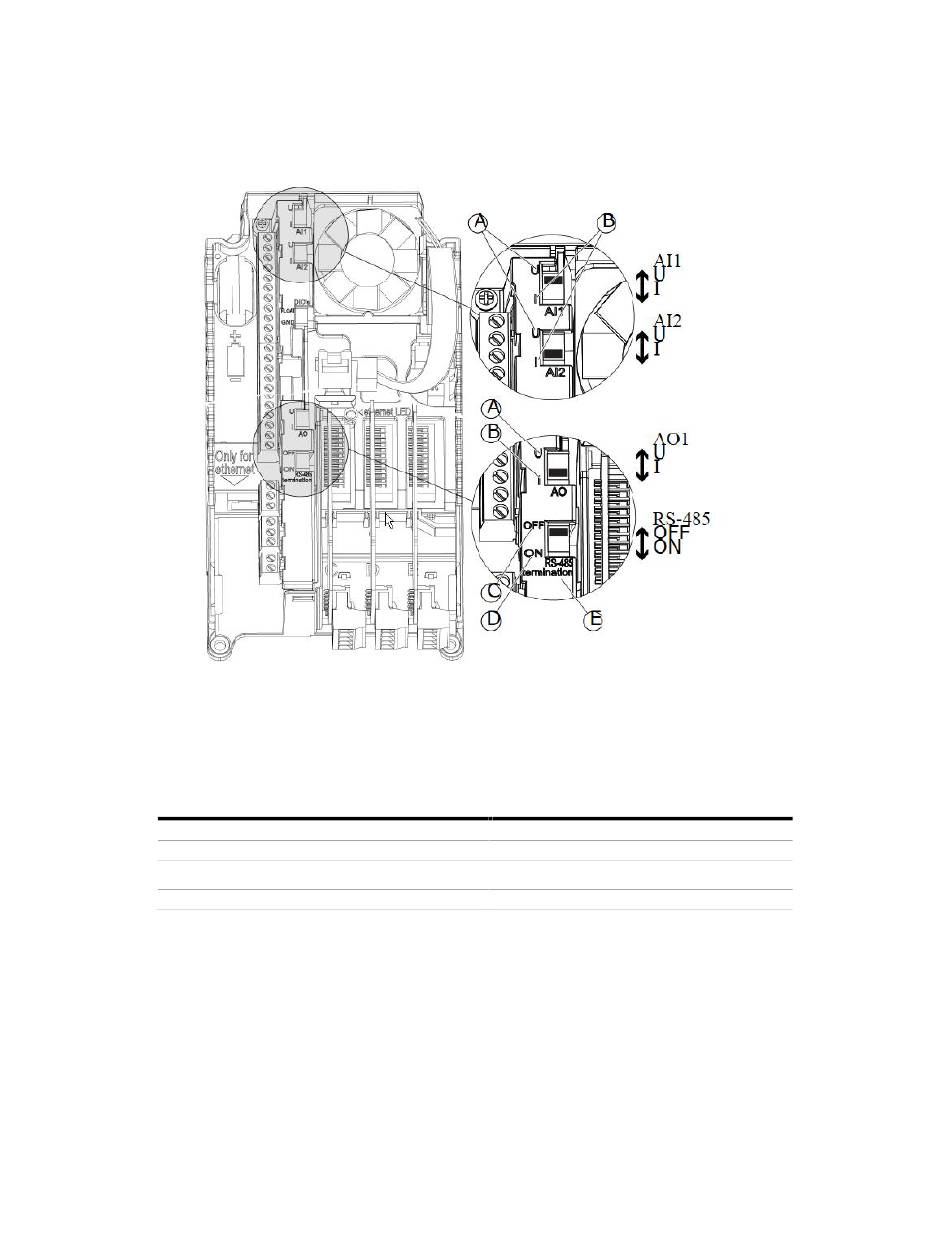

You can make 2 selections with the DIP switches for specified terminals. The switches have 2 positions:
up and down. You can see the location of the DIP switches and the possible selections below.
A. The voltage signal (U), 0-10 V input
B. The current signal (I), 0-20 mA input
C. OFF
D. ON
E. The RS-485 bus termination
The DIP switch
AI1
AI2
AO1
RS485 bus termination
The default position
I
I
I
OFF
