Led Status Indication; Control Board Terminals; Control Wiring - Johnson Controls VSD II Series Installation Manual Addendum

LIT-12012316
Effective May 2017

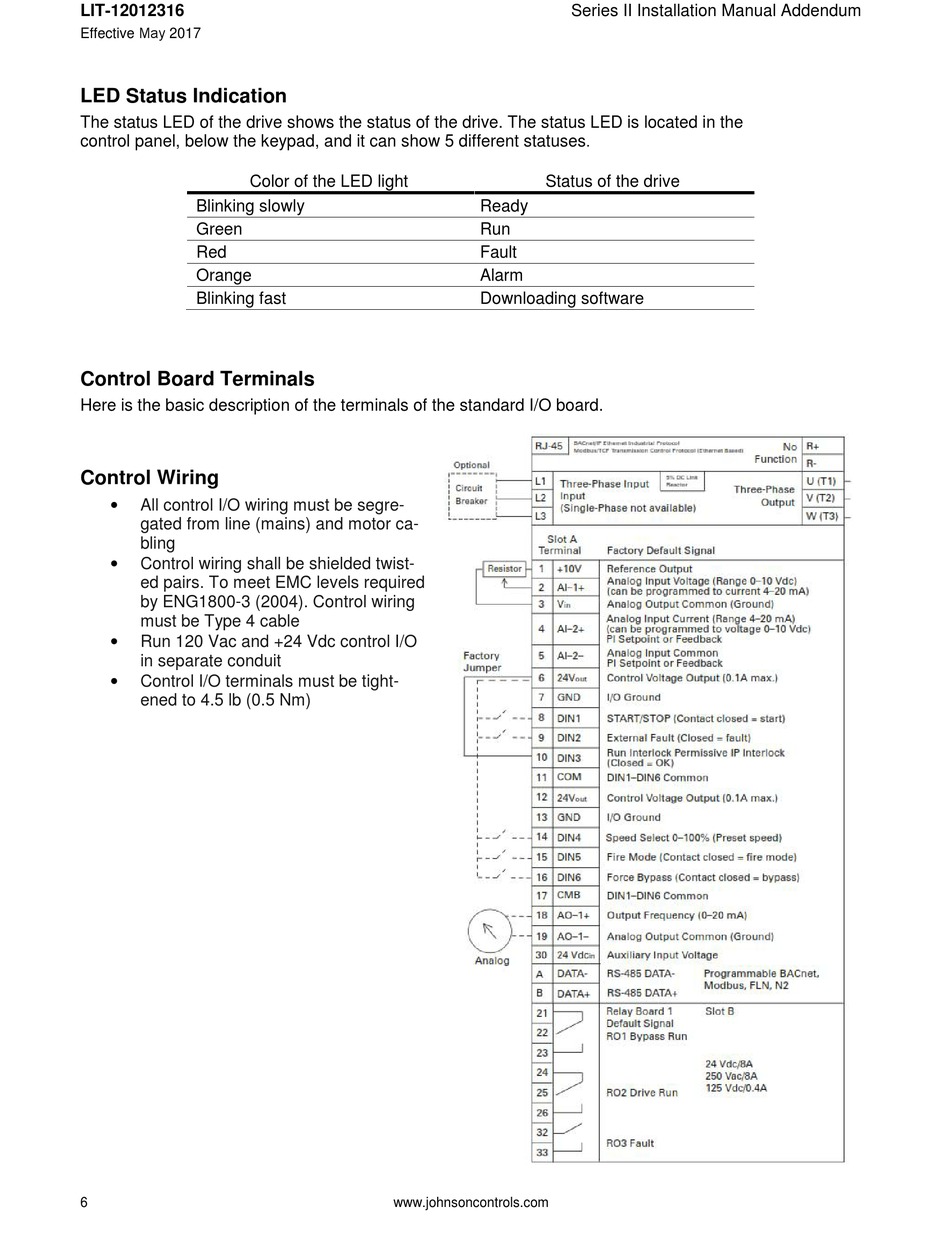

LED Status Indication

The status LED of the drive shows the status of the drive. The status LED is located in the
control panel, below the keypad, and it can show 5 different statuses
Color of the LED light
Blinking slowly
Green
Red
Orange
Blinking fast

Control Board Terminals

Here is the basic description of the terminals of the standard I/O board.

Control Wiring


All control I/O wiring must be segre-
gated from line (mains) and motor ca-
bling

Control wiring shall be shielded twist-
ed pairs. To meet EMC levels required
by ENG1800-3 (2004). Control wiring
must be Type 4 cable

Run 120 Vac and +24 Vdc control I/O
in separate conduit

Control I/O terminals must be tight-
ened to 4.5 lb (0.5 Nm)
6
Status of the drive
Ready
Run
Fault
Alarm
Downloading software
www.johnsoncontrols.com
Series II Installation Manual Addendum
.
