Sam4s ER380 Programming Instructions

Contents:
Cash register

operation manual

Keys x 12

1 small roll of paper


Pre-Setup

Remove cash register from box
Ensure all packaging materials are fully removed
Remove the cardboard protectors from cash draw
Plug register into power
Turn power on at register
Turn key to REG position
Step 1 – General Setup
1. Lift and pull the paper cover from back
2. Remove any packaging material
3. Push the blue lever on top and lift
4. Remove paper from plastic
5. Place paper in register ensuring the paper is being feed from the bottom
6. Close lid
7. Tear off excess paper
8. Replace cover
: warning message will appear. Press red CLEAR button to remove warning.
press 1 on the grey numerical keys then press clerk button
Step 2(a) – Programming PLU button descriptions on the preset buttons )
1. Using the key marked P - turn to the PGM position
2. Enter 3 0 0, and press SUB TOTAL key
3. Select the PLU you wish to program (by either
Entering the number of the PLU using the keypad and pressing the PLU key)
4. Overlay the Alpha keyboard and type your description and press the X/TIME key
5. Repeat steps 3 & 4 above for all your PLU descriptions
6. Press CASH when finished to save
Step 2(b) – Programming PLU descriptions for Barcode Scan items (optional if using
barcode scanner)
1.
Using the key marked P - turn to the PGM position
2.
Enter 3 0 0, and press SUB TOTAL key
3. Select the PLU you wish to program by scanning the Product
4.
Overlay the Alpha keyboard and type your description and press the X/TIME key
5. Repeat steps 3 & 4 above for all your PLU descriptions
6. Press CASH when finished to save

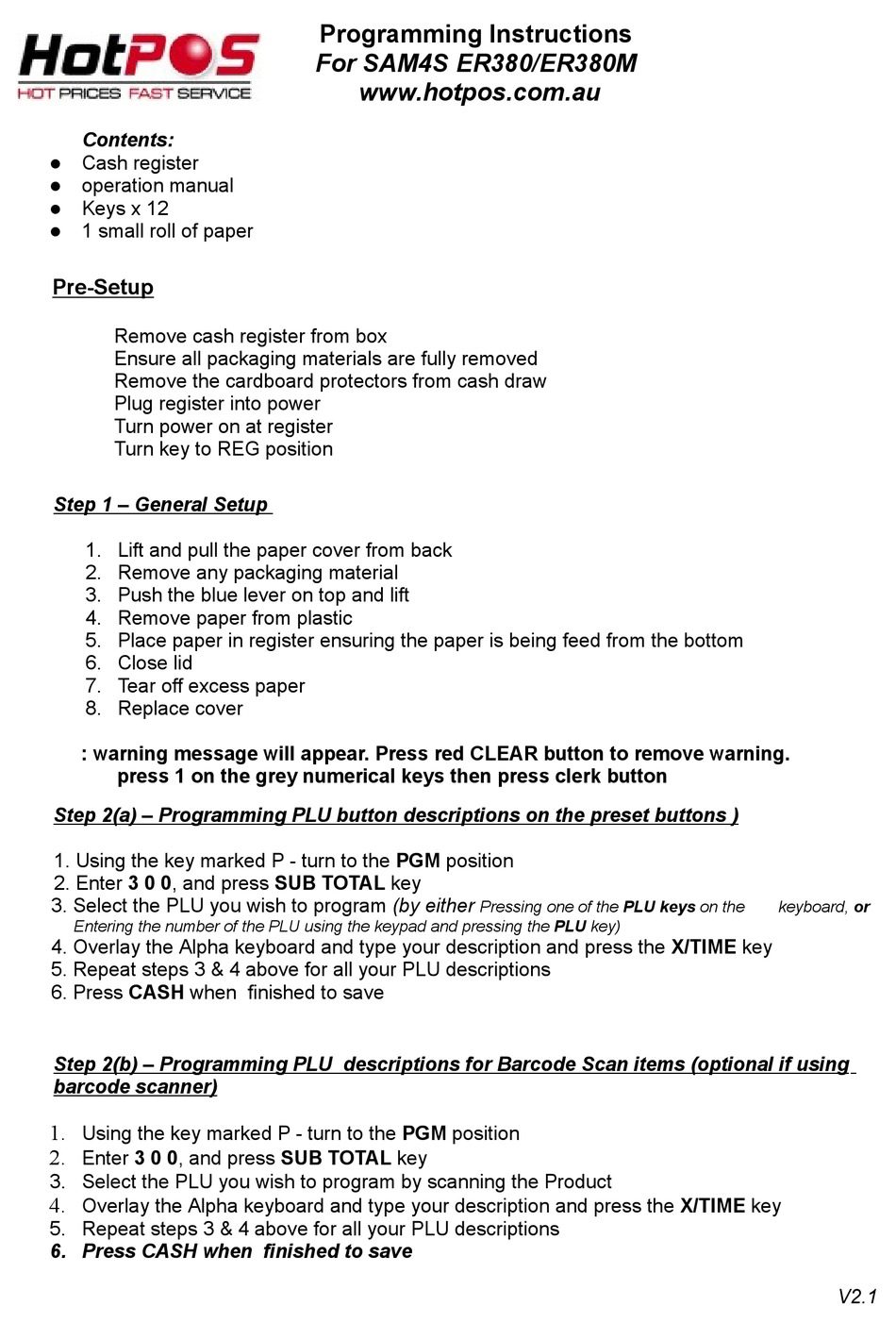

Programming Instructions
For SAM4S ER380/ER380M
www.hotpos.com.au
Pressing one of the PLU keys on the keyboard, or
V2.1
