f. Press the reset switch on the Pioneer Kit to start BLE advertisement if no device is connected or device is in Hibernate
mode (red LED is on). Otherwise, skip this step.
g. Observe the simulated Latitude and Longitude values in the HyperTerminal program.
h. On the CySmart Host Emulation Tool, click Start Scan. Your device name (configured as IPS) should appear in the
Discovered devices list, as
www.cypress.com

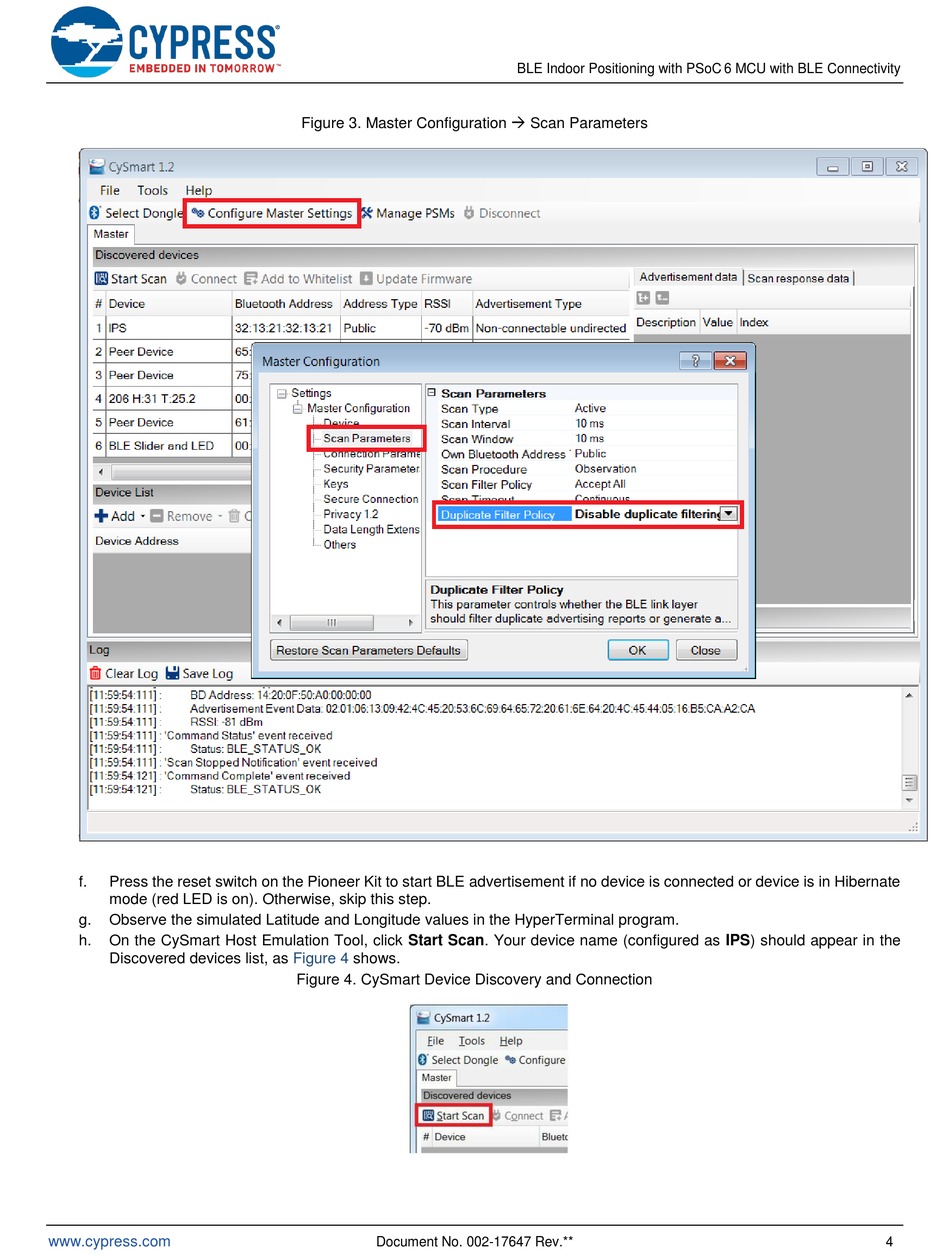

Figure 3. Master Configuration  Scan Parameters
Figure 4 shows.
Figure 4. CySmart Device Discovery and Connection
Document No. 002-17647 Rev.**
BLE Indoor Positioning with PSoC 6 MCU with BLE Connectivity
